The Interwoven Lattice: Modular LED Lamp

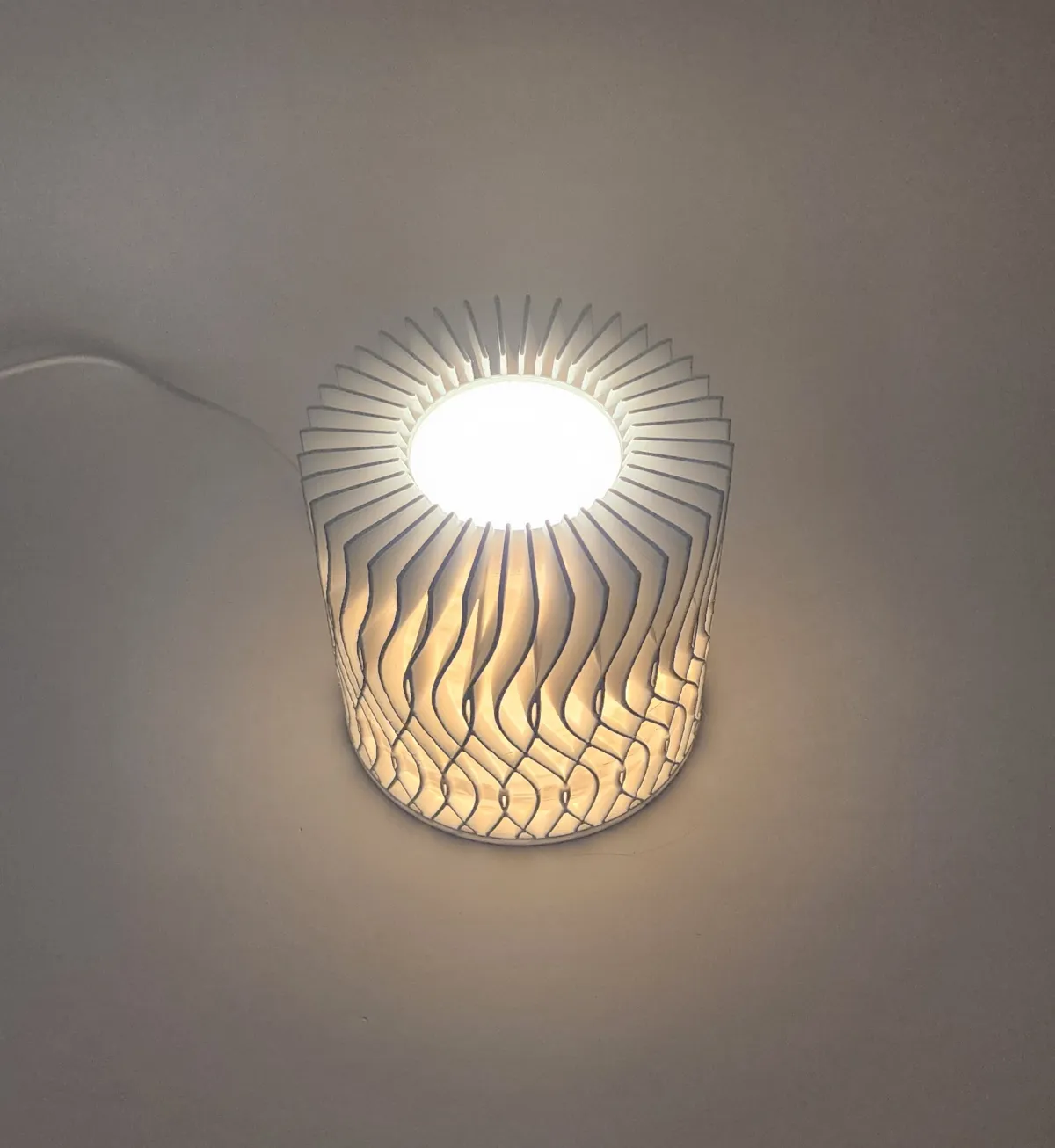

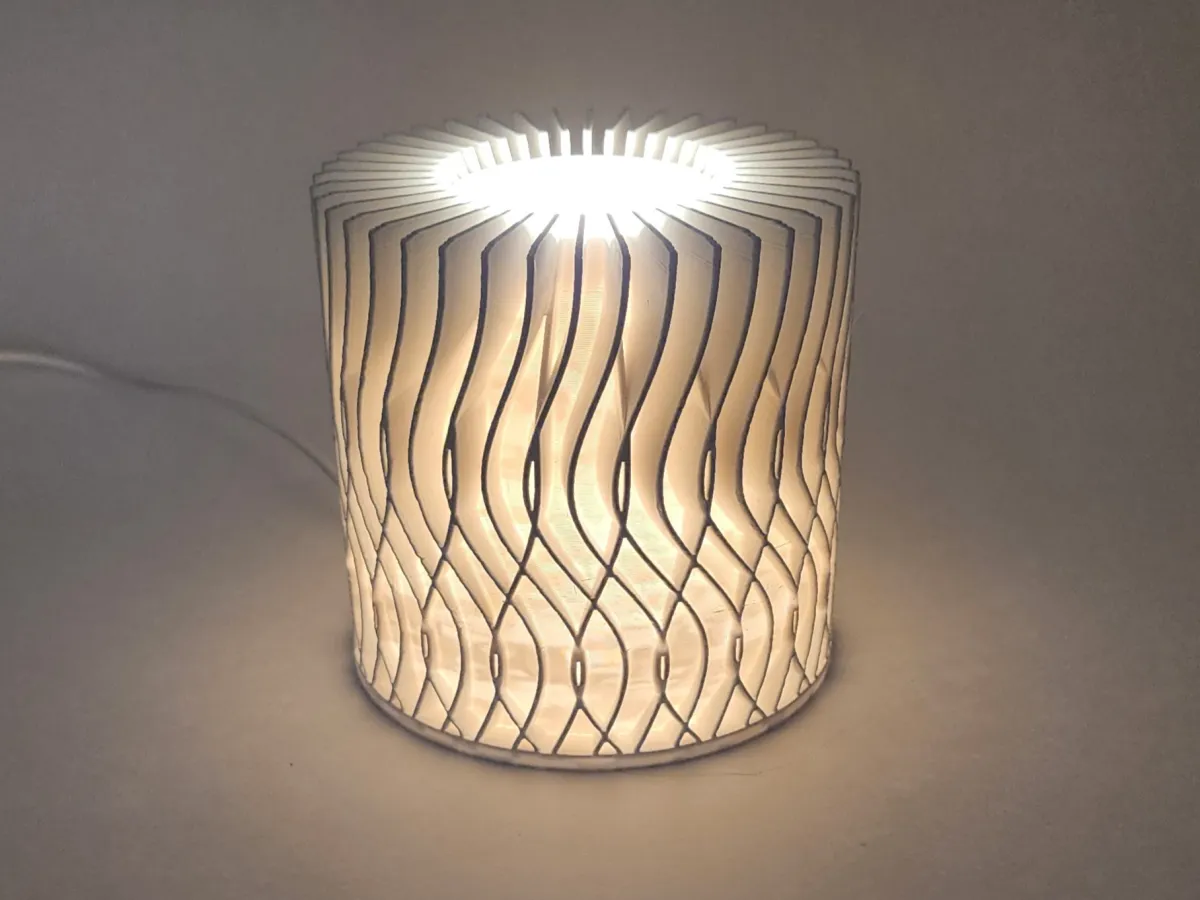

Discover the elegant structure of the Interwoven Lattice, a striking modular lamp that blends architectural precision with soft illumination. This design features a complex array of overlapping vertical and angled fins that form a dense, lattice-like pattern. When lit from within, the lamp creates a stunning grid of light and shadow, casting a intricate geometric glow across your desk or nightstand.

This model is versatile and designed specifically for low-heat lighting sources, making it perfect for two popular options:

1. USB LED Puck Light: For a clean, consistent, and bright central glow.
2. LED Fairy Lights: For a softer, diffused "glimmer" effect that highlights the depth of the interwoven pattern.

⚠️ Critical Material Note: PETG Required

To ensure safety and longevity, this model must be printed with a heat-resistant filament.

• DO NOT use PLA: The dense, lattice-style fins can trap heat from the light source. PLA has a low heat deflection temperature and is highly likely to warp or sag during use.
• Use PETG or ASA: For a reliable, long-lasting lamp that maintains its clean geometric structure, you must use PETG, ASA, or a similar higher-temperature material.

Recommended Print Settings

• Filament: PETG (Translucent White, Matte White, or Clear for different effects)
• Layer Height: 0.2mm
• Walls: 1–2 perimeters for strength
• Infill: 10% - 15% (e.g., Gyroid)
• Supports: None. This model is designed to be support-free!
• Brim: Highly recommended (5-10mm) to ensure good bed adhesion for the small surface area of the individual fins.
• Can be reduced to 70% scale and still use the puck LED

Assembly & Hardware

• Light Source: Standard 60mm (or smaller) USB LED Puck Light OR a strand of LED fairy lights.
• Setup: Thread the power cable through the built-in notch at the base. If using a puck light, press-fit it into the central opening. If using fairy lights, loosely coil them upwards for even light distribution throughout the intricate fin structure.

Tested Design: This lamp has been tested and optimized for tolerances. Ensure your PETG filament is well-dried to minimize stringing and ensure clean lines for the interwoven pattern.

Happy Printing!
