Covered Bridge Bird House and Feeder
My first attempt at making something like this. A covered bridge is something I've always loved and there is one in VT that is very similar to this model. I hope you enjoy this one as much as I enjoy the real one.
Features
- Dovetails to help with assembly: Not meant to hold it together without glue but they help to line up the pieces and hold them in place while gluing.
- Bird feeder can be removed for easy cleaning: The bird feeder slides in and out easily but has a snug fit so it doesn't move when birds land on it.
- Pieces are labeled: Pieces can look very similar so I labeled each one if it isn't obvious where it goes
Assembly Instructions - See pics for visuals if needed

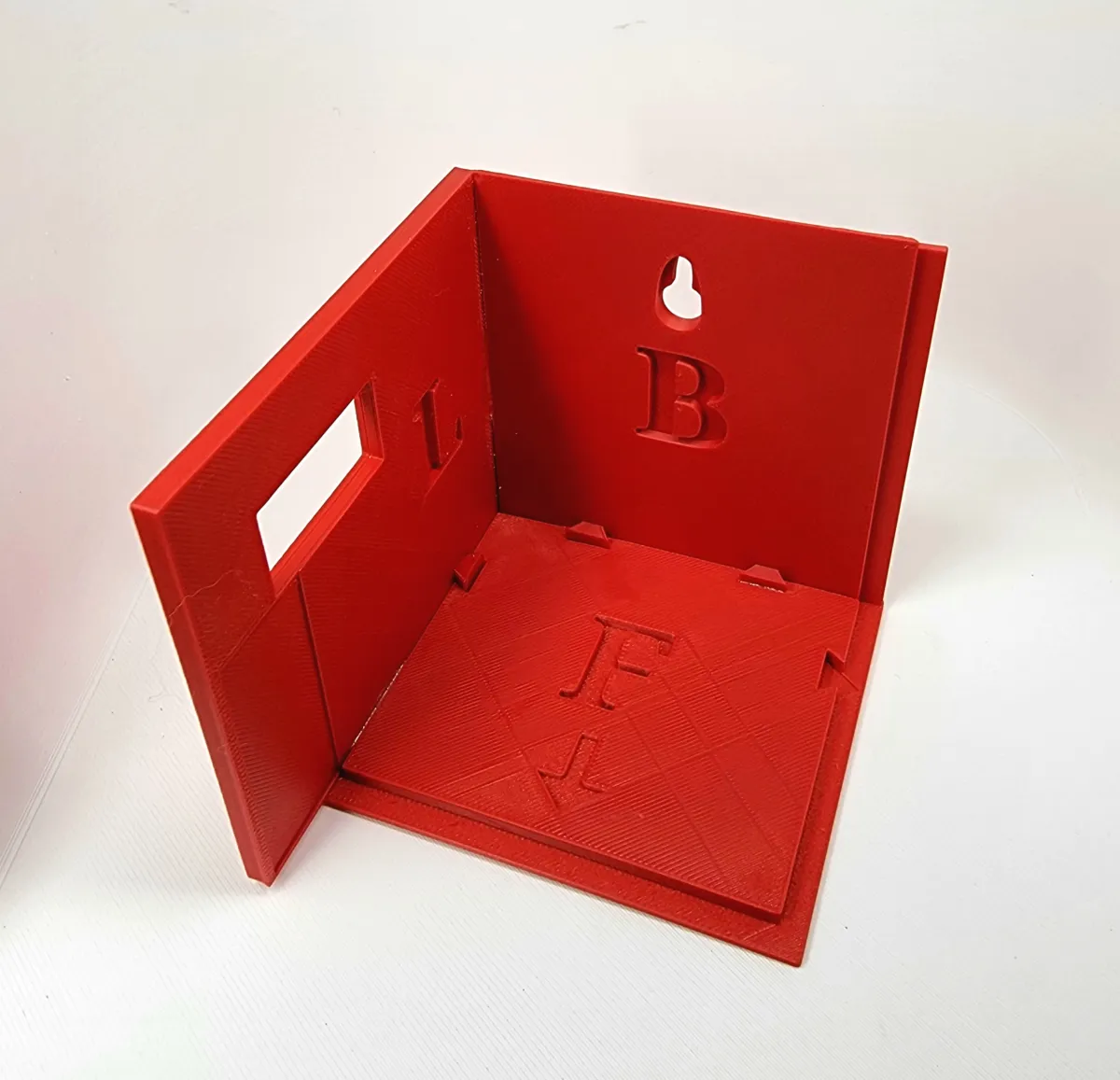

- Easiest to start by attaching the back wall to the floor
- Attach the 2 side walls
- Attach the front wall
- The black piece for the front slides in from the top
- Lay the box on its back so it's level and then glue the back peak
- Lay the box on it's front and glue the front peak
- The roof has "R" and "L" on it but it doesn't matter which way you turn it
- Glue the windows in
- Glue the hole frame
- Glue the perch
- Mount it using the provided hole or set it on a table or other flat surface
Materials Needed
- Super glue
- Screw to mount it
Note: If you enjoy this model, please consider sharing your makes! I'd love to see how your Bat-Signal looks illuminated at night.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Remixes must be shared under the same license
Models(14)
Bridge_Window_2x.stlDesigner9.55 KB
2026-04-25
Bridge_Perch.stlDesigner37.58 KB
2026-04-25
Bridge_Bird_Feeder.stlDesigner70.39 KB
2026-04-25
Bridge_Hole_Frame.stlDesigner105.36 KB
2026-04-25
Bridge_Peak_Front.stlDesigner27.62 KB
2026-04-25
Bridge_Peak_Back.stlDesigner2.04 KB
2026-04-25
Bridge_Front_Black.stlDesigner78.01 KB
2026-04-25
Bridge_Wall_Front.stlDesigner41.10 KB
2026-04-25
Bridge_Wall_Back.stlDesigner141.20 KB
2026-04-25
Bridge_Wall_Left.stlDesigner23.23 KB
2026-04-25
Bridge_Wall_Right.stlDesigner47.74 KB
2026-04-25
Bridge_Floor.stlDesigner29.96 KB
2026-04-25
Bridge_Roof.stlDesigner424.20 KB
2026-04-25
Covered_Bridge_Bird_House.3mfDesigner351.15 KB
2026-04-25
