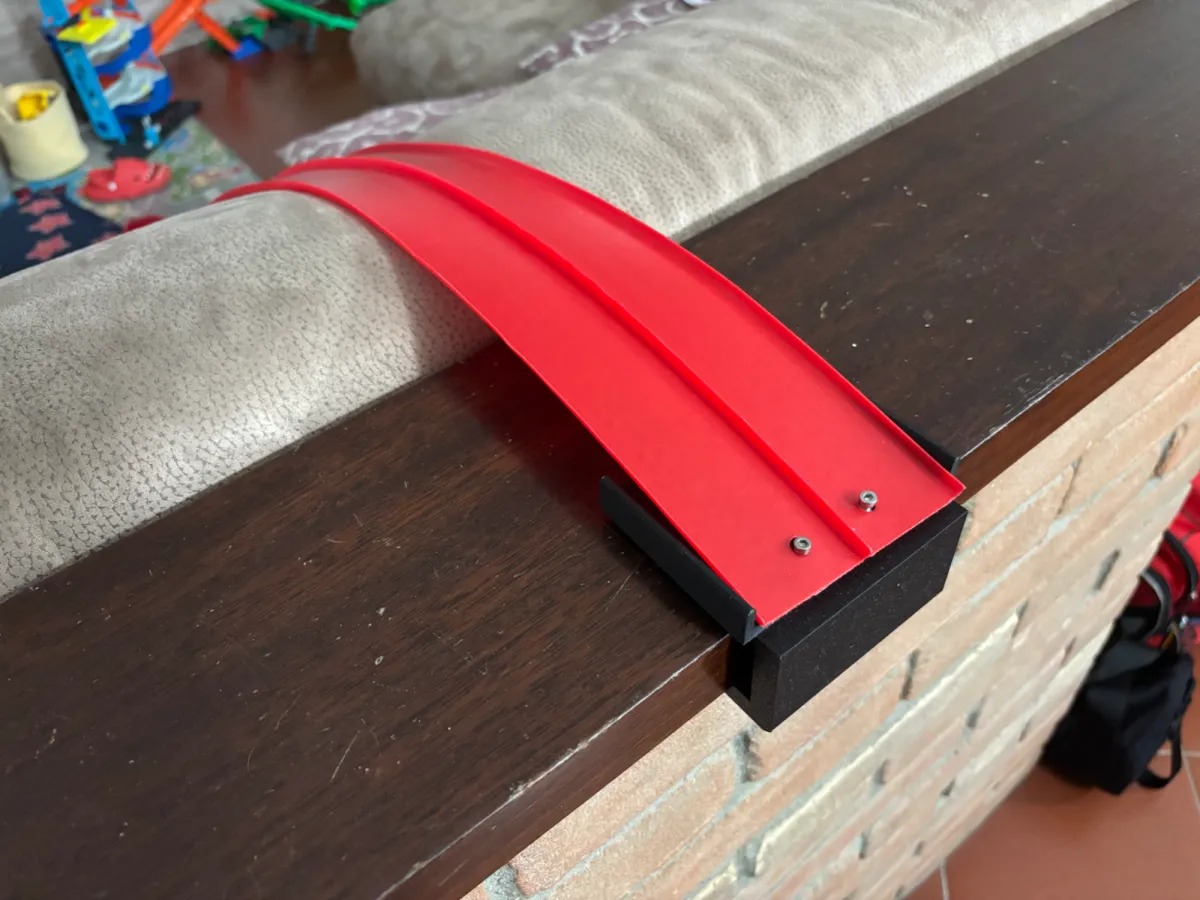

🏎 FlexTrack Clamp Mount — Modular Slot Car Track Holder

Keep your flex track exactly where you want it — no tape, no improvised solutions, no frustration.

If you've ever dealt with a flex track that shifts mid-race or a setup that takes forever to assemble and disassemble, this is the mount you've been missing. Designed in two modular pieces, it works on shelves, chairs, tables, and anywhere else you need a solid anchor point.

🧩 What's in the set:

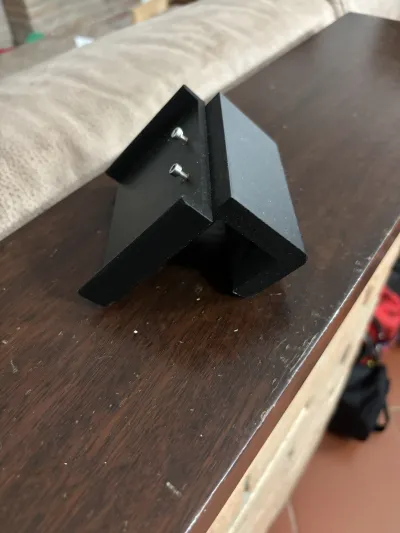

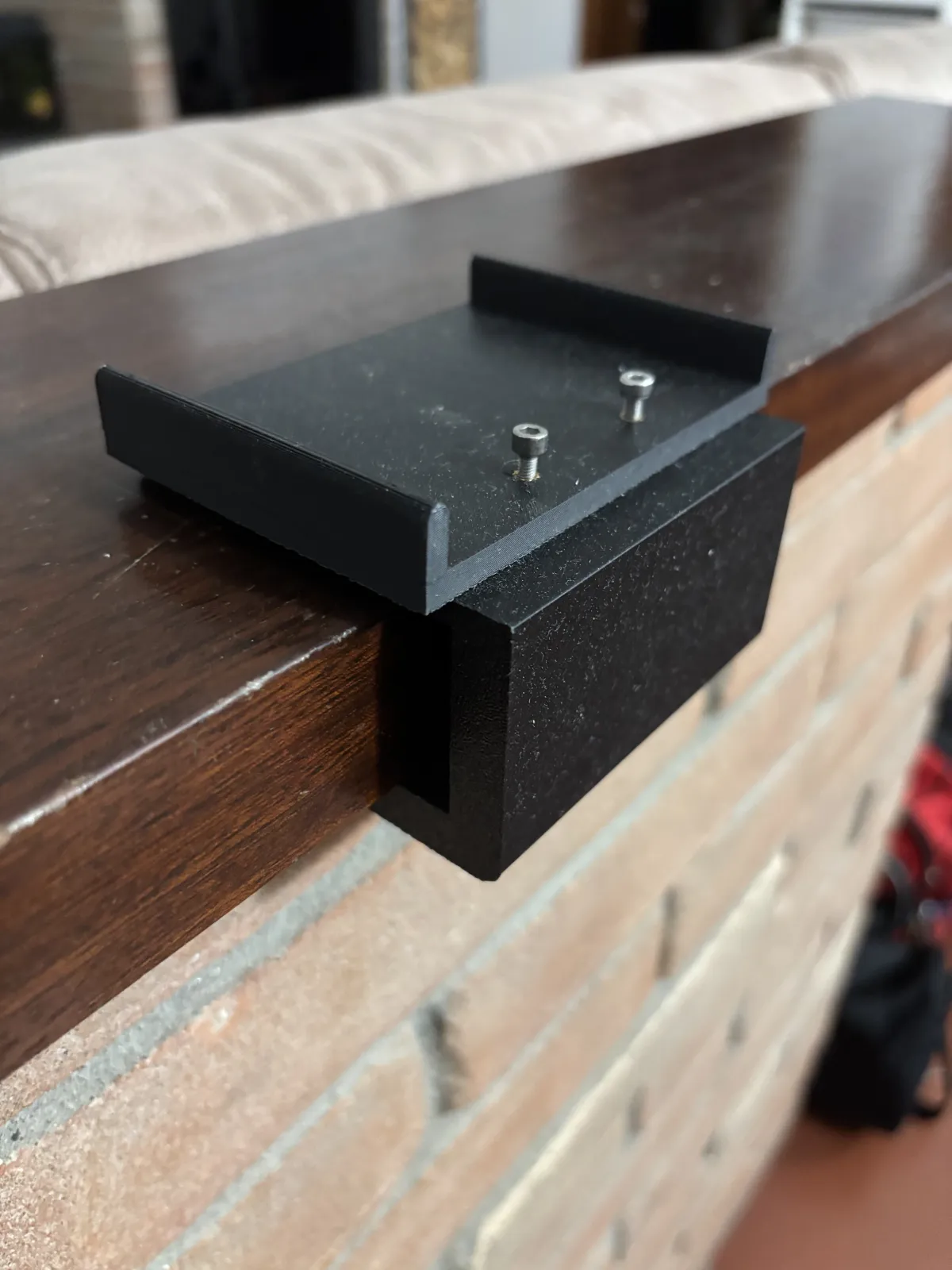

• Track Clamp (Top Unit) — The piece that actually holds your flex track in place. Two M3 socket head screws thread into brass heat-set inserts and align perfectly with the suction cup holes on the track, locking it down without any modification. Four additional heat-set inserts on the bottom let you connect the second piece — or stack and expand the system as you like.

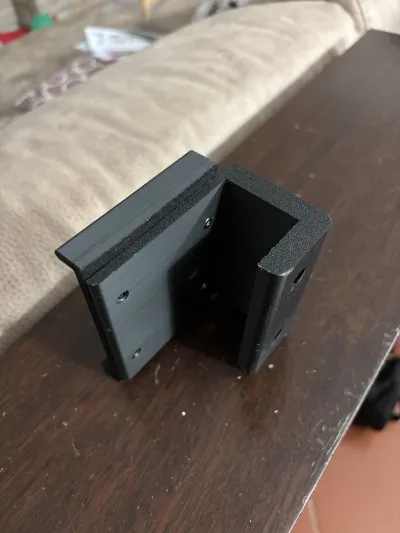

• Universal Base Bracket — Designed to clamp onto a shelf edge, chair rail, or table top. Just bolt it to the Track Clamp with M3 screws and you're ready to race. No tools, no permanent mounting, fully reversible.

🔧 Assembly — Track Clamp:

1. Install 2 M3 brass heat-set inserts on the top.
2. Install 4 M3 brass heat-set inserts on the bottom.
3. Align the top screws with the suction cup holes on your flex track and tighten.
4. Attach the base bracket of your choice with M3 screws from below.

Hardware required:

• 6× M3 brass heat-set inserts
• 2× M3 socket head screws (length depends on track thickness — measure before printing)
• M3 screws for bracket connection (length depends on setup)

🖨 Printing Tips:

• Material: PETG recommended for flexibility and durability.
• Walls: 3 perimeters for solid insert retention.
• Infill: 15% Adaptive Cubic.
• Orientation: Print flat for maximum layer strength at the clamping points.

📦 Compatible with standard flex track suction cup hole spacing. Always verify dimensions before printing.
