  • eachine wizard x220

A part designed to elevate the top plate and replace the VTX with an o4 Lite (you’ll also need to print a mounting plate to align the screw holes), while preventing grass from entering the frame.

Two variants are available:

  • “Basic” version without any decorative patterns
  • “More refined” version featuring three grooves along the side (though these supports are slightly more challenging to remove)

There’s no specific orientation required for this part.

Requires M3 × 16 mm screws

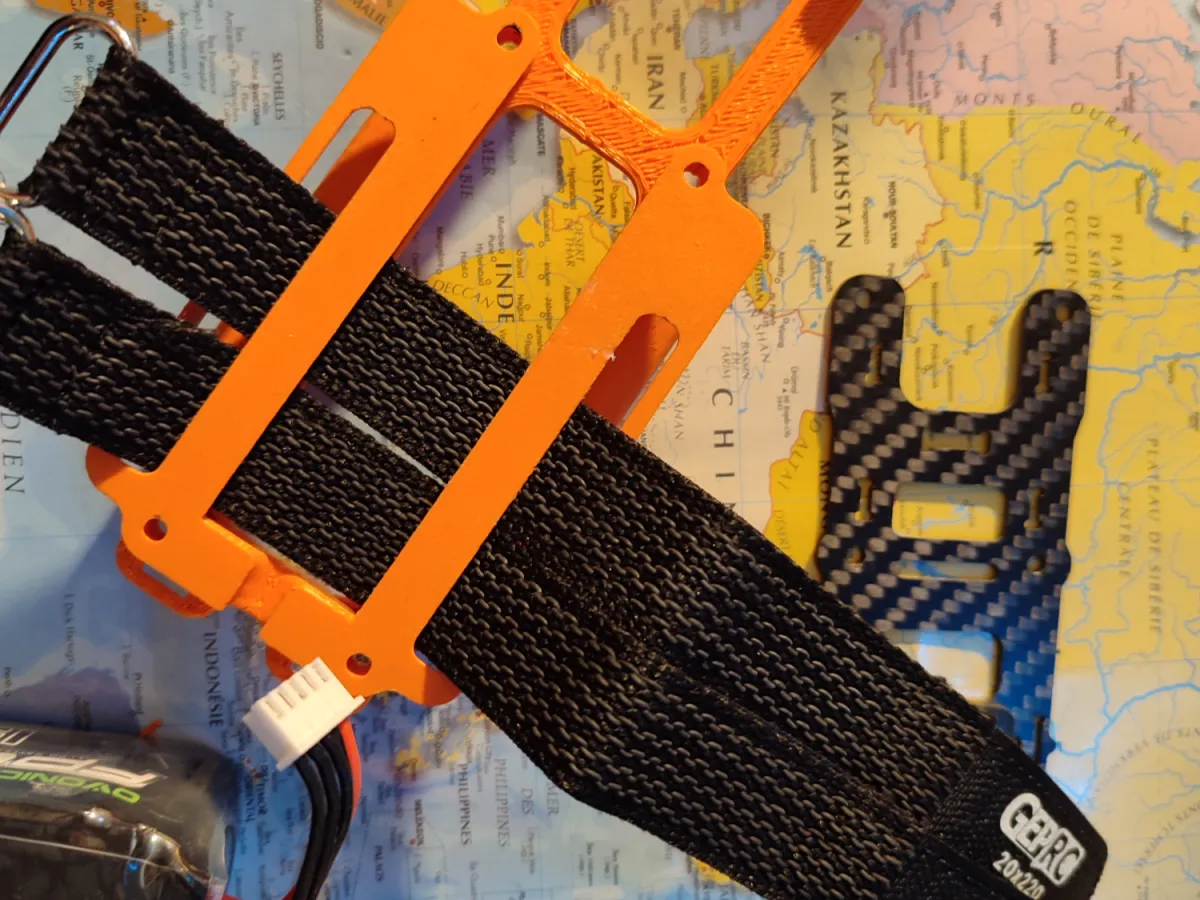

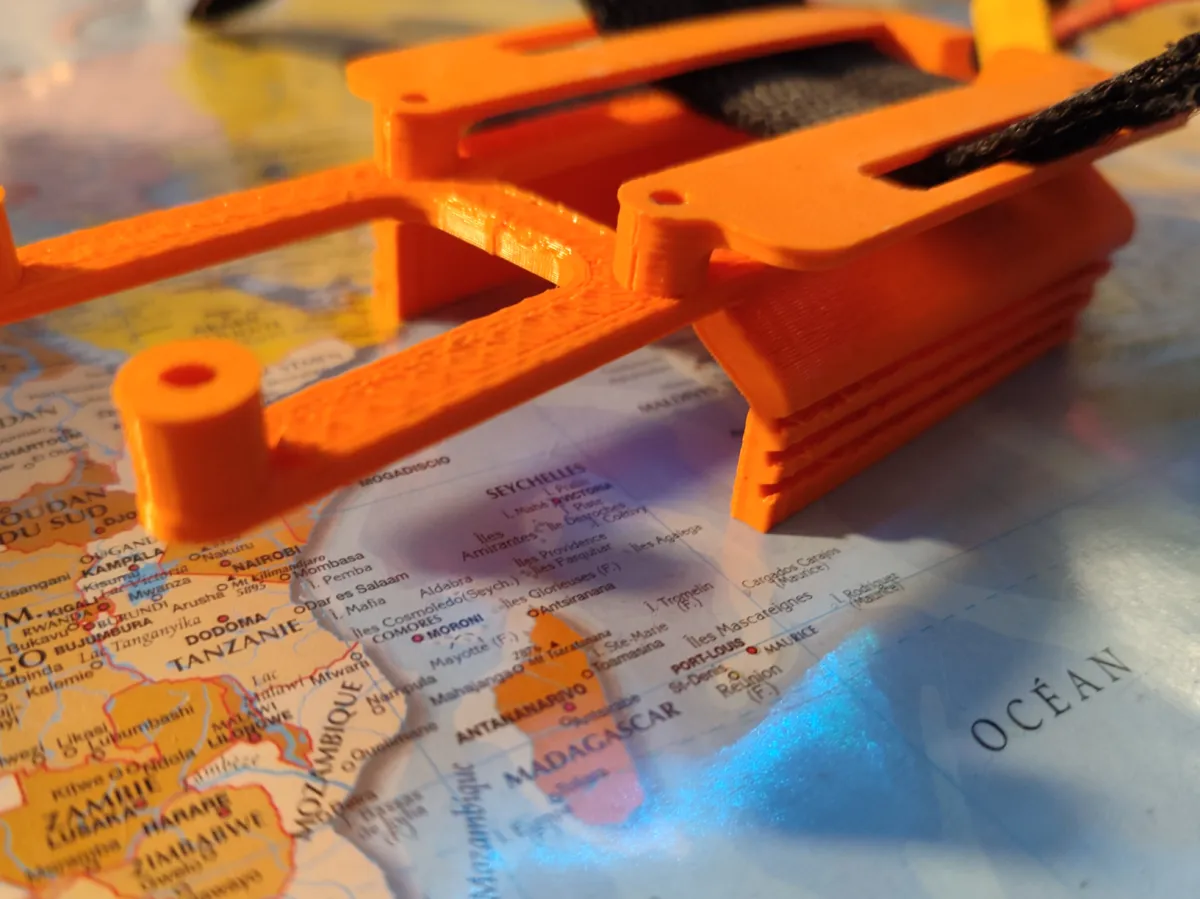

The part shown in the photo is Version V1.

V2: Adapted for 5‑inch propellers (compared to 4.8 inches on Version V1)

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    Vis M3*16mm
    6

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted
