Thickness Gauges Version 2.0 - Non Stacking
Print Profile(2)
  • stacking base

    2-disc

    PLA

    Designer
  • non-stacking base

    2-disc

    PLA

    Designer

2

1

9

2

Released 2026-04-21
Details
Files(2)
Makes & Comments (0)

What is this and why did I make it?
When I design, I find that I would make walls too thick, so I decided to print this little measuring tool kit. It doesn't take up much space in the drawer and I find it to be useful!



These are not meant to be 100% dimensionally accurate and obviously vary based on each printer's calibration. The main goal is to have a tangible item to pick up and figure out how thick to make walls or parts of your designs.



Sizes included:
0.5 mm, 1 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, and 5 mm gauges!



Key features of the guides:

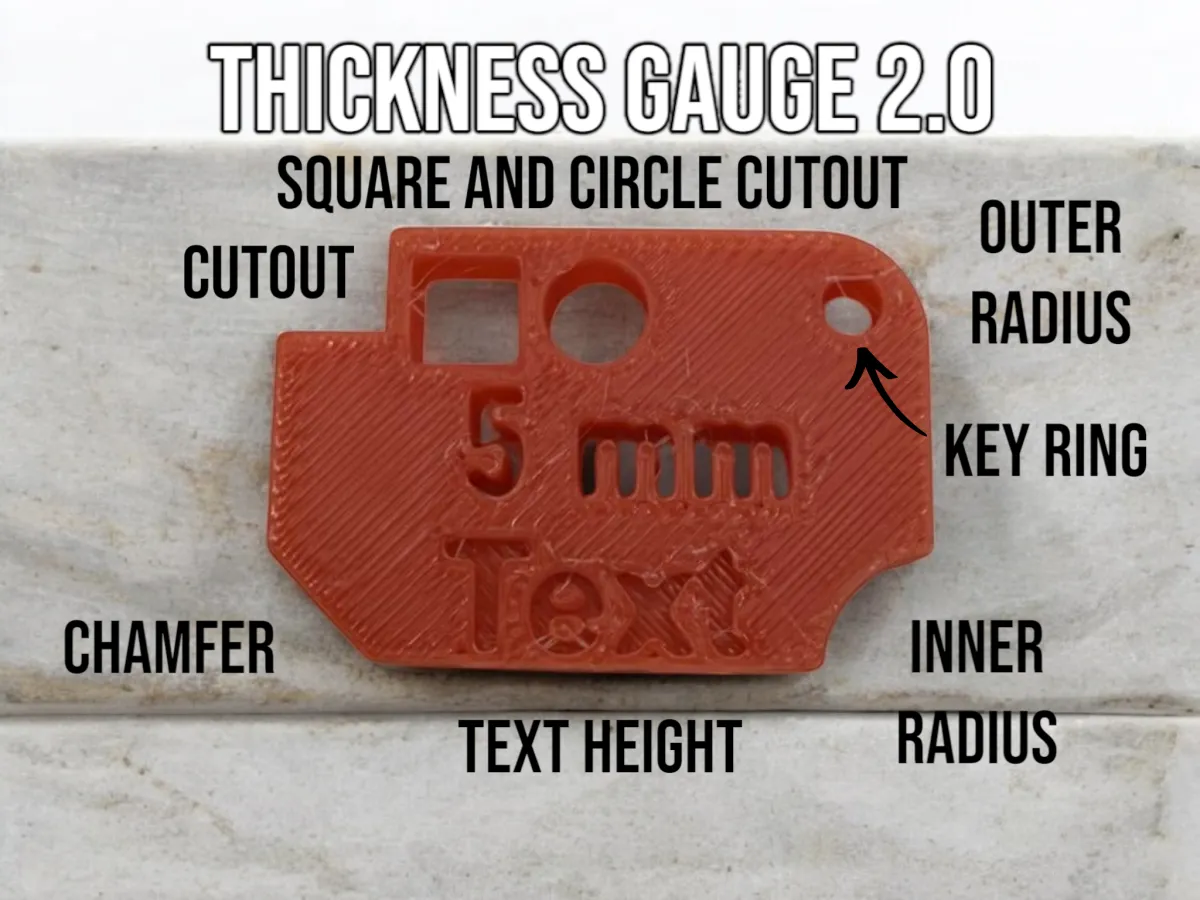

-Thickness = features

-Inner/Outer radius

-Cutout (Thickness x thickness)

-Square hole (Thickness x Thickness)

-Circular hole (Diameter = Gauge Thickness)

-Keyring holes (3mm)

-Text height



Profiles

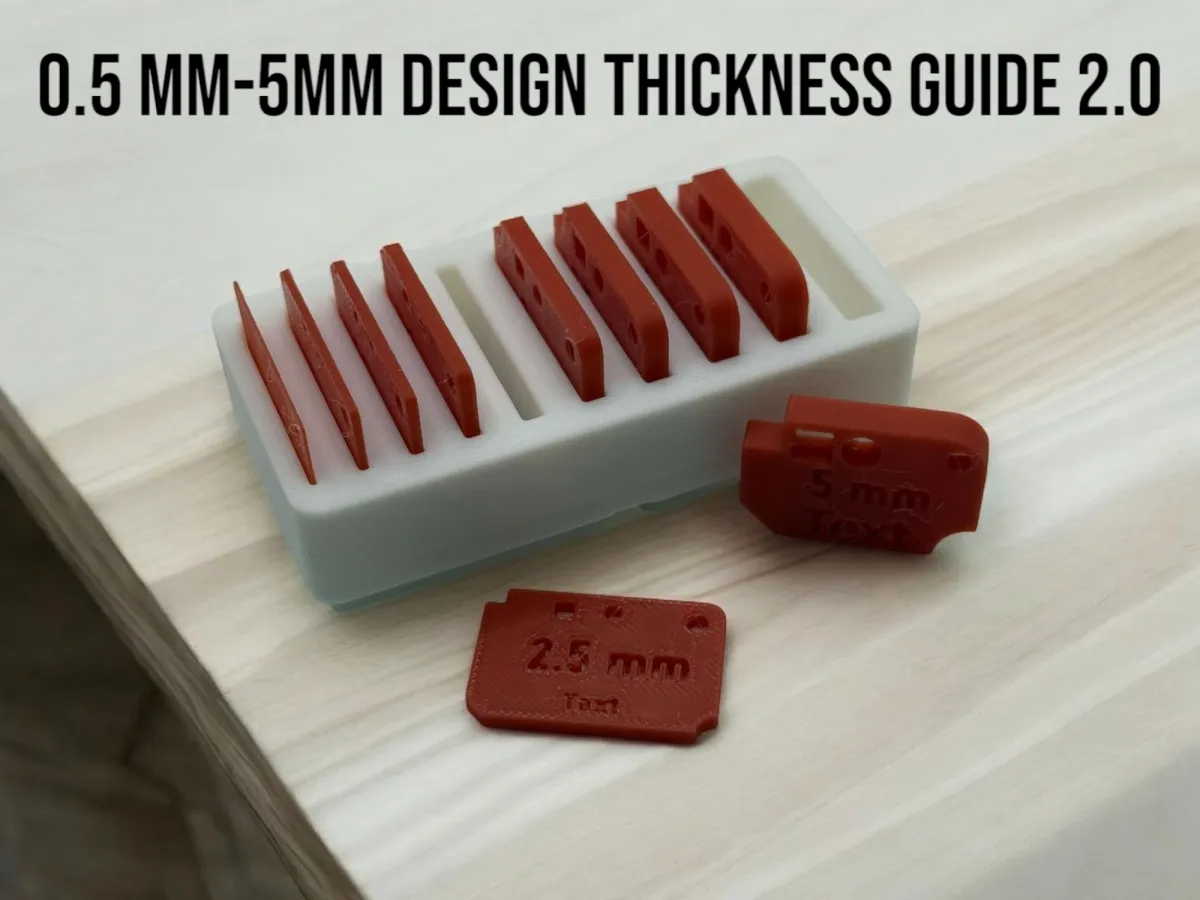

There are stackable and non stackable gridfinity bins
There are gauges with and without extruded posts


Lid
https://makerworld.com/en/models/1059434-anylid-click-lock-stackable-lid-for-gridfinity?from=search#profileId-1047493

Customize it using these settings



Lid settings

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
