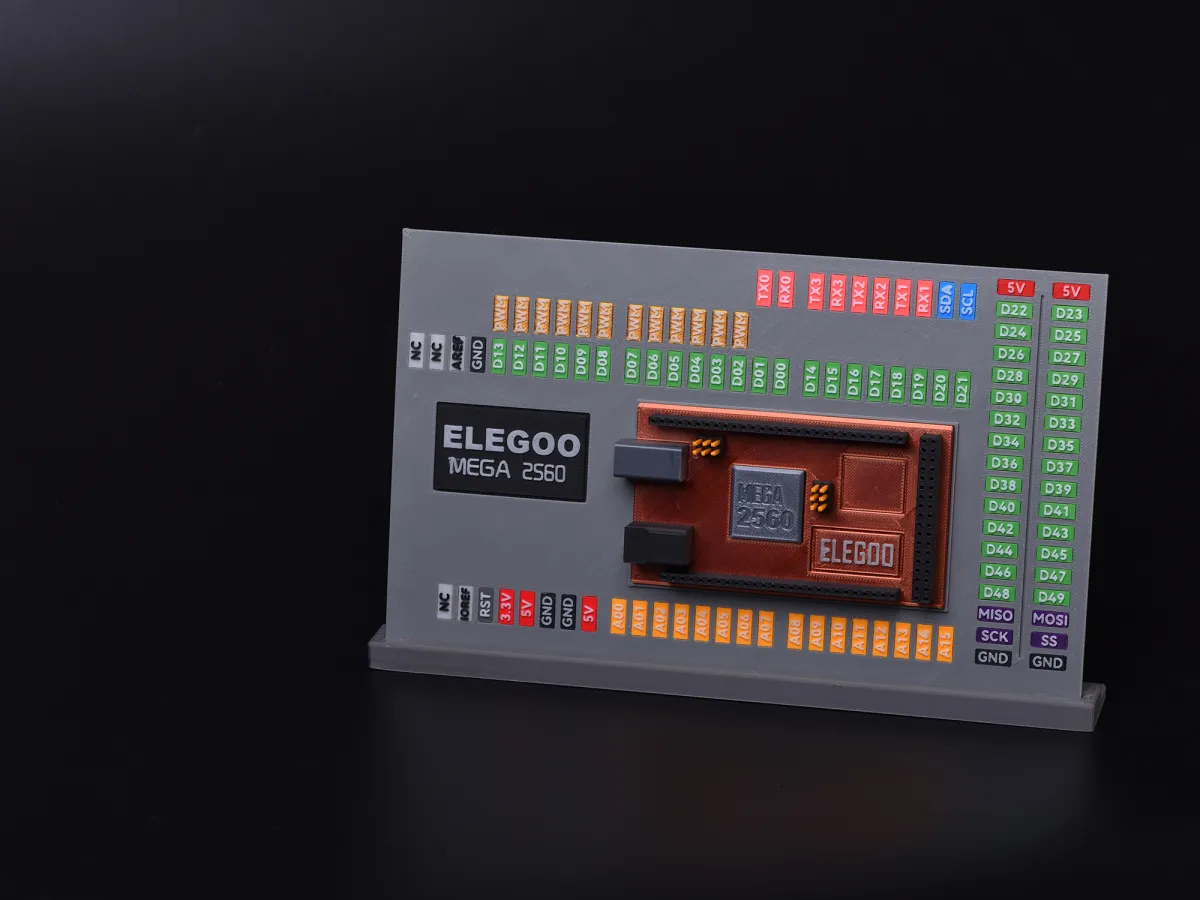

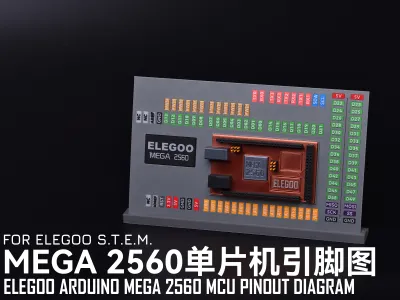

This is a pinout model specifically designed for the ELEGOO microcontroller series, making it easier to understand the function of each pin when working with these MCUs.

This model is for the [Arduino MEGA 2560].

Here’s the official pinout diagram:

Features:

• Perfectly matches the official schematic
• Clearly shows the function of each pin
• Comes with a base for stable desktop placement

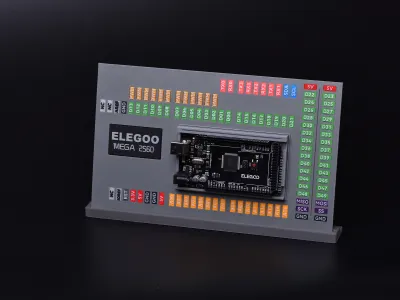

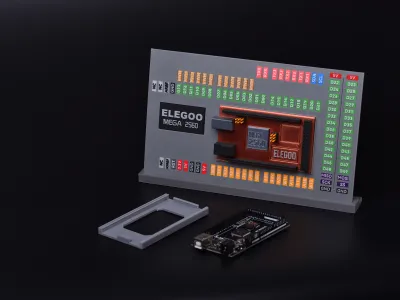

• Includes an adapter that allows you to swap in a real MEGA 2560 (see the last image)
• Non-printed bill of materials:
  • If you’d like to purchase this ELEGOO MCU, here’s the link: 【Click to go to the official ELEGOO Amazon page】
  • 4mm × 2mm round magnets: 6 pieces
• Color scheme reference:Important! Since this is a series of four models, we recommend using the same color coding for pins within the same series to facilitate quick identification
  • Material selection: Tri-color PLA
  • Color correspondence:
    • Power – red background, white text
    • Ground – black background, white text
    • GPIO – green background, white text
    • PWM – gold background, white text
    • ADC – orange background, white text
    • UART – pink background, white text
    • I2C – blue background, white text
    • SPI – purple background, white text
    • RST – gray background, white text
    • Other (REF/NC/DAC, etc.) – white background, black text
