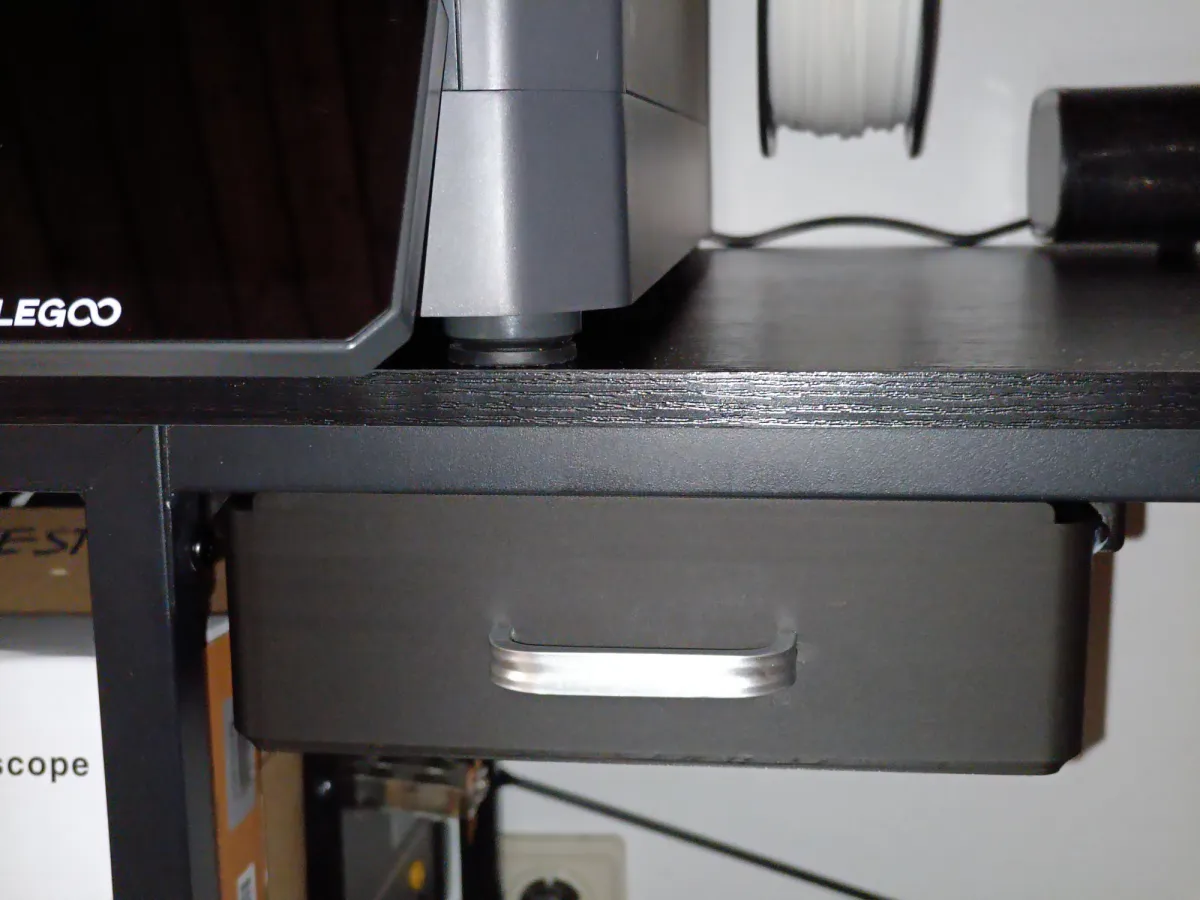

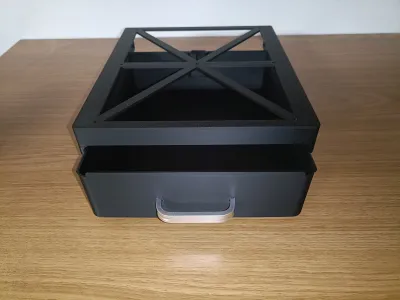

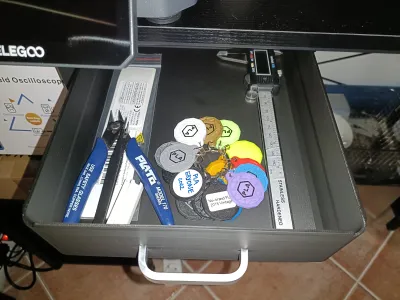

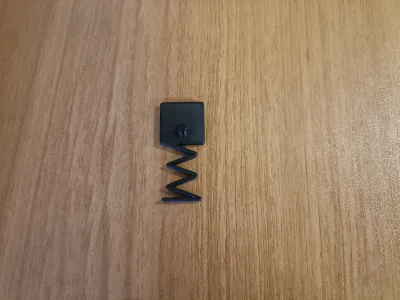

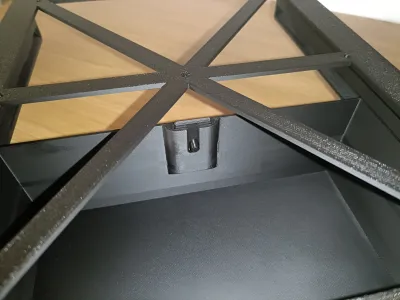

This is a drawer I designed for my desk. It features a spring-loaded stopper that prevents the drawer from falling out when fully opened, while still allowing you to press it down to remove the drawer if needed.

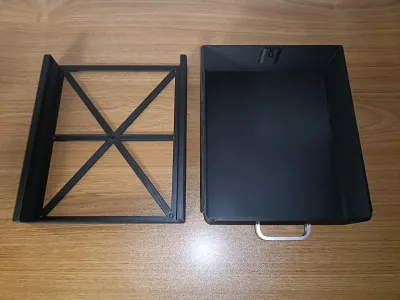

The sliding rail can be screwed to the underside of the desk (7 × M3 screws). However, since my desktop is quite thin, I used strong double-sided tape instead: https://s.click.aliexpress.com/e/_c3nF2gLL



The front holes are spaced 64 mm center-to-center, allowing you to use one of these inexpensive handles: https://s.click.aliexpress.com/e/_c2JpBfrn You will need two short M4 screws.

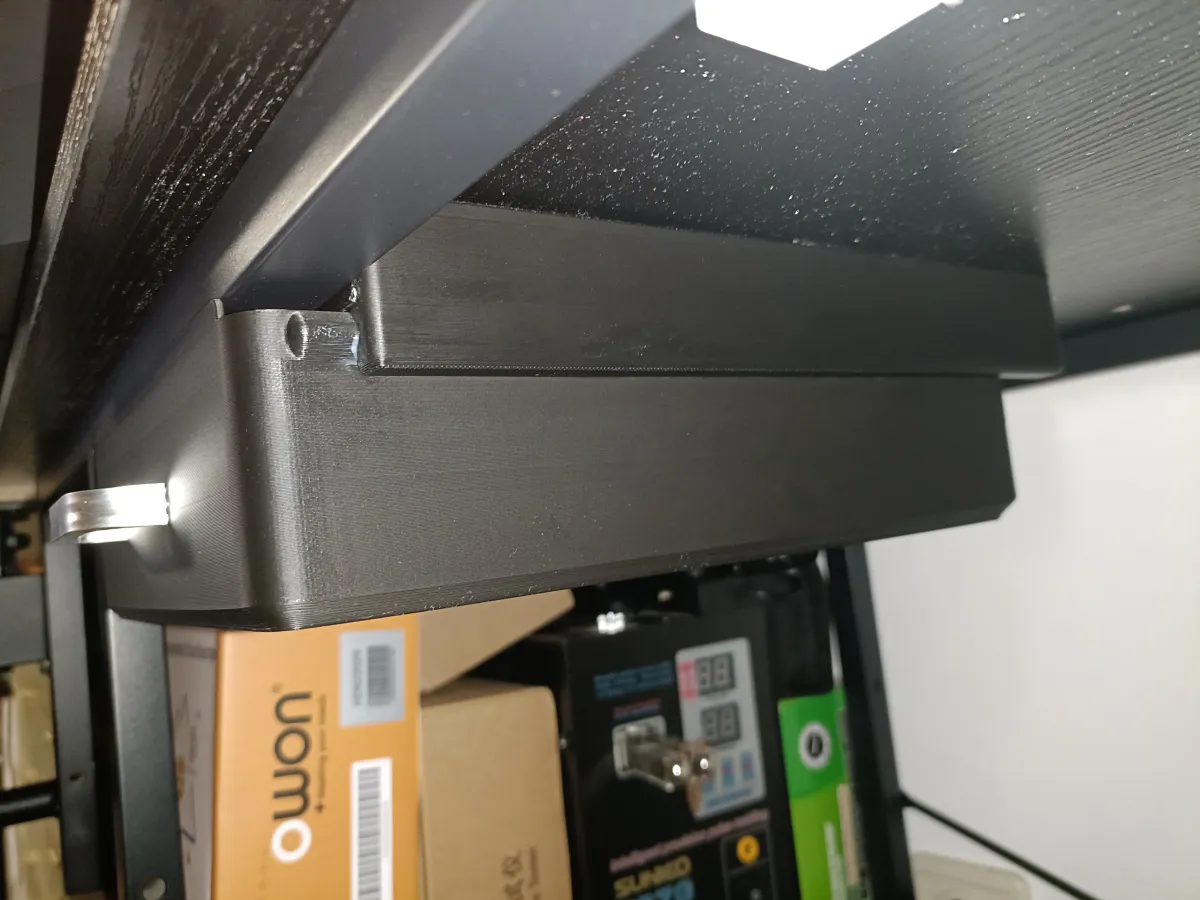

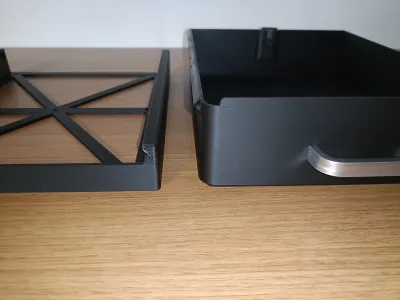

The main drawer file includes two bodies: the drawer itself and a top stopper. The stopper is optional and can be removed in the slicer, as the sliding rail already has a rear stopper. I included it because my desk has a 20mm square tube at the front, which I use as a stop to prevent the drawer from sliding all the way back (see the photo of the underside of my desk).

While the drawer slides quite freely you can use a little grease to make it smoother, i used this one https://s.click.aliexpress.com/e/_c3W8vBcZ



Bill of materials

  • Name
    Quantity
    Notes
  • 1
    Double sided sticky tape
    1
    https://s.click.aliexpress.com/e/_c3nF2gLL
  • 2
    Handle
    1
    https://s.click.aliexpress.com/e/_c2JpBfrn
  • 3
    Short screws for the handle M4
    2
  • 4
    M3 wood screws (if not using double sided sticky tape)
    7
    7 are probably overkill, 4 are probably enough

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Models(3)

  • model file image
    drawer.3mfDesigner

    71.12 KB

    2026-04-16

  • model file image
    sliding_rail.3mfDesigner

    83.69 KB

    2026-04-16

  • model file image
    spring_stop.3mfDesigner

    61.49 KB

    2026-04-16
