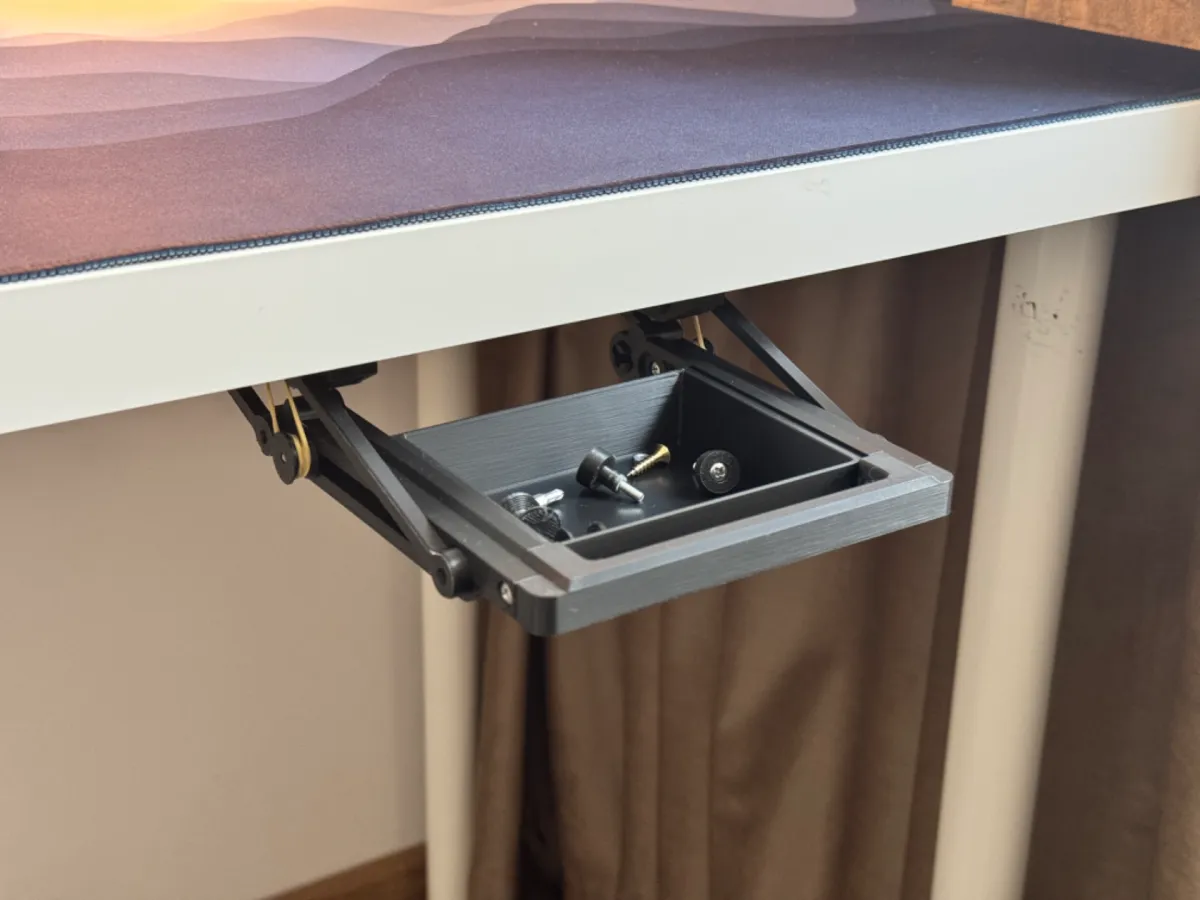

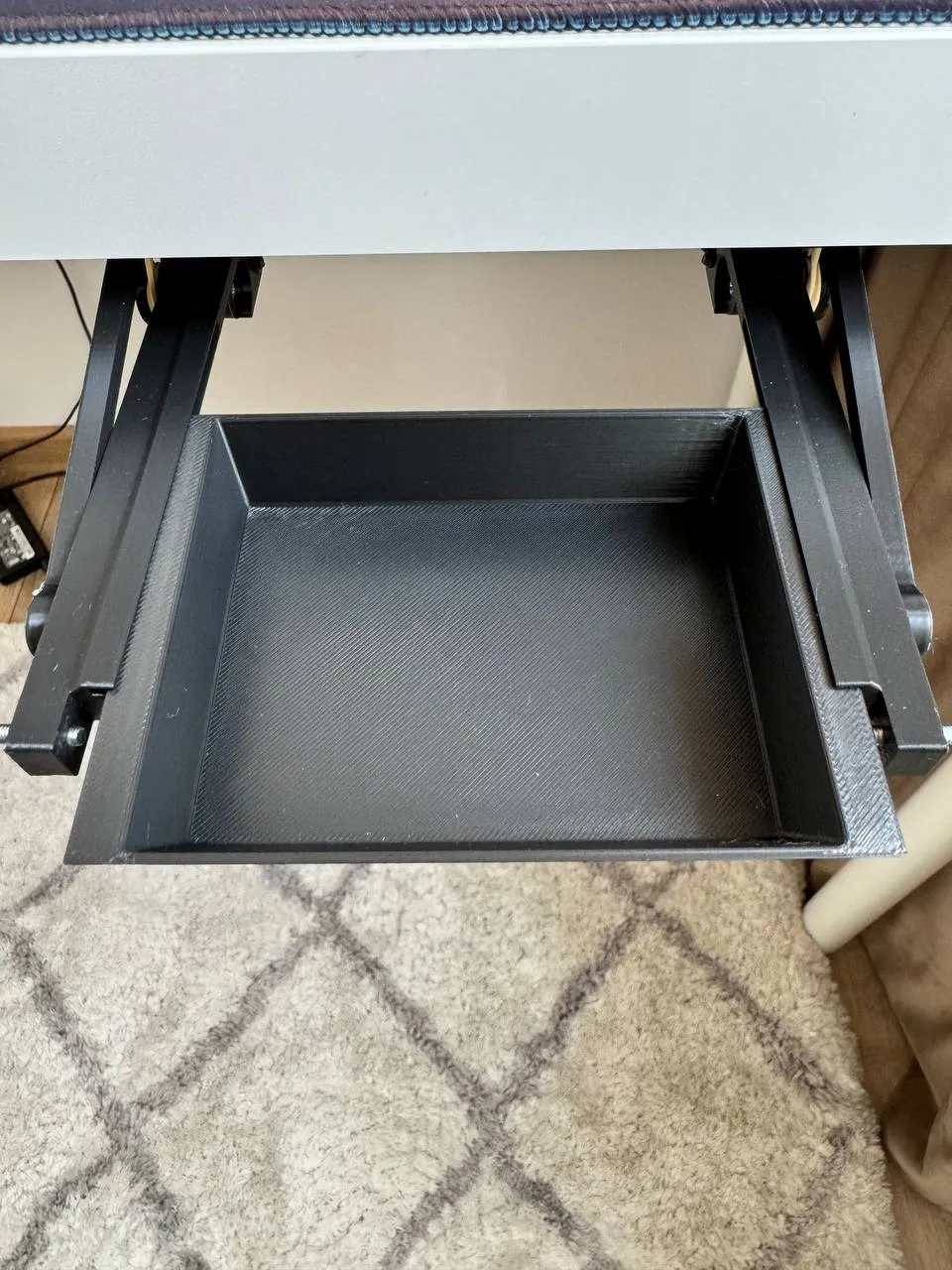

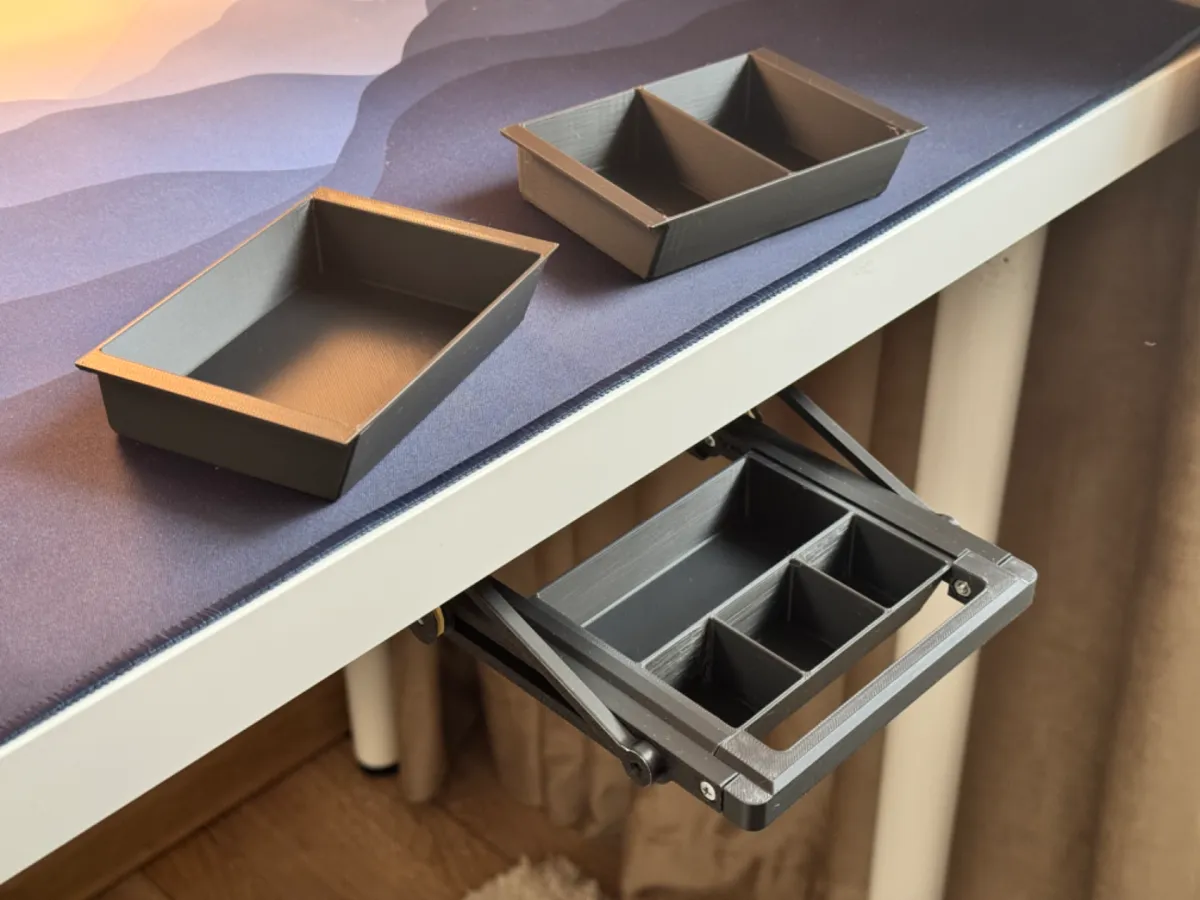

Cool under desk drawer with pull mechanism designed to store small parts under your desk. You can add as many drawers under your desk as you want.

1) Key features:

• Fast assembly
• Functional design
• Stays hidden
• Easy handle
• Common materials

2)List of parts:

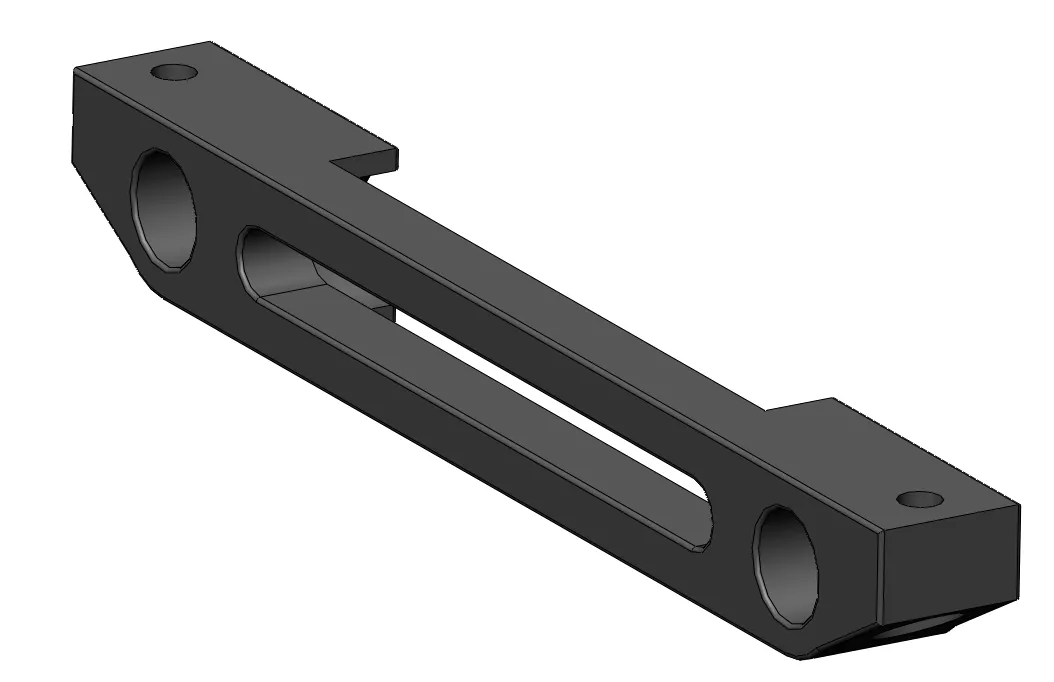

1. x2 parts (Left and Right) to be screwed in bottom of table

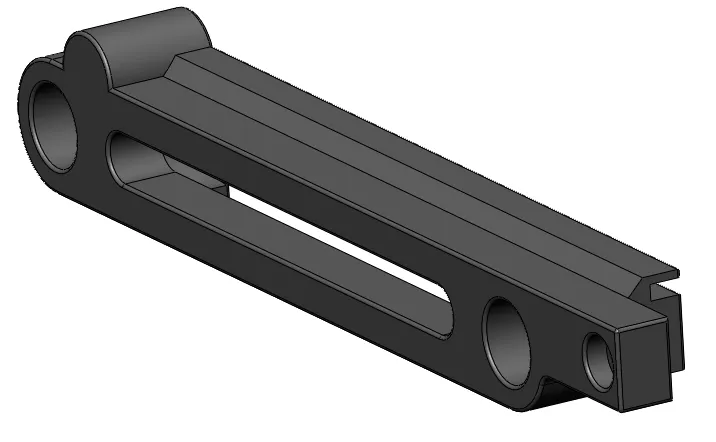

2. x2 parts (Left and Right) to hold tthe tray



3. x4 parts to assembly parts above together





4. x4 parts of sliders



   5. x1 handle part



   5. x6 M3 x 16 Screws



   6. x2 M3 Nuts

   7. x2 Rubber bands for sliding mechanism







   3) Assembly guide

   1. First, download and print all the parts. Make sure you have the parts for the right and left side of the drawer.

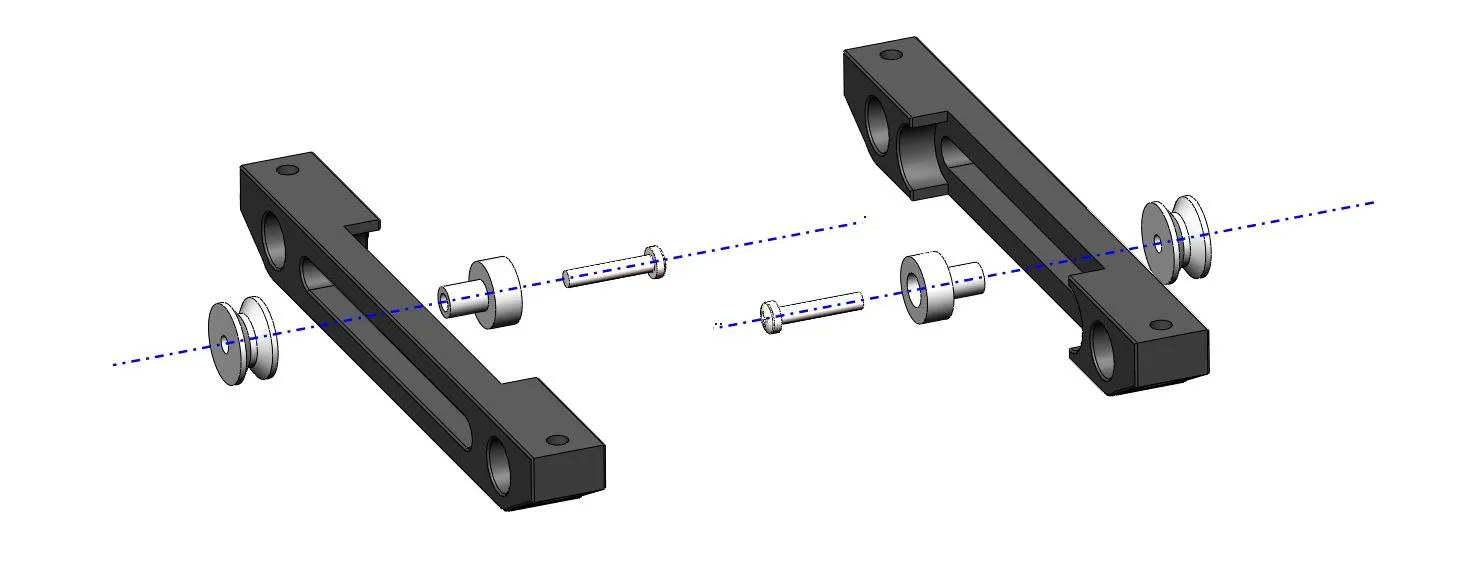

   2. Assemble the sliding parts with the help of screw m3.

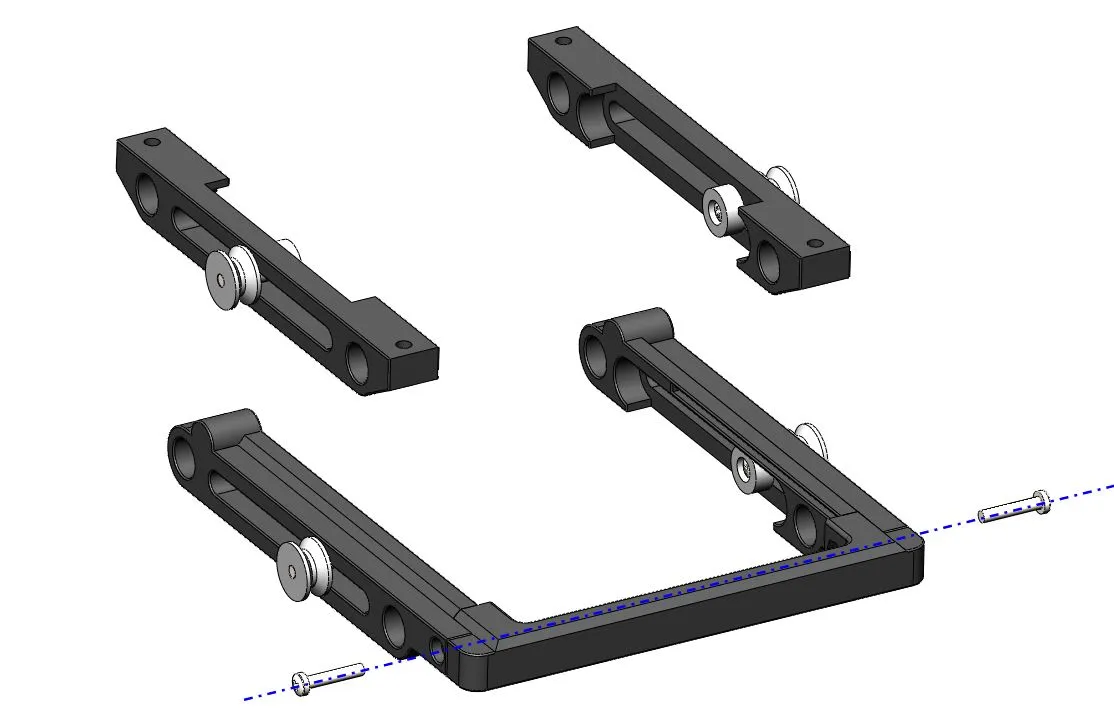

      c. Assemble the suspended parts using the handle and m3 screws and nuts.

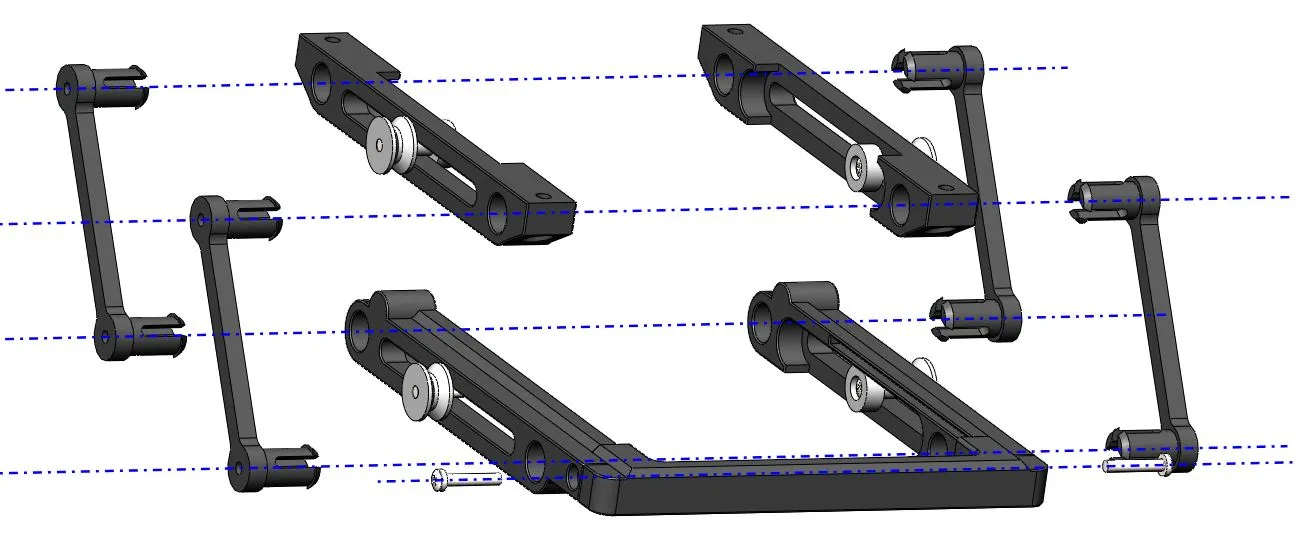

      d. Insert the joints on both sides of the mechanism.

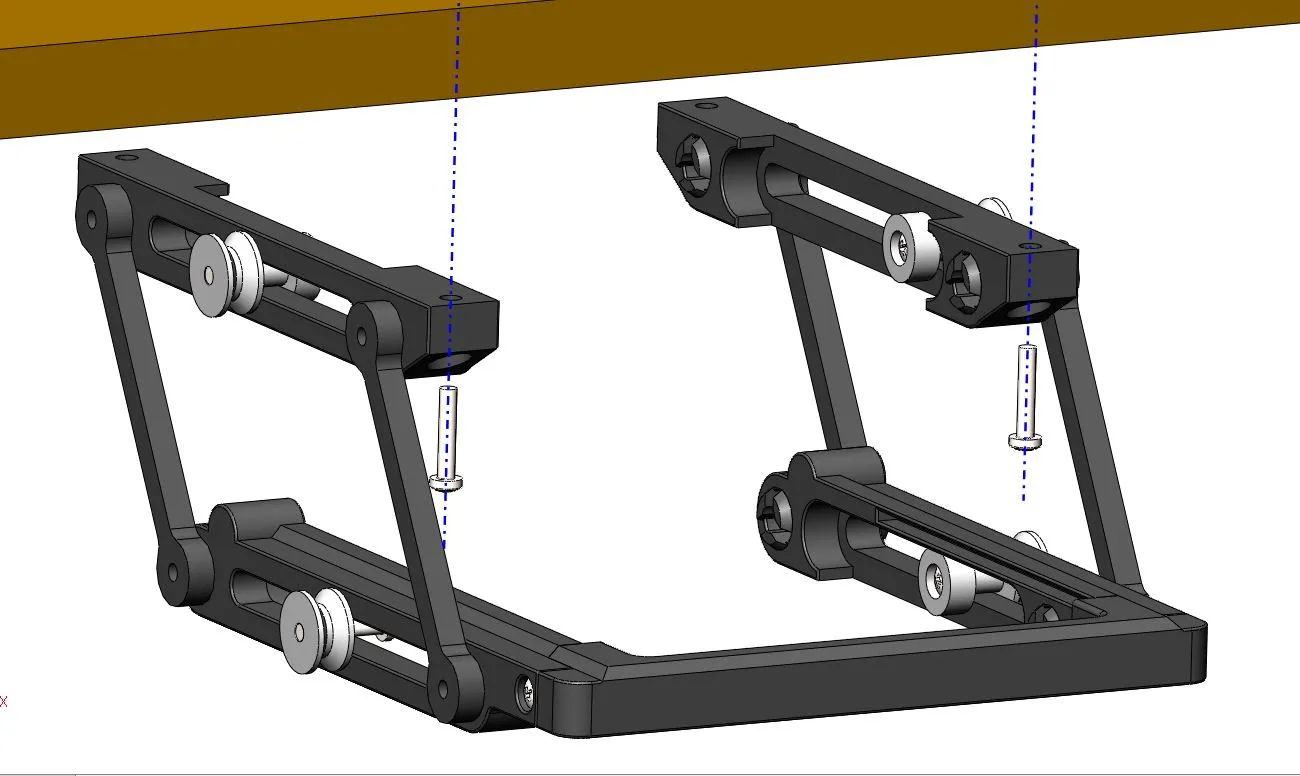

      e. Thread the mechanism into the bottom of the table with the help of 2 wood screws.







      f. After correctly fixing the mechanism, extract the handle and insert the tray that you like.

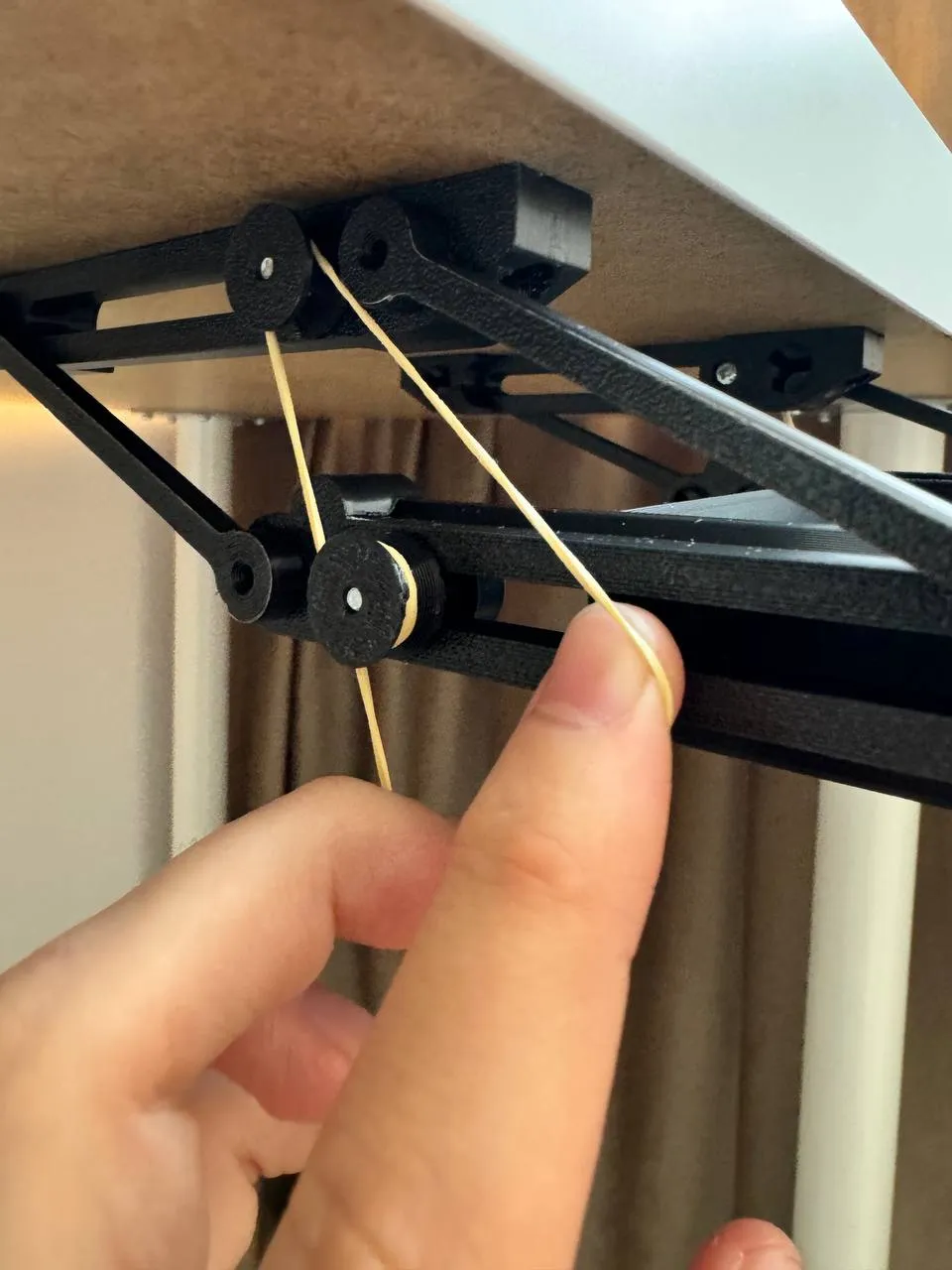

      g. Adjust the tension of the rubber bands according to your needs. The drawer must behave rigidly under the action of weights that you want to store.
