📖 Description

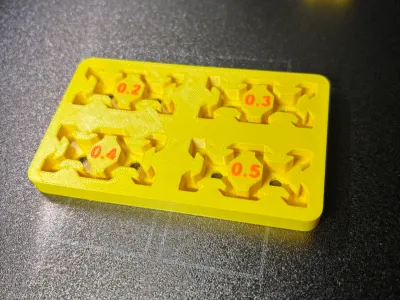

A small calibration block to nail the right fit tolerance for 2040 V-slot aluminum extrusion profiles — multiple offsets in a single print, no material waste.

Compatible with standard V-slot profiles (OpenBuilds style). Works on any FDM printer, any filament. No supports required.

Print it once, find your offset, move on.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Models(5)

  • model file image
    2040 Tolerance Test PETG CC.3mfDesigner

    78.52 KB

    2026-04-08

  • model file image
    2040 Tolerance Test PLA CC.3mfDesigner

    79.20 KB

    2026-04-08

  • model file image
    2040 Tolerance Test.stlDesigner

    226.45 KB

    2026-04-08

  • model file image
    2040 Tolerance Test PETG Dual Color CC.3mfDesigner

    80.78 KB

    2026-04-08

  • model file image
    2040 Tolerance Test PLA Dual Color CC.3mfDesigner

    82.17 KB

    2026-04-08
