Designed to work with back-sealing boxes that feature a magnetically attachable front panel, this printer is ideal for applications where the output size exceeds 195 mm.

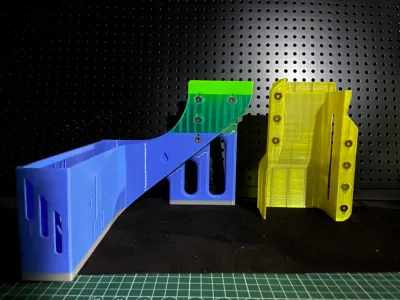

This ultra‑space‑saving waste material chute measures just 6 cm thick, making it perfect for installation in tight spaces. Both the waste material baffle and the chute itself are secured using 10x3 mm magnets that adhere firmly to the magnetically compatible backplate—allowing for quick and easy removal when needed. The chute can also be used without magnets if desired.

The printer supports build volumes up to 250 x 250 x 250 mm.

If you’re equipped with an automatic material feed system, you can use leftover filament with identical material properties for printing. I even created my own color‑mixing prints using scrap material—simply set the extruder to the same color, and don’t forget to trim off the tiny “tail” at the end of each spool. If your material spool features a built‑in RFID chip, be sure to remove the sensor chip to prevent automatic detection from interfering with seamless material re‑feeding. It’s important to ensure that the final spool contains sufficient weight to avoid under‑filling during printing.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    10x3mm强磁铁
    11

Originality of the Model

The author declares that this work is their personally original model
