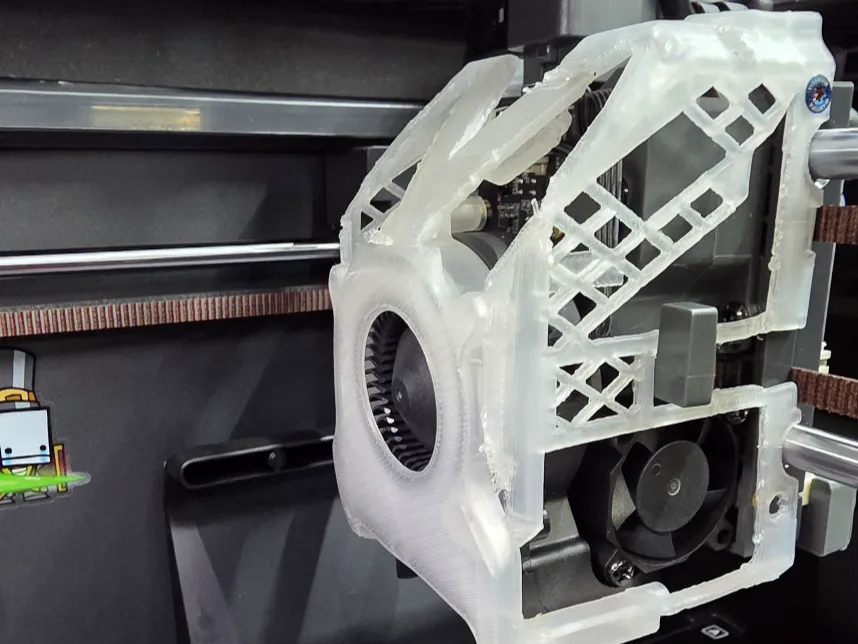

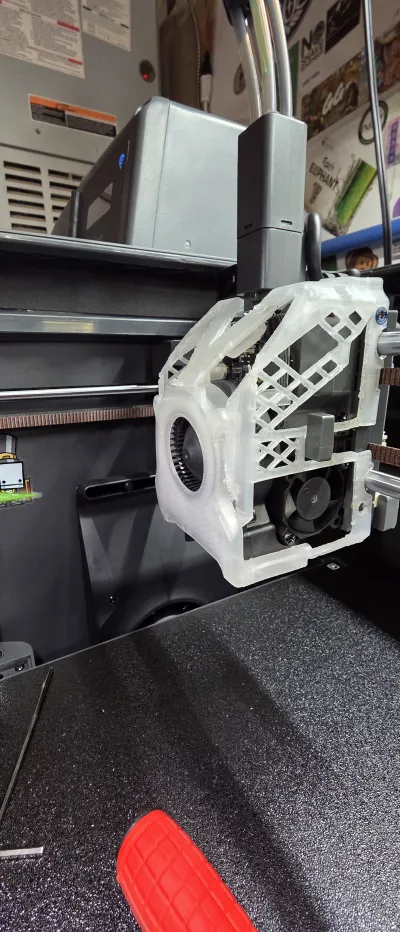

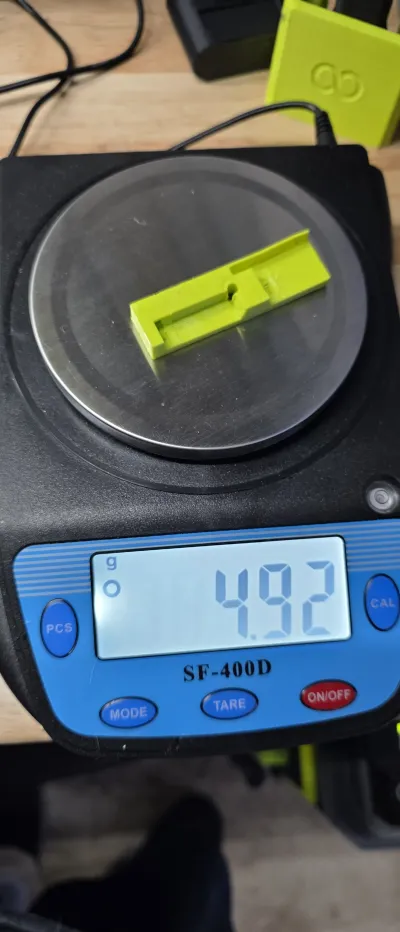

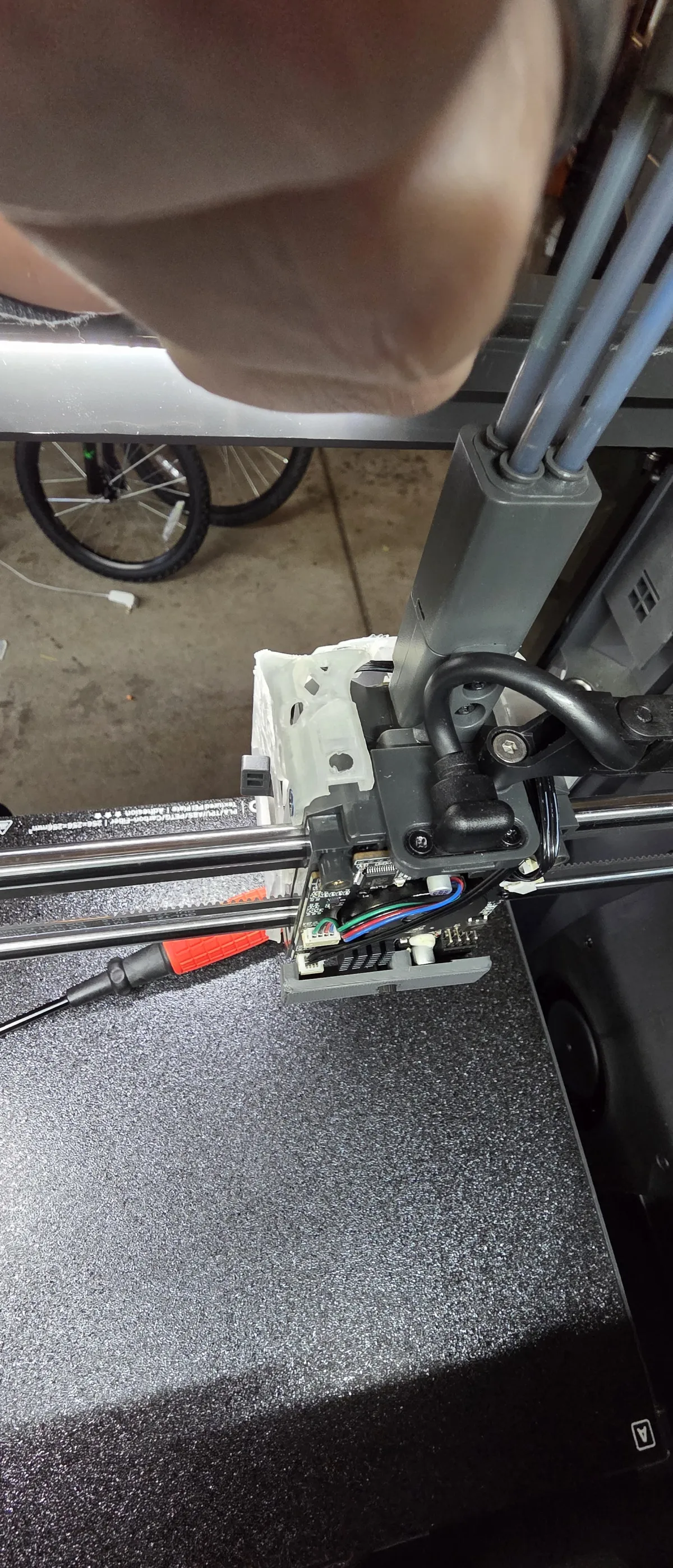

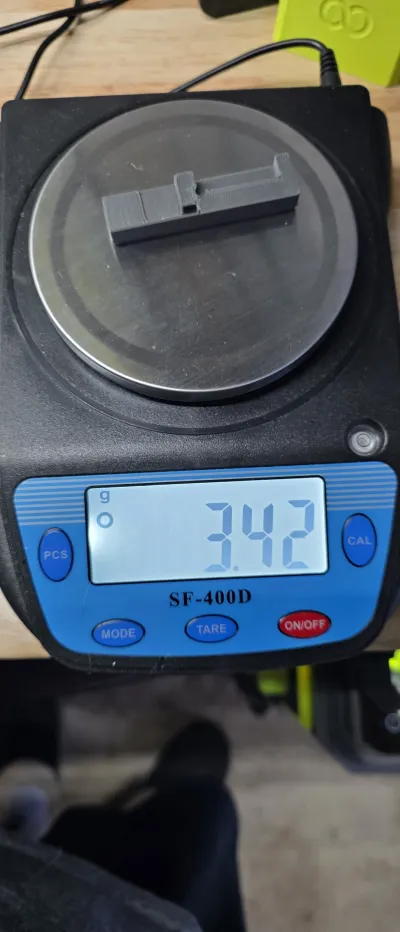

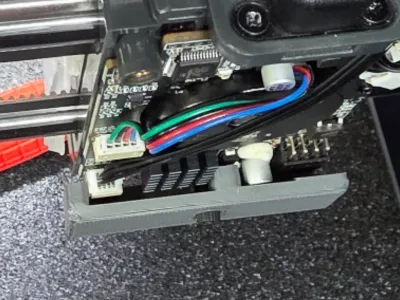

I took inspiration & geometry of some of my favorite builders out there. Spliced together this beast using only my slicer.  It is a rough draft, and you'll notice some crude splice points.  I'm hoping this talented community takes this, polishes it and runs with it like SE3D's ECC1 mod-rush.  Microswiss allowed me to be an Elegoo hotend beta tester and it has been performing flawlessly.  However, I had needed to adjust my filament tension screw or gear tensioner screw.  Hated removing the mid cowl so much I stayed up late Rick Sanchez mode in my ADHD hyperfocus glory and made this.  There was a vacuum/void/black hole on ECC2 tool head mods.  The rear bumper adjusted using rough chop tpu and test method not exact measurements at all but it's working so far. I only have a .3mf for it that has the negative parts blocking the cuts for the bumper.  Anyhow, hope you all enjoy

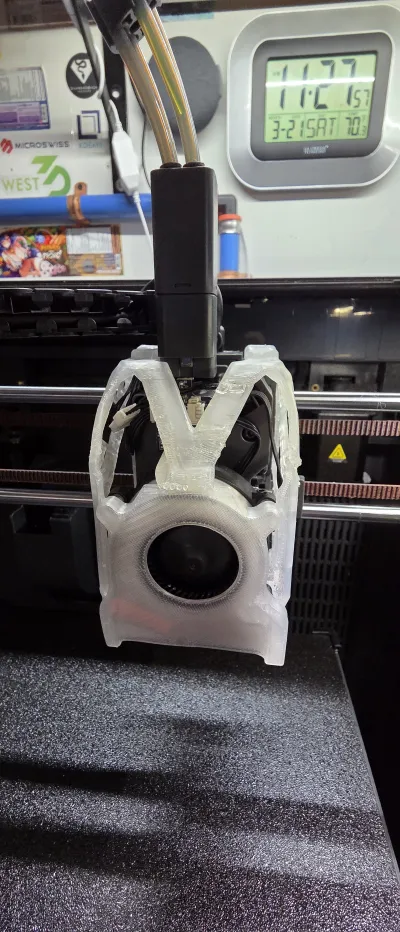

Used my P2S to print this.  The front cover was printed in PP from Inslogic.  It did not print flawlessly because my packing tape method lifted a bit causing a few blemishes.



BOM ;)

OEM fan self-tapping screws

+ 1  5×1.5 mm or 5x2mm magnet both sizes seem to be fine.  Had better luck finding the 5x2mm:240 Pack Small Magnets,5x2mm Refrigerator Magnets Rare Earth Magnet Neodymium Magnet for Crafts, Whiteboard, Kitchen Cabinet: Amazon.com: Industrial & Scientific

Hotend & Nozzle Upgrade:FlowTech™ Hotend for Elegoo Centauri Carbon / Centauri Carbon 2 — Microswiss

4.0 Nozzle:FlowTech™ - DiamondBack Nozzles — Microswiss

Titanium screws:Amazon.com: Wanyifa 10pcs Countersunk Head Torx T10 M3 6 8 10 12 15 18 20mm Titanium Bolt Flat Head Screws (Burnt Blue, M3x6mm) : Industrial & Scientific


Front Cover Filament:Amazon.com: Inslogic PP Filament 1.75mm, Polypropylene 3D Printer Filament ±0.03mm, Semi-Flexible & Ultra Tough, Chemical-Resistant, Food-Contact Safe 3D Printing, 0.8kg Detachable Spool, Natural White : Industrial & Scientific

Bumper Filament:Amazon.com: Polymaker ASA Filament 1.75mm Dark Grey, 1kg ASA 3D Printing Filament, Heat & Weather Resistant - ASA 3D Printer Filament Perfect for Printing Outdoor Functional Parts : Industrial & Scientific


"See a need fill a need"
~Rodney Copperbottom

Differences of the remix compared to the original

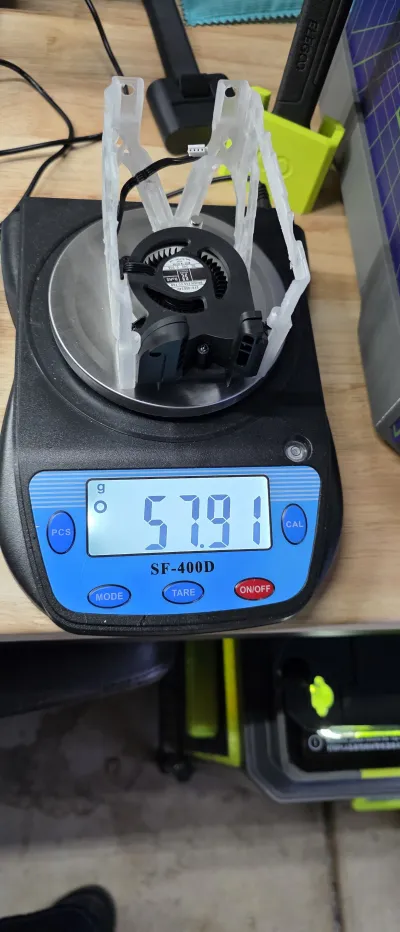

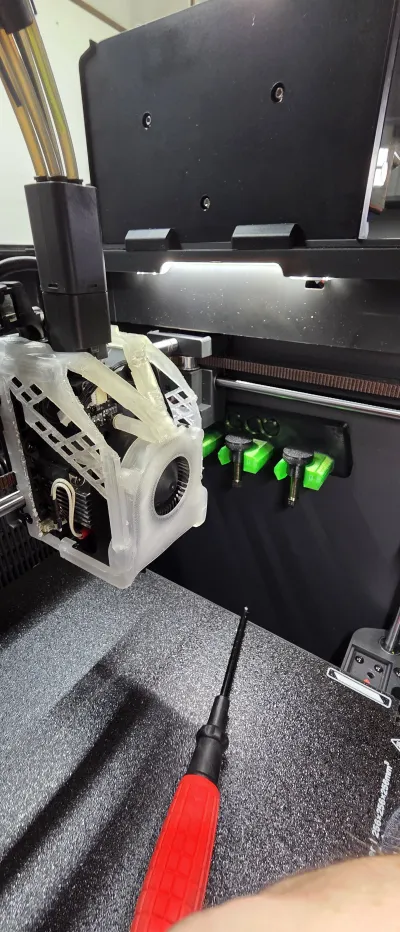

All adapted to fit the Elegoo Centauri Carbon 2.  The only true hurdle in adapting the ECC1 mods to ECC2 is the new fan AIO duct system.  CEK_3D nailed this fan geometry!  My mod allows access to filament tension screw adjustments and lightened the toolhead significantly to help alleviate VFAs & optimize movement.  There was nothing out here for the new ECC2 until CEK_3D.  I took this design and ran with it applying previous ECC1 lightweight mods.
