The Quad-CPU Raspberry Pi Zero 2W is a pretty powerful beast for its size. However, if not properly cooled it will throttle its CPUs at about 80 deg C: https://raspberrytips.com/raspberry-pi-temperature/

This fan assembly helps you to push the Zero 2W to its limits, in particular if you run it at ambient temperatures above 30 deg C or apply overclocking. It fits the Zero W and the Zero as well. It offers a range of printing and fan mounting options.

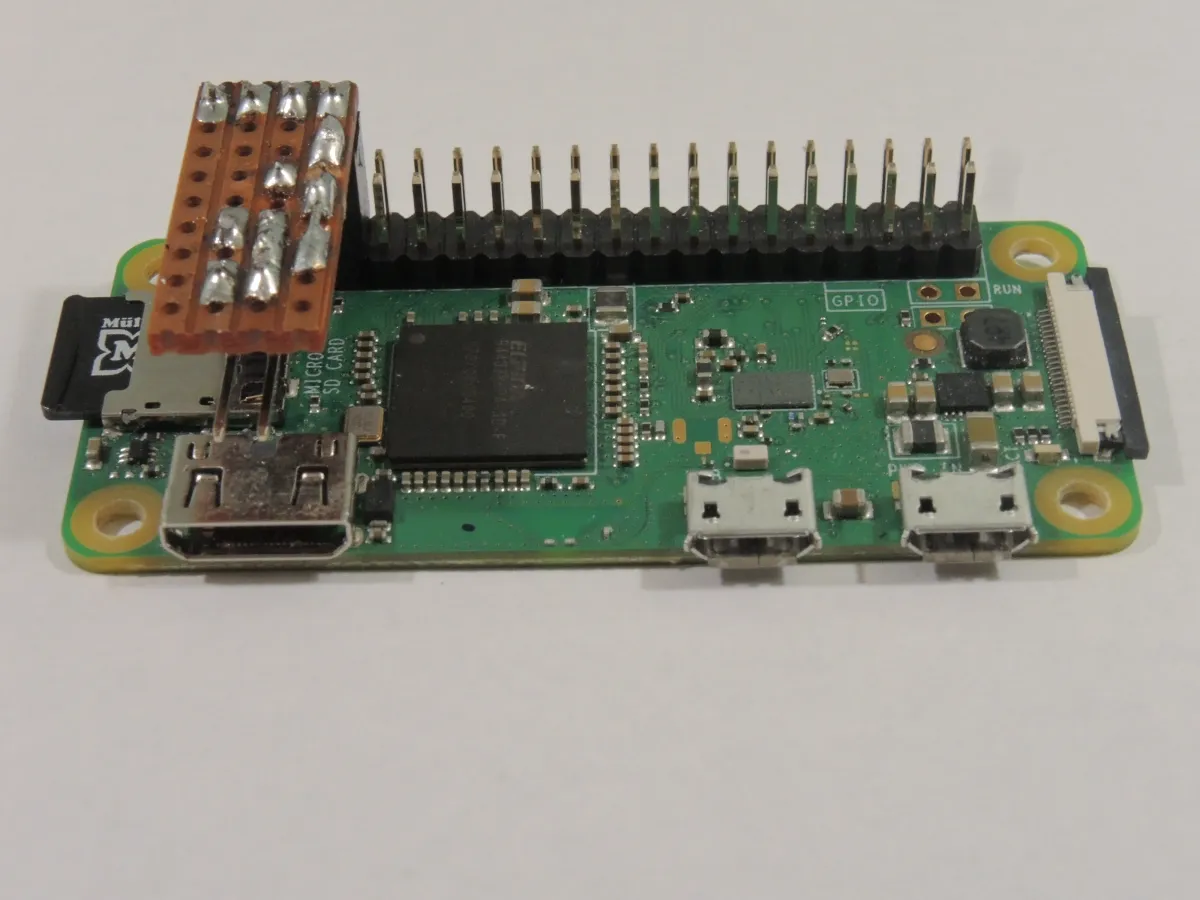

Running the fan continuously is straight foward. I added an electronic temperature control circuit and associated "on/off" Python software to extend ist lifespan and reduce average prower requirements. While a heat sink isn't mandatory, it does seem to reduce the on/ff frequency due to its thermal capacity.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(13)

  • model file image
    240225_Pi_Zero_Fan_Spacers_4mm.stlDesigner

    56.33 KB

    2026-03-13

  • model file image
    240225_Pi_Zero_Fan_Spacers_6mm.stlDesigner

    56.33 KB

    2026-03-13

  • model file image
    240225_Pi_Zero_Fan_Spacers_10mm.stlDesigner

    56.33 KB

    2026-03-13

  • model file image
    240225_Pi_Zero_Fan_Spacers_14mm.stlDesigner

    56.33 KB

    2026-03-13

  • model file image
    240225_Pi_Zero_Fan_Spacers_19mm.stlDesigner

    56.33 KB

    2026-03-13

  • model file image
    240304_Pi_Zero_Fan_Bottom.stlDesigner

    85.24 KB

    2026-03-13

  • model file image
    240304_Pi_Zero_Fan_Top_Fanabove_GPIO.stlDesigner

    110.04 KB

    2026-03-13

  • 240312_Pi_Zero_Fan.scadDesigner

    7.19 KB

    2026-03-13

  • 240312_Pi_Zero_Fan_below_GPIO.stlDesigner

    228.40 KB

    2026-03-13

  • 240312_Pi_Zero_Fan_below_noGPIO.stlDesigner

    228.40 KB

    2026-03-13

  • fan.pyDesigner

    1.34 KB

    2026-03-13

  • stat.pyDesigner

    1.13 KB

    2026-03-13

  • temp.pyDesigner

    1.33 KB

    2026-03-13
