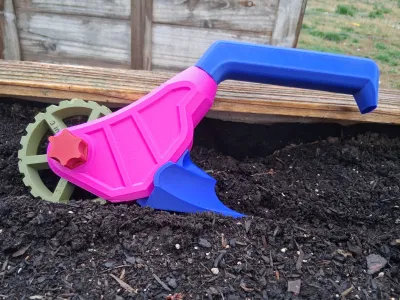

I Designed This To Aid In Getting Seed Spacing Done Quick And Simple With Just One Quick Movement. Then During Development Realized I Could Also Add A Trencher To Do Both Jobs In One Quick Motion



The Handle Is Removable For So That Most Broom Handles Can Be Inserted Into It For Working At Ground Level Comfortably.

4 Different Threads Were Tested - 4TPI Round, 4TPI Triangle, 5TPI Rounded Triangle, 5TPI Square (Industrial Handle).

Threads Are 4.5 TPI Because Most Broom Handles Are Either 4 TPI or 5 TPI.

Tolerances Were Adjusted To Accommodate All 4 Types.



The Adjustable Plow is Held In Place With 1 M6x1x20mm Screw (Flat Head Or Slot Recommended Others Pack With Dirt)

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    M6x1x20mm Button Head Screw
    1
    Flat Head Or Slot Recommended

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license

Models(7)

  • model file image
    Plow Attachment.objDesigner

    440.90 KB

    2026-03-08

  • model file image
    1.5 in Seed Wheel.objDesigner

    825.39 KB

    2026-03-08

  • model file image
    3 Inch Seed Wheel.objDesigner

    716.05 KB

    2026-03-08

  • model file image
    Seed Wheel Bolt.objDesigner

    563.11 KB

    2026-03-08

  • model file image
    Seed Spacer Handle.objDesigner

    470.59 KB

    2026-03-08

  • model file image
    Seed Spacer Main Body.objDesigner

    1.22 MB

    2026-03-08

  • model file image
    Seed Spacing Wheel.3mfDesigner

    694.77 KB

    2026-03-08
