An easy print modulating filament storage.

No AMS

No Glue unless personal preference.

Straight forwards assembly.

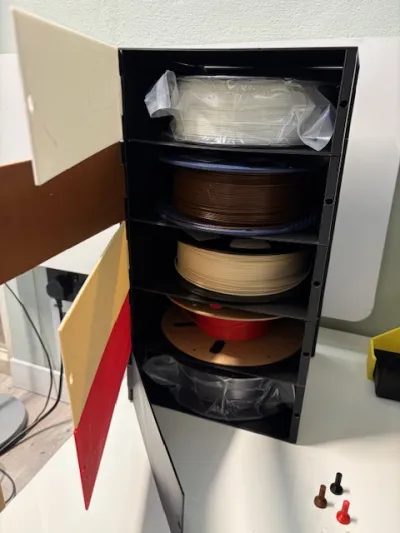

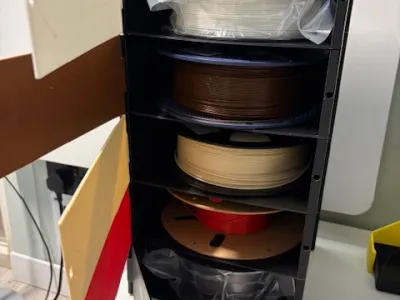

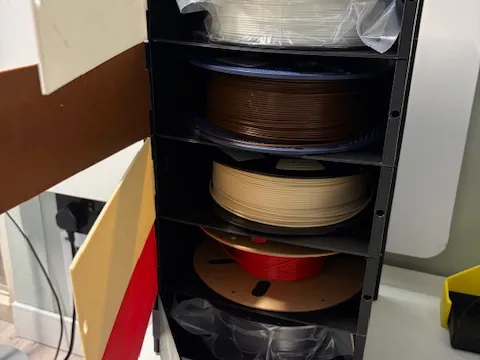

This system lets you design the height and style of your own personal filament storage to your taste and colour.

E.g -

Use one colour for the whole unit.

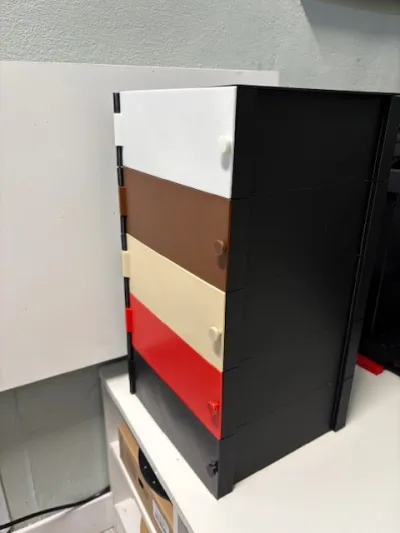

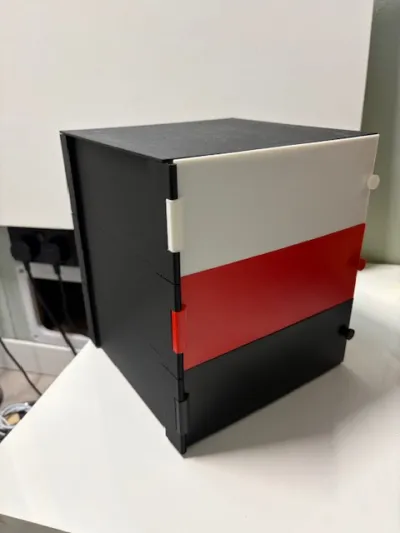

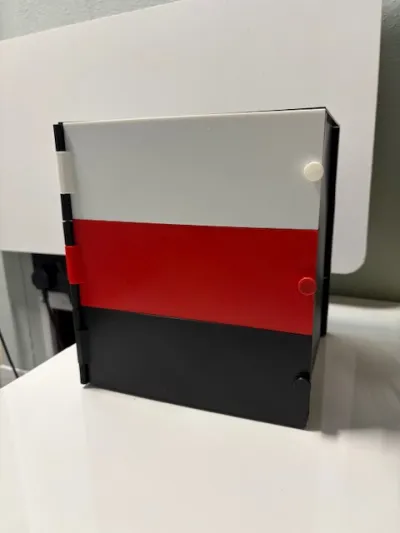

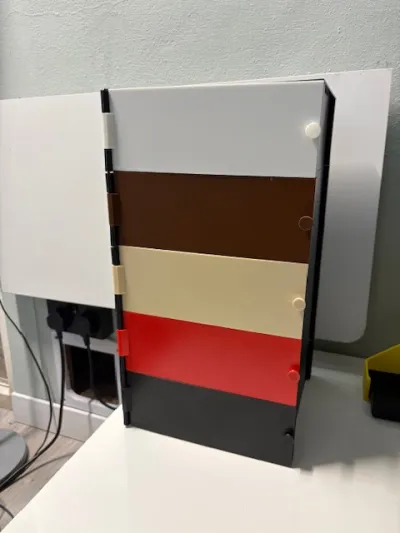

Colour each door to identify what colour is stored.

Colour the tray and door the same colour.

I have added a label holder incase you prefer it all to be one colour to ID the colour stored. ( Would require glue).

Cone shapes are used to locate each tray on top of each other and gravity will hold in place. This creates a strong sturdy build as you decide how high you want to go.

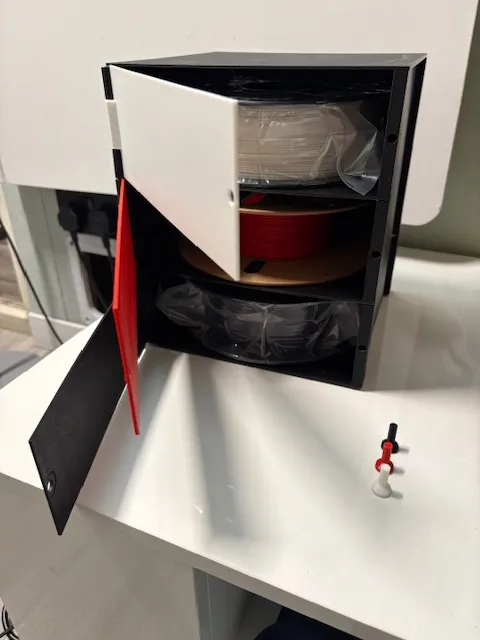

The handle doubles up as a peg which keeps the door firmly shut.

The hinge slides through the tray hinges and door hinges and is removable if you choose to swap the colour of the door.

I have attached 5 adhesive rubber feet to the bottom of the base to prevent the unit sliding -      https://amzn.eu/d/0fd7CFHJ

Maybe similar in Makers Supply.

The minimum you will need to print are -

1 Bottom Tray

1 Top Tray

2  Doors

1 Lid

2 Hinge & Handle

Optional Label Holder ( Requires Gluing on).

The middle tray needs to be printed each time you choose to build your storage higher.

5 Plates with an optional 2 more included in the download.

The trays maxed my Flashforge AD5X build plate out at 220mm x 220mm , this is the minimum sized plate needed.
