Portable
Photography
Fill Light
Light
0.2 mm layer height, 2‑wall walls, 15% infill density
1-disc
PETG
Designer
9
0

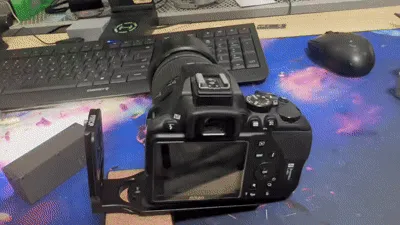

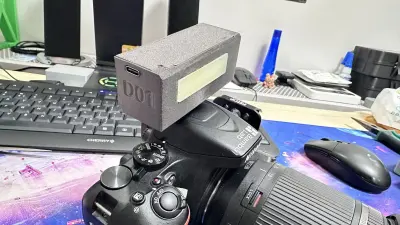

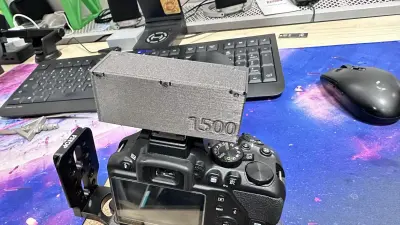

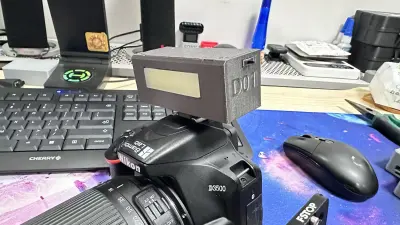

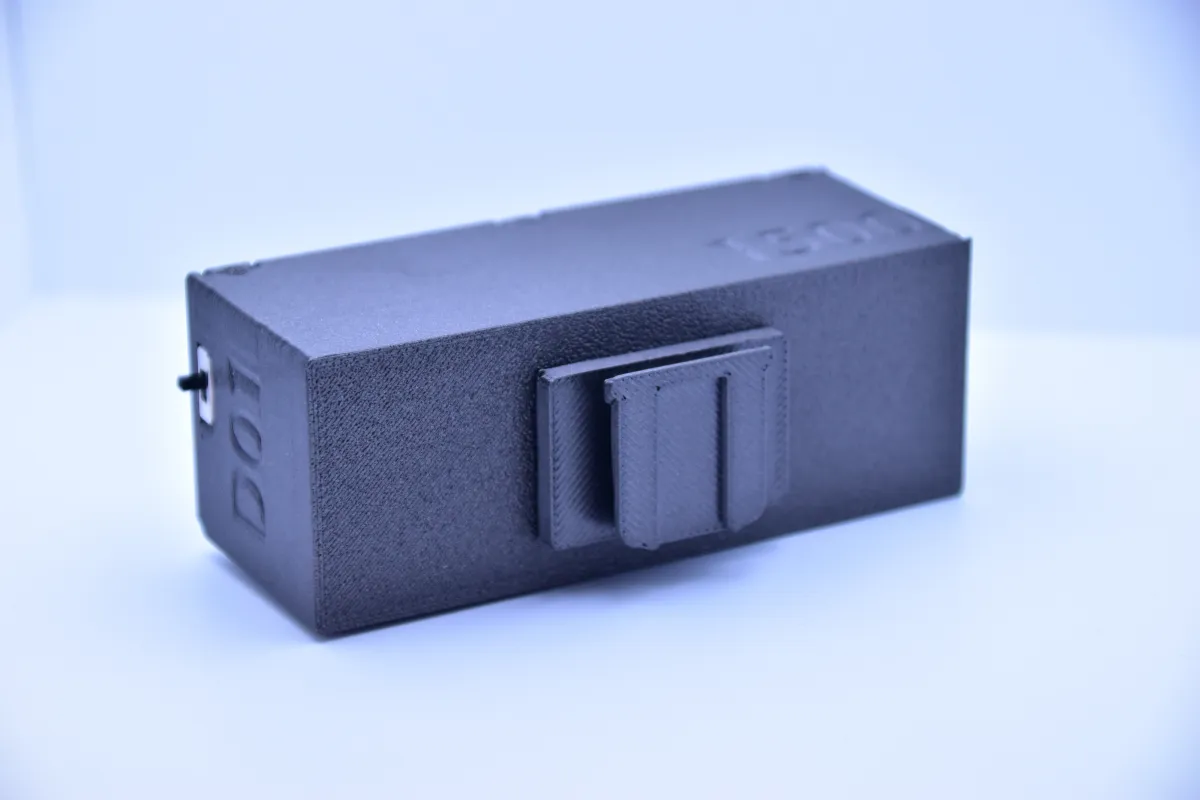

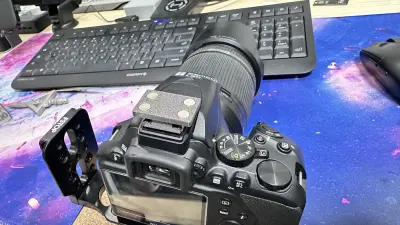

Portable photography fill lights feature a magnetic attachment system for quick and easy assembly.
Construction requires the following components:
18650 battery pack with 18650 battery holders
MSKT-14C01 toggle switch, with a handle height of 1.5H
Charging protection board—any model will do; you can typically pick one up for as little as one yuan.
The light board should measure 13.5mm × 64mm.
Use eight 6mm × 2mm magnets.
Total cost should remain under ten yuan.
We recommend using PETG for the housing material.
Connect the battery terminals to the charging protection board: link the positive terminal to pin 1 of the toggle switch, connect pin 2 of the toggle switch to the positive terminal of the light board, and then link the light board’s negative terminal to the negative terminal of the protection board. Finally, secure the cover in place.
Bill of materials
- NameQuantityNotes
- 118650+18650电池盒1普通
- 2拨杆开关MSKT-14C01 柄高1.5H1柄高1.5H
- 3充电保护板1一块钱的小平板式的
- 4灯板尺寸13.5mm*64mm1功率3-4w
- 56mm*2mm 磁铁8普通磁铁
