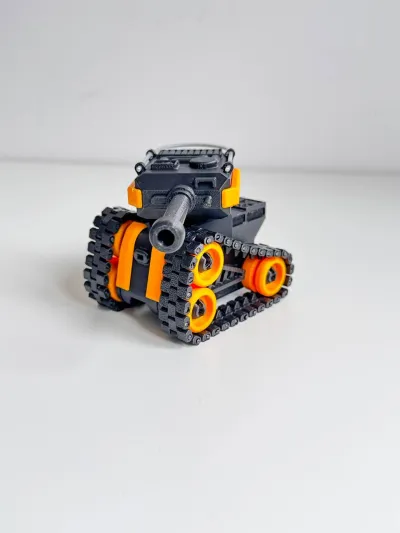

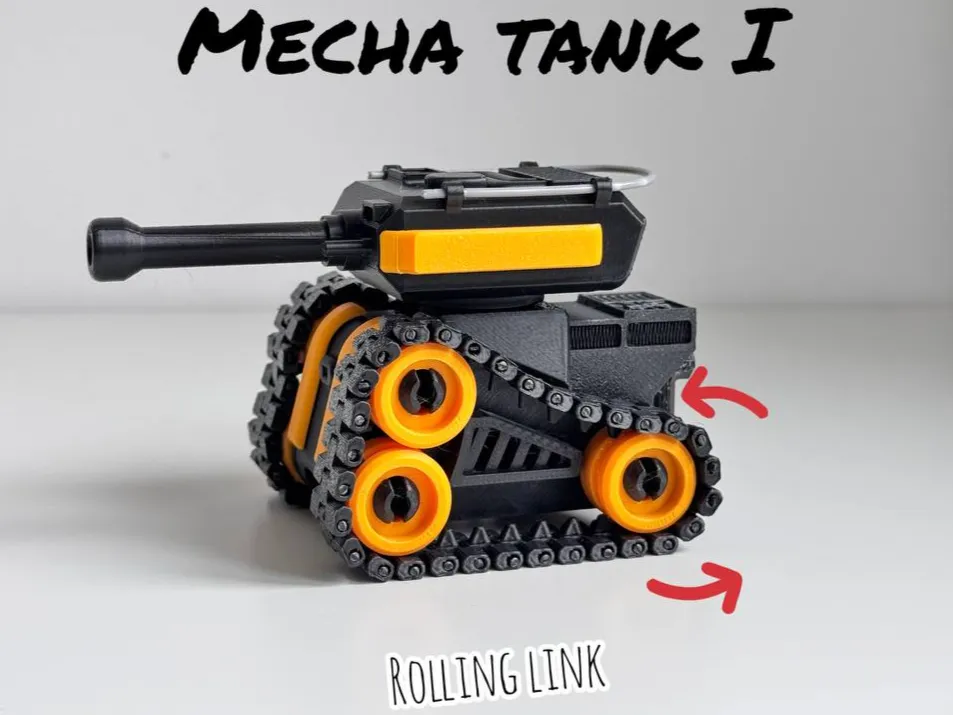

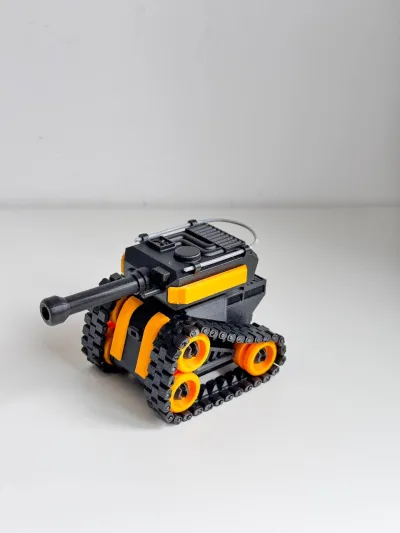

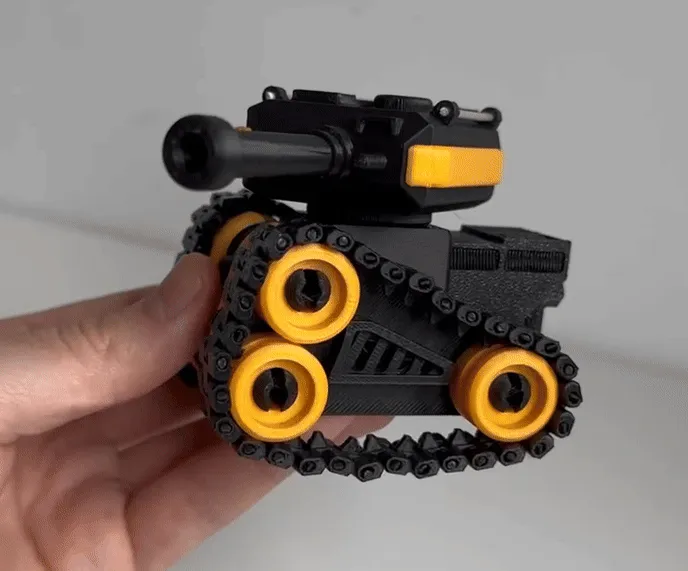

A cool Mecha Tank I are ready be assembled in minutes. This tank has movable links and turret. Based on snap assembly.

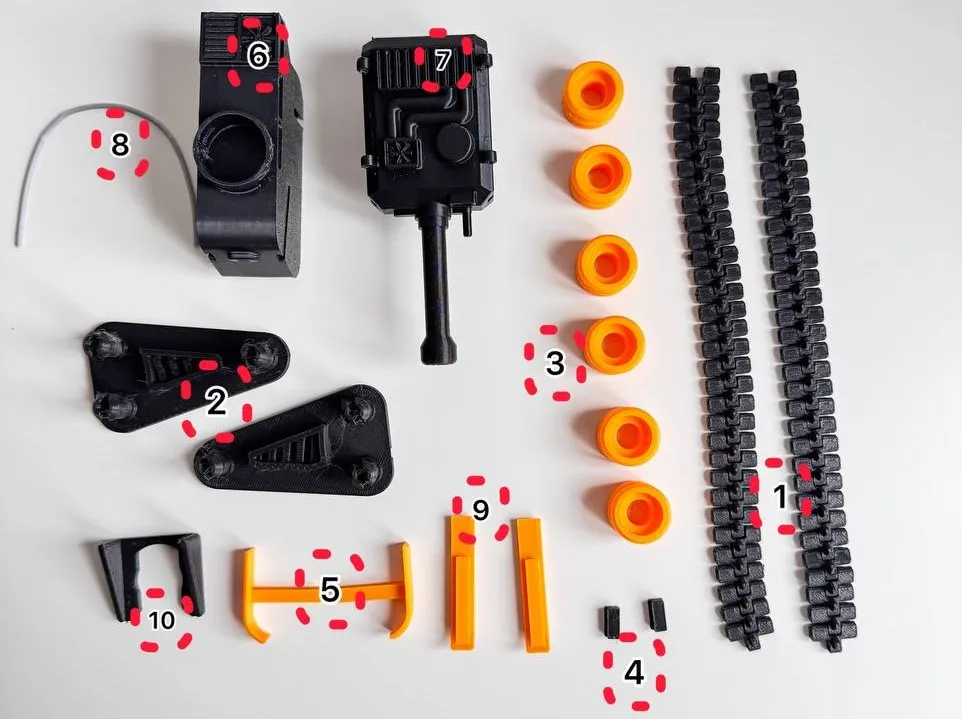

List of parts

1.  x2 Tracks that consist from 31 joints each
2. x2 chassis
3. x6 wheels
4. x2 pins for chassis and body
5. x2 inserts for chassis and body
6. tank body
7. turret
8. turret wire
9. x2 turret inserts
10. snap connector

Assembly steps

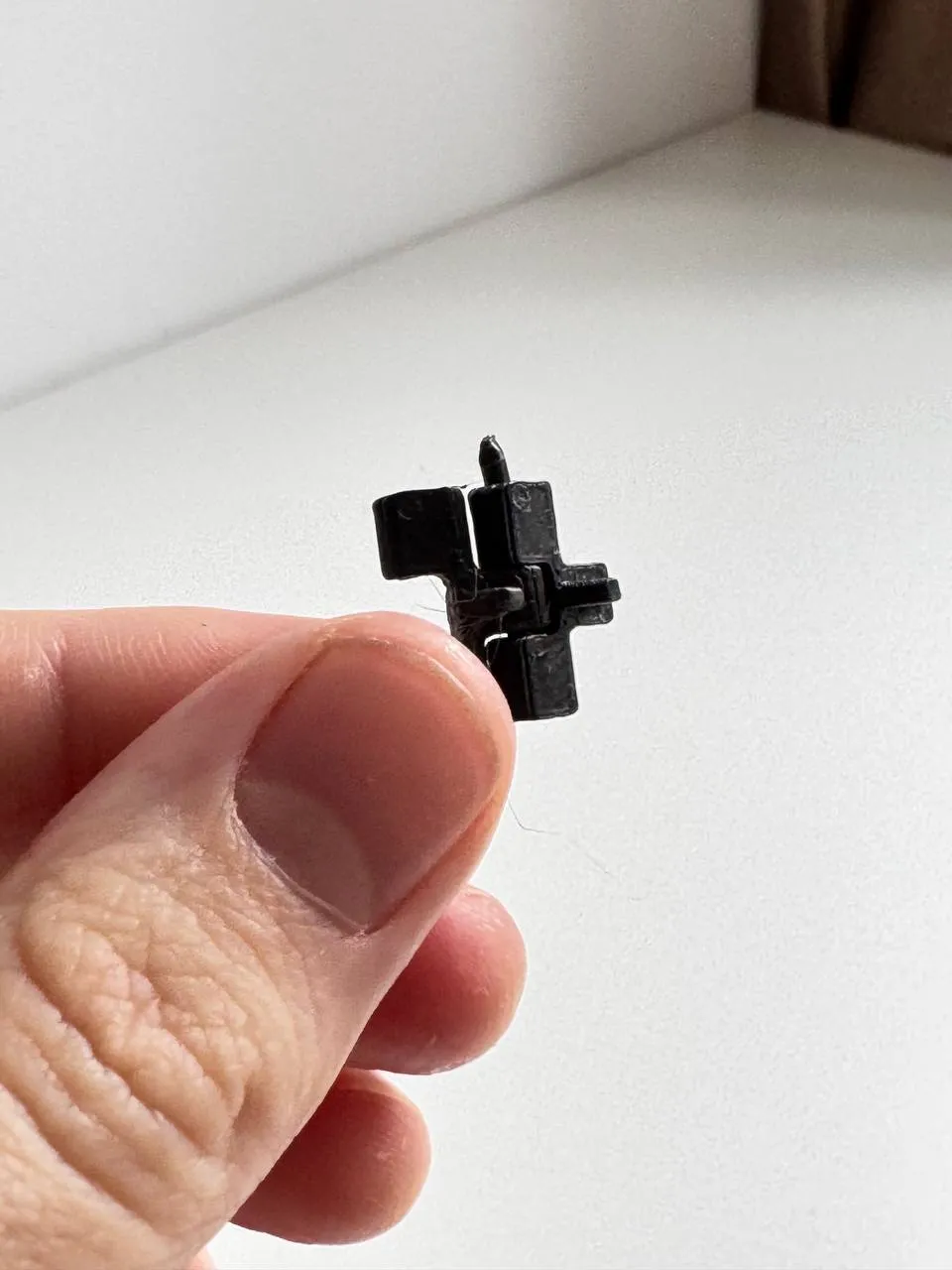

1. Prepare 15mm  length wires from your filament(1.75mm) for track assembly. Each track have 31 links. Insert wires in each link.



2. Prepare insert wheels[3] in each chassis[2]. Wheels should easily rotating.

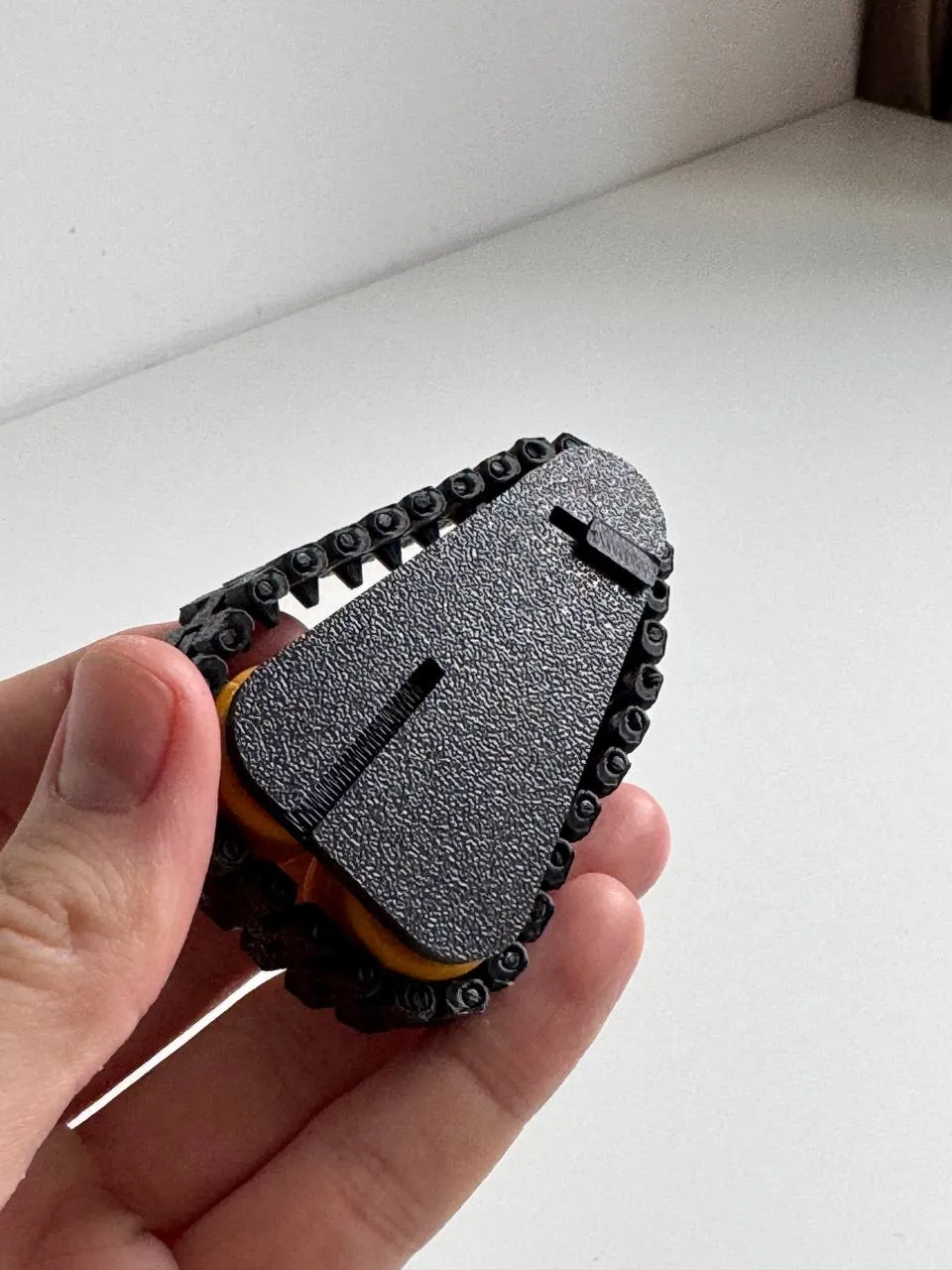

3. Close the track o each chassis with wire pin.



4. Insert pins[4] into the chassis.

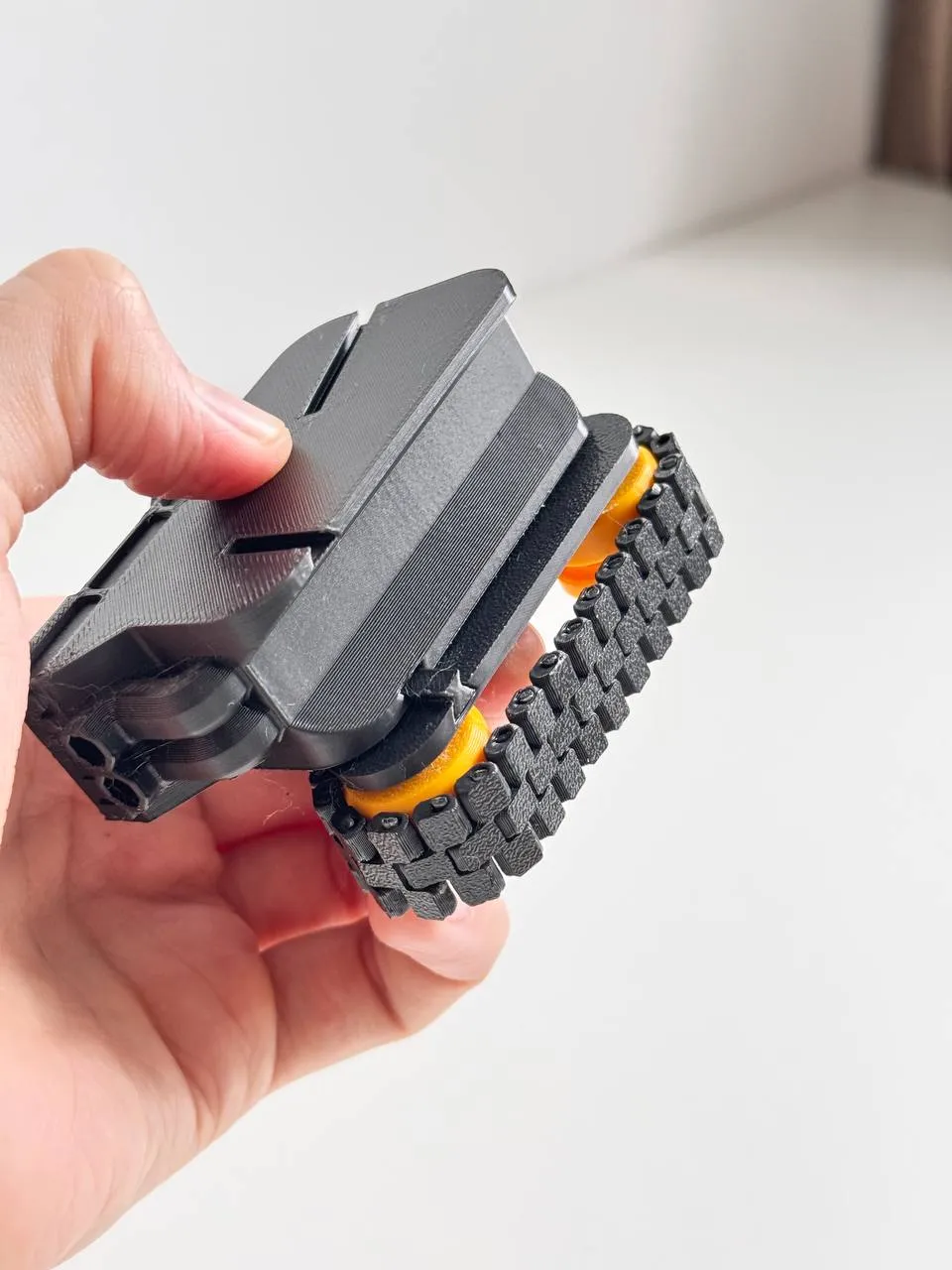

5. Connect chassis with body.

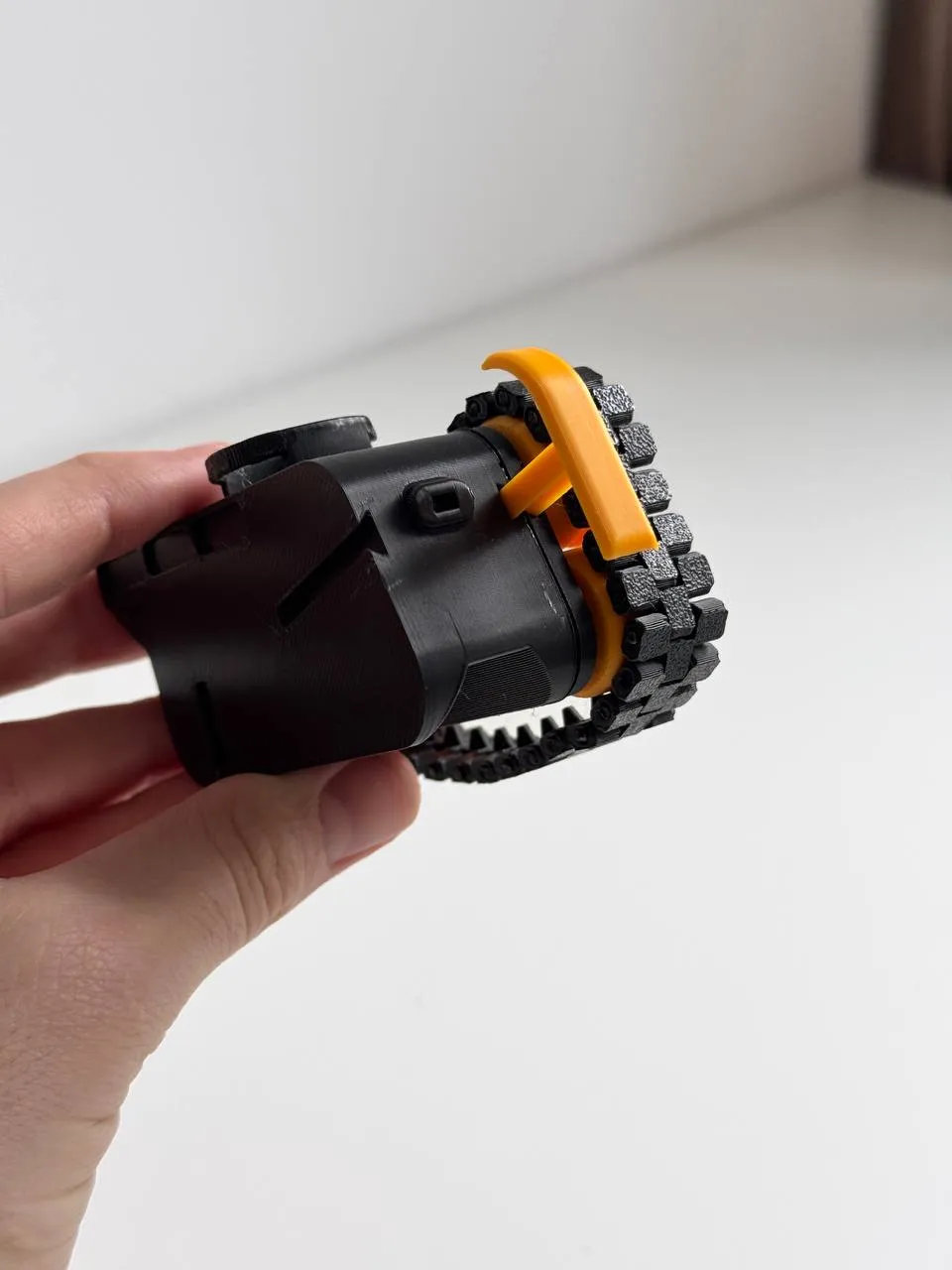

6. Insert frontal pins[5] to connect body and chassis. !Pins for chassis and body have L and R side.

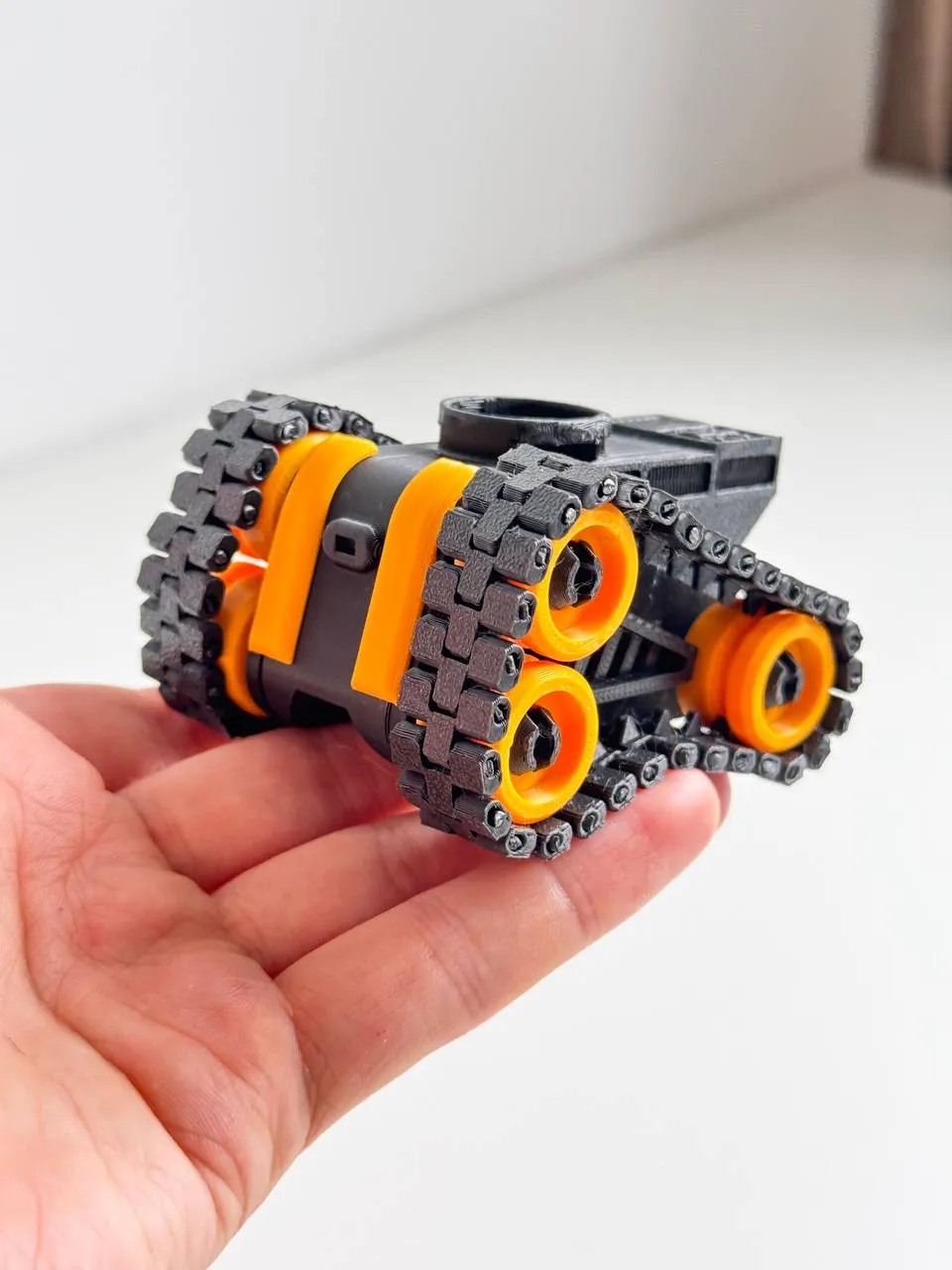

7. Insert the both sides.

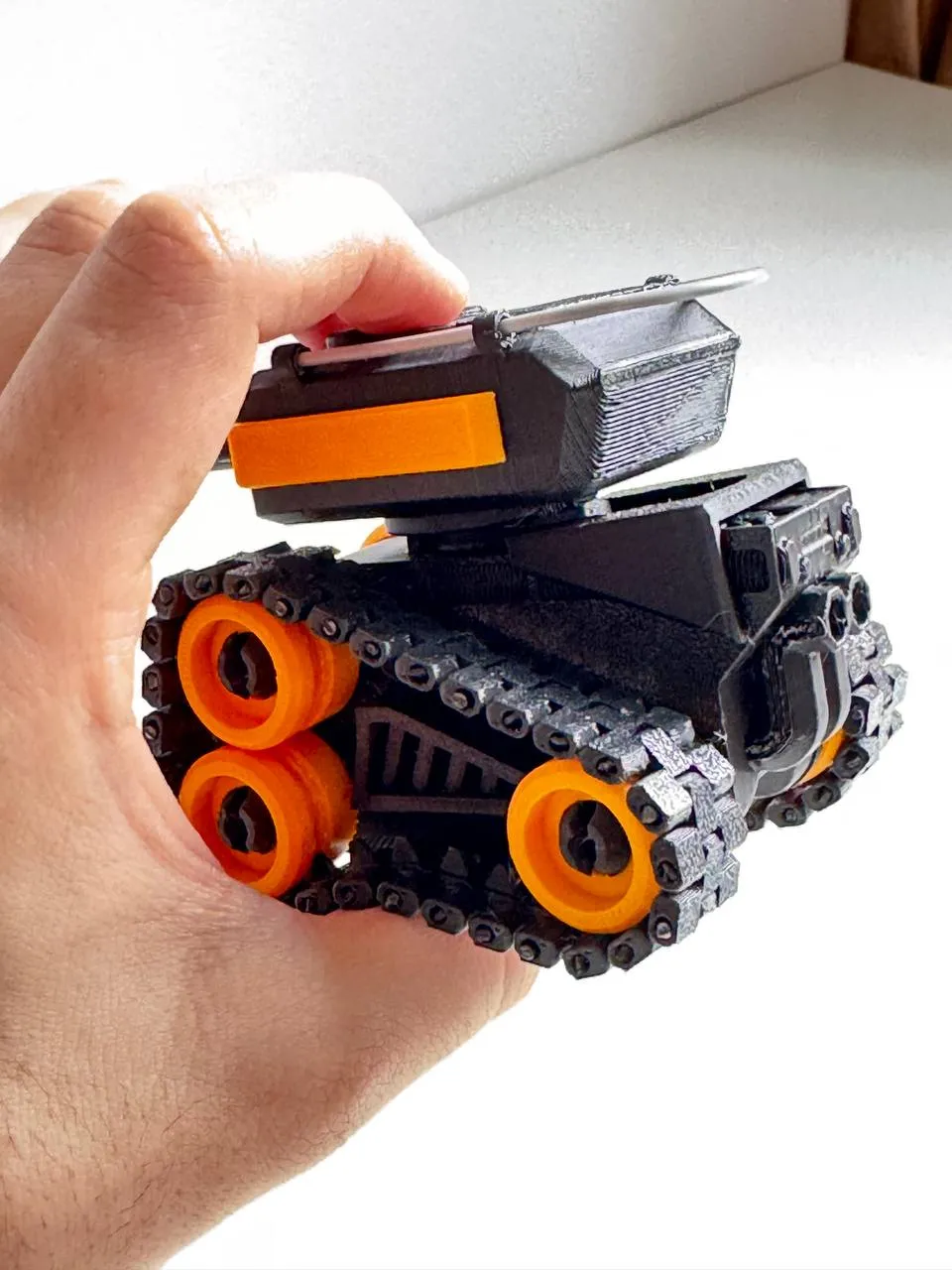

8. Prepare the turret. Insert  filament wire on top.



9. Add turret insertions.



10. Alling body and turret and insert snap connector[1] from the back.

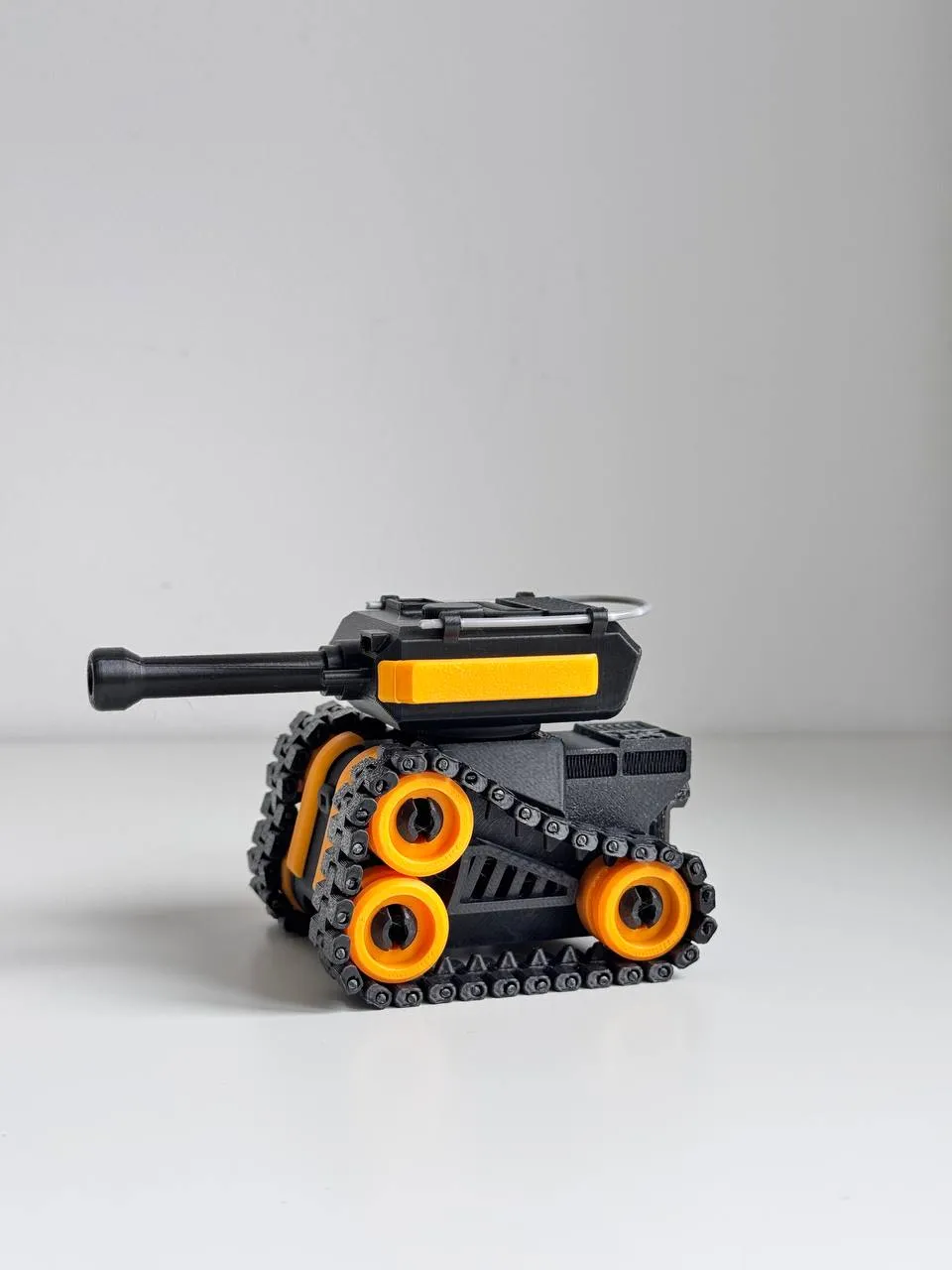

11.  Tank is ready to play.
