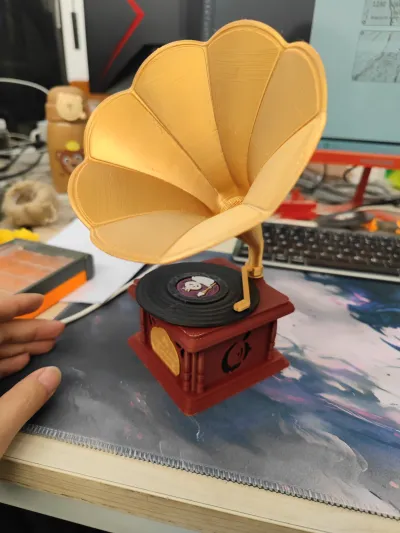

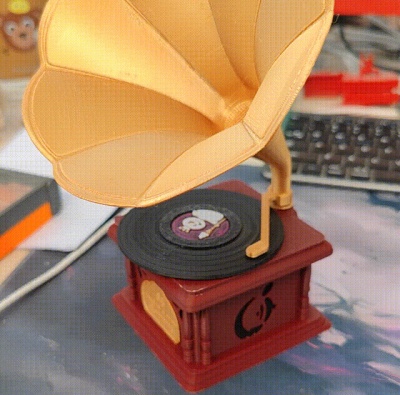

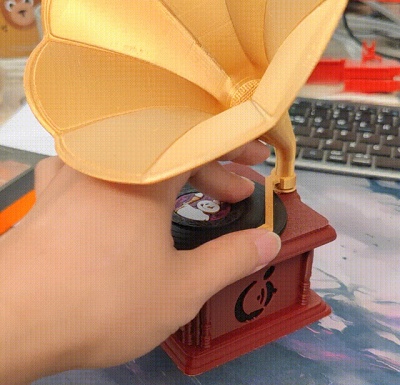

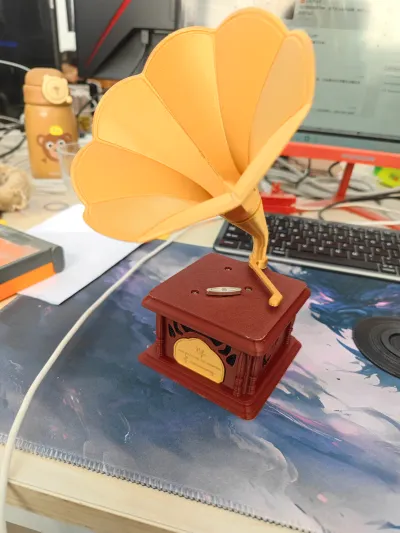

A gramophone‑style music box—its accompanying music movement can be purchased online.

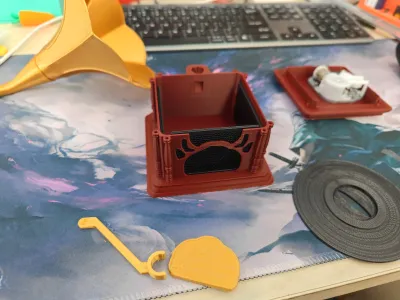

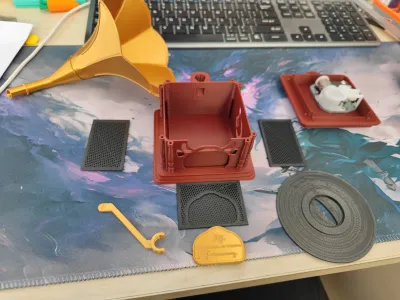

The installation process is straightforward: simply assemble the corresponding components in the order shown in the images. Installing the creative module is also relatively simple—with minimal overall difficulty—and you can customize the infill pattern on the side panels to achieve different lattice structures.
Additional note: The original design envisioned integrating a record with NFC technology to enable standalone music recognition and playback. While the core functionality is already largely operational, there are still a few software bugs that have prevented us from uploading the model. Furthermore, the circuitry requires manual soldering, so there’s a moderate learning curve for beginners. If you’re interested, stay tuned—we’ll be sharing more details soon!
Bill of materials
- NameQuantityNotes
- 1音乐机芯1【淘宝】假一赔四 https://e.tb.cn/h.SxWAPtOMgm0RJrr?tk=ZX2PfNOhEHk HU006 「日本sankyo18 23 30 50音乐盒机芯发条手摇八音盒diy配件电动旋转」 点击链接直接打开 或者 淘宝搜索直接打开
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Remixes must be shared under the same license
