Meshy Basket

Basic modern basket for everything !!

Printing recommendations & assembly

For this model you have to know where you'll use it for example if you are going to put it outside I suggest PETG otherwise inside you should use PLA.

Print the model is very easy: import everything in your slicer and rotate the nut upwards, I know it is counterintuitive but no support are needed for the basket but are necessary for the handle.

The bin is made of 3 part:

• The basket
• The handle (if you want to hang it)
• The nut (if you want to hang it)

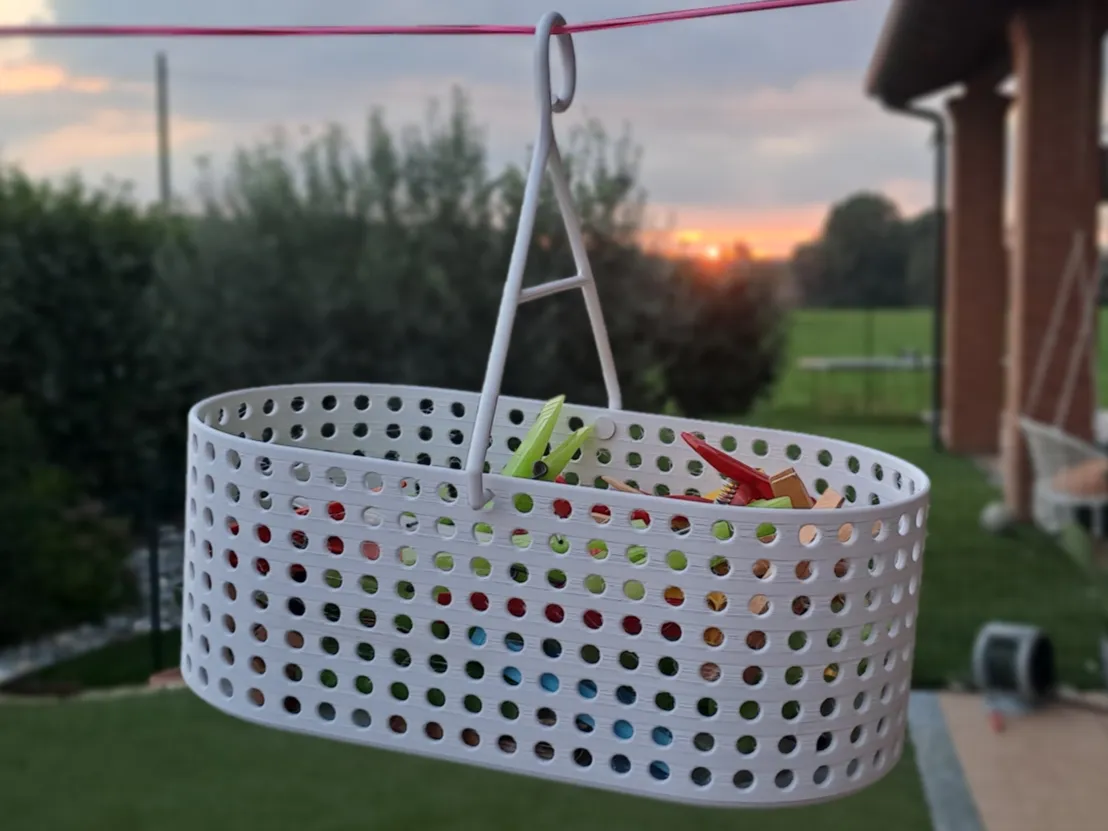

Only if you want to hang the basket somewhere you have to do some assembly:

• Print the handle and the nut
• Insert the handle in two holes(in the middle) of the basket
• Push the nut over the handle pin(you may have to file it a little bit if your machine isn't very accurate)

Enjoy your Basket

Scaling & Dimensions

You need it bigger or smaller - just scale every piece at the same percentage - here are the default dimensions:

• Internal: 274x134x95mm (10.7x5.3x3.7in)
• External: 280x140x102mm (11x5.5x4in)

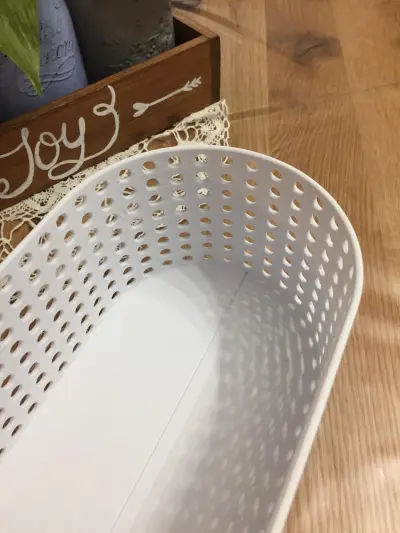

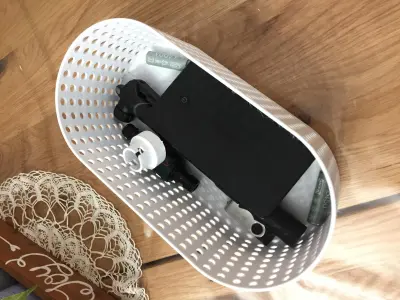

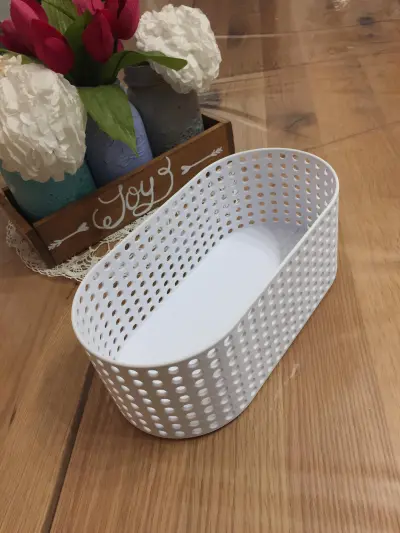

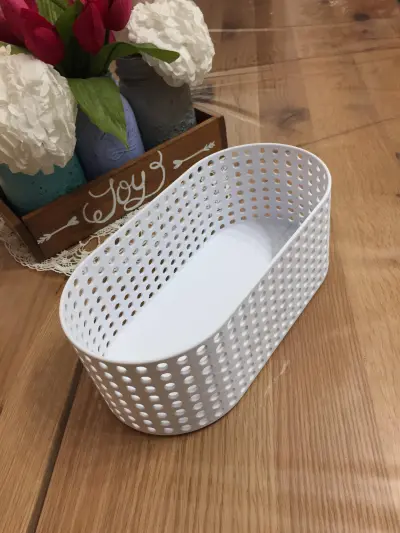

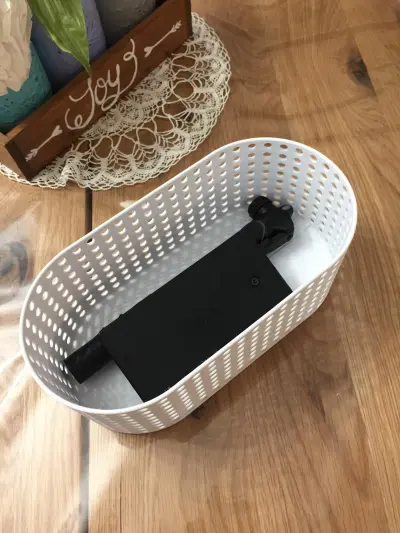

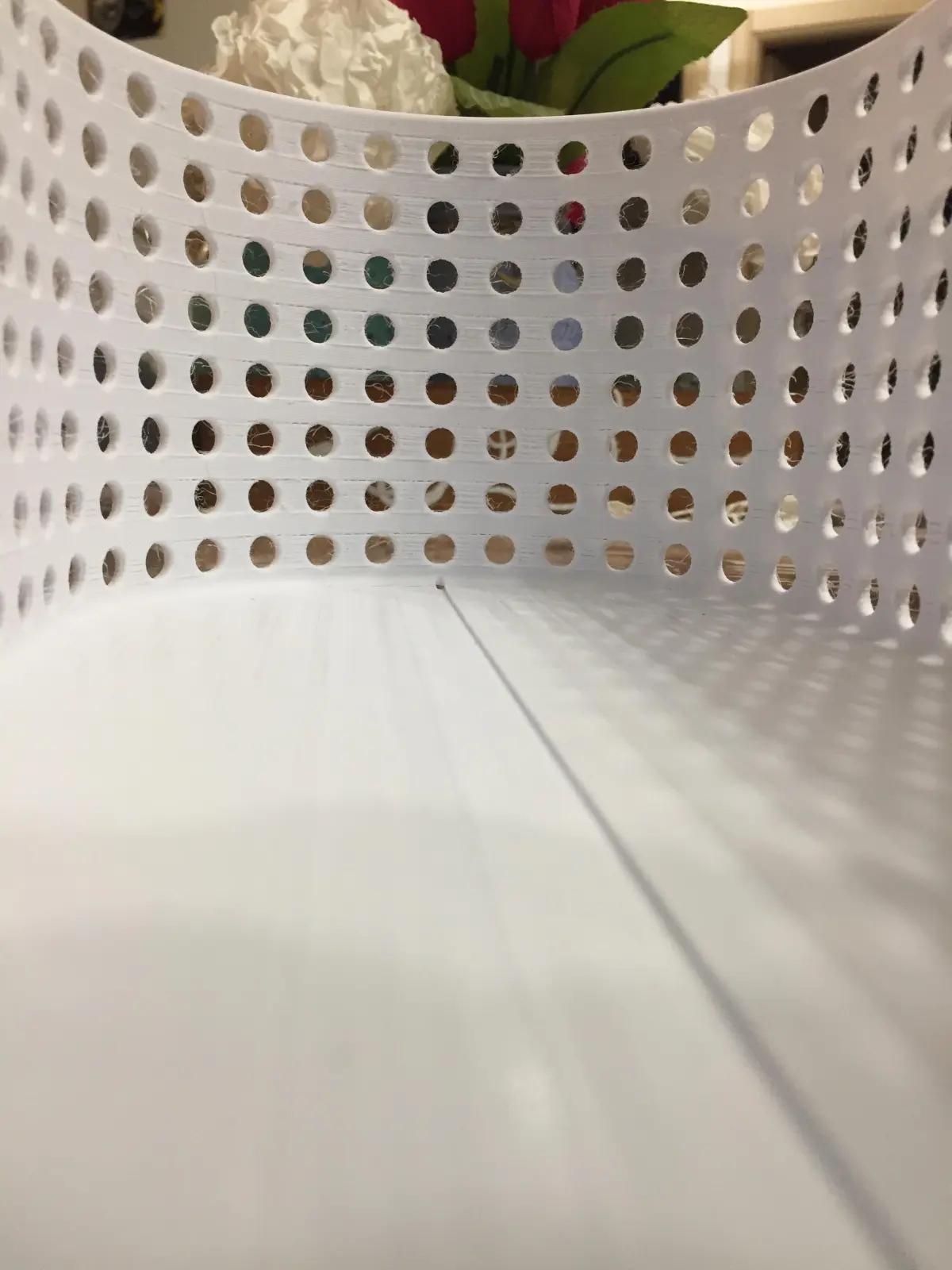

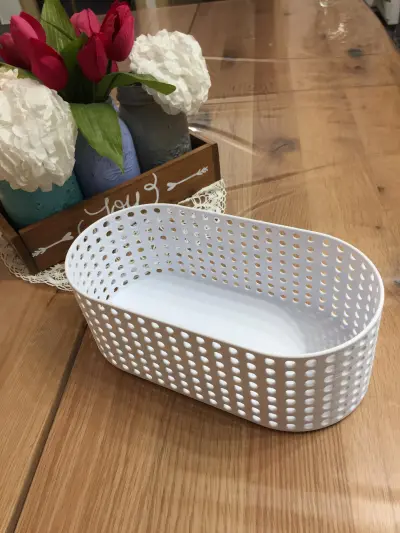

📸Image shown are of a print scaled at 95%, using eSUN white ePLA LITE

For any question or suggestions feel free to leave a comment or send me an e-mail at:📧 [email protected]
