Soffit
Vent
Roof
DIY
- 0.16mm layer, 2 walls, 15% infill
3-disc
PETG
Designer
24
9

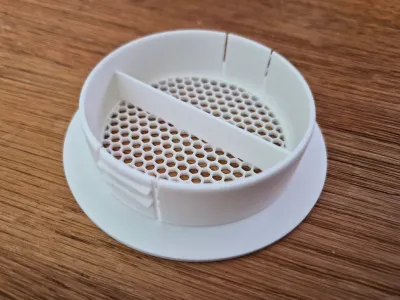

Soffit Vents in a variety of common sizes - suitable for hole sizes of 70mm, 75mm and 100mm. Each vent is just over 2cm high.
Featuring a grid ventilation to stop insects, as well as side grippers for a push fit mechanism. There is a side brim around, which I also used to add sealant for a better long term fit.
The grid itself is achieved via a modifier on the model, thus you can change its density or pattern (currently honeycomb) with ease.
It is suggested to be printed in PETG due to external use.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Models(1)
- SoffitVent_nexprint.3mfDesigner
248.50 KB
2025-10-28
