AVM FRITZ!Repeater (all models!) & FRITZ!Smart Gateway stand / mount / holder
Print Profile(1)
  • 0.2mm layer, 4 walls, 20% infill

    1-disc

    PLA

    Designer

2

1

12

3

Released 2025-10-03
Details
Files(2)
Makes & Comments (0)

Summary

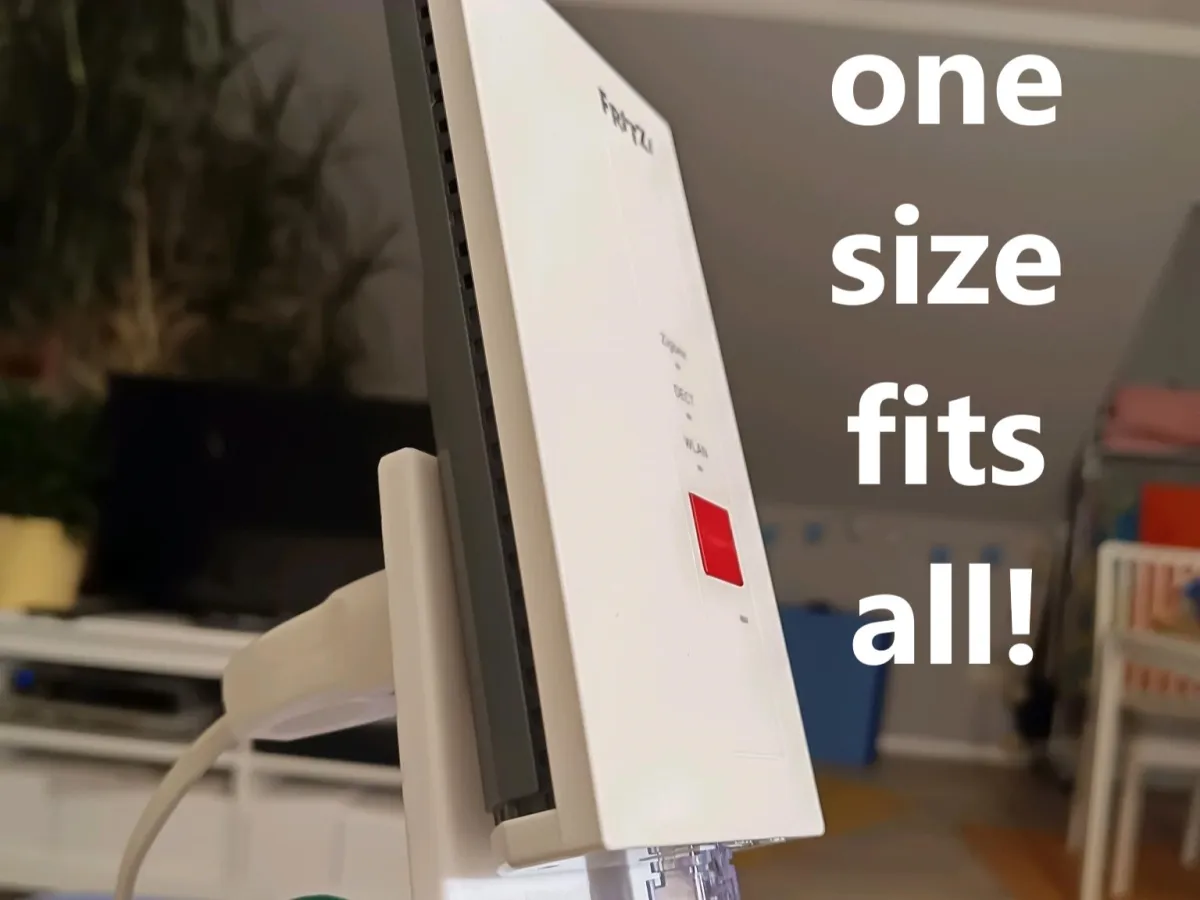

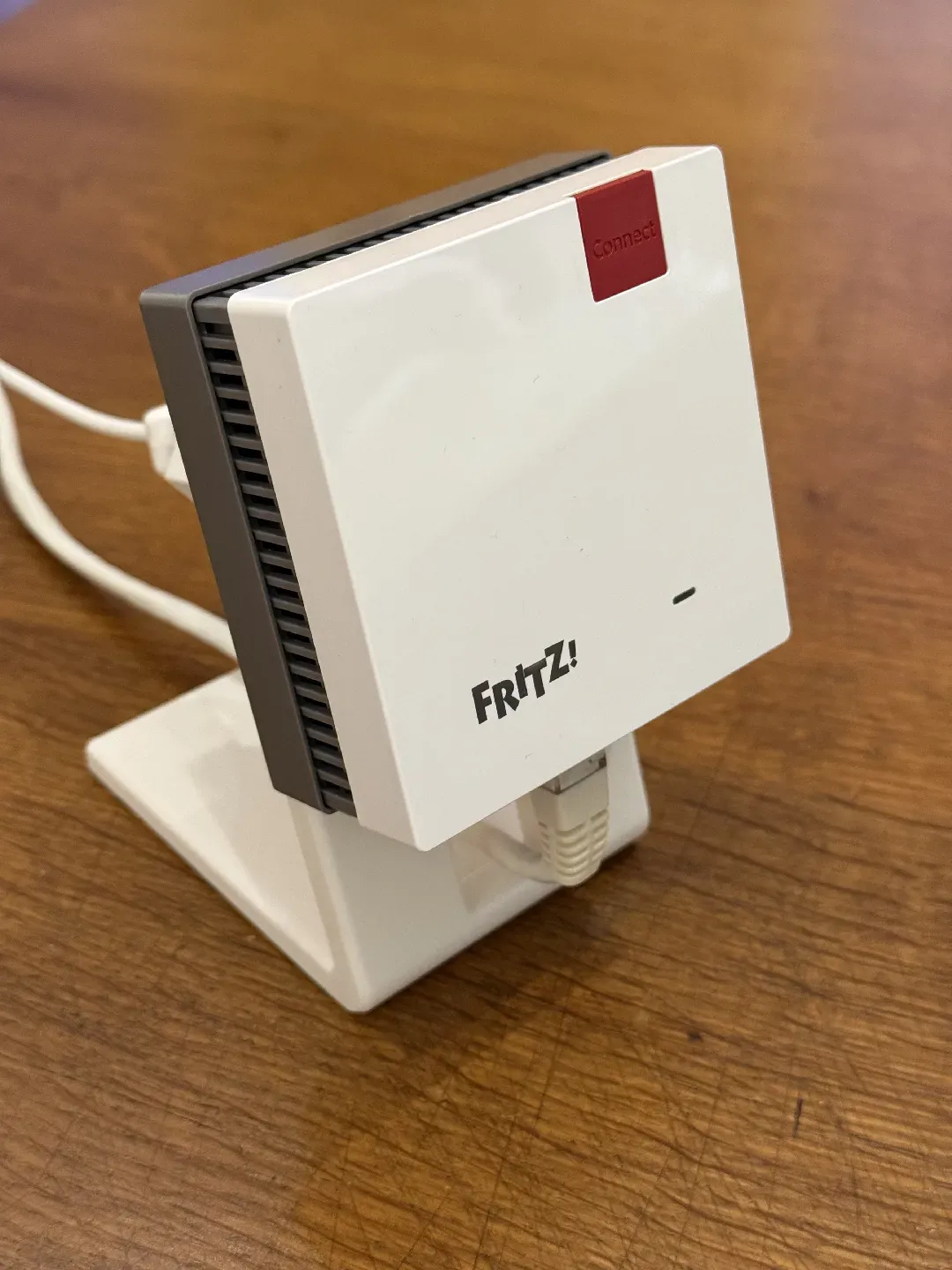

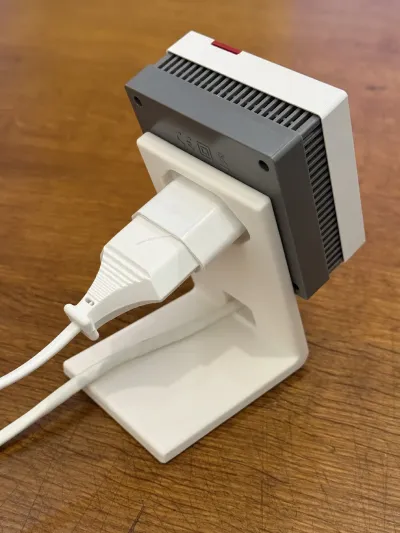

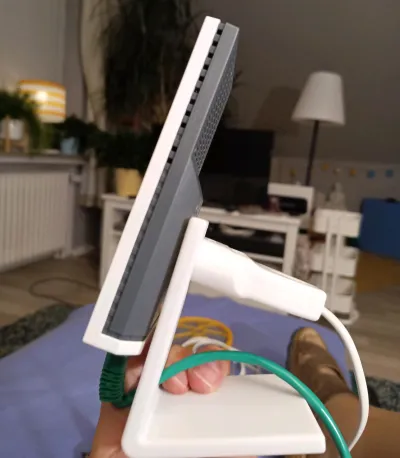

This is the one-size-fits-all repeater stand for all the wall plugged AVM Fritz!Repeater and FRITZ!Smart Gateway. All you need is a Euro plug extension cable.



Compatibility list
- all wall plugged AVM Fritz!Repeater (article numbers in brackets)
- 600 (20002853)
- 1200 (20002854)
- 1200 AX (20002974)
- 1750E (20002686)
- 2400 (20002887)
- AVM Fritz!Smart Gateway (20003012)



Print

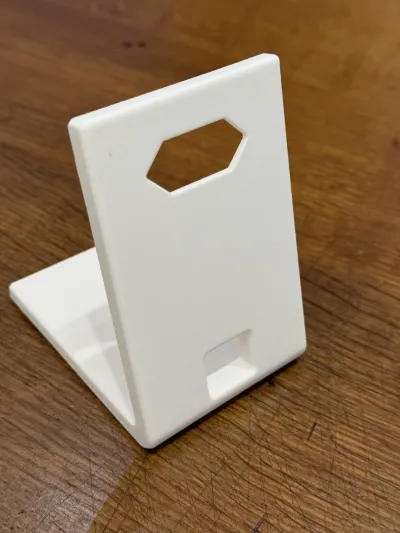

Print the part lying on its side.
No supports needed.
Print with 15-20% gyroid infill and 3-4 perimeters / outer walls.
Use brim if you don't have excellent bed adhesion.


Do you like my work? I would be very happy if you would support my work on Ko-fi.



Differences of the remix compared to the original

  • adjusted dimensions to fit all the AVM repeaters easily
  • enlarged cable bushing to fit a USB cable for FRITZ!Smart Gateway
  • accuracy of fitting tested with all repeater models and the smart gateway

Originality of the Model

The author declares that this work is their personally remixed model

Original creator:
zuze1
Adaptation source:https://www.thingiverse.com/thing:4728910

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license
