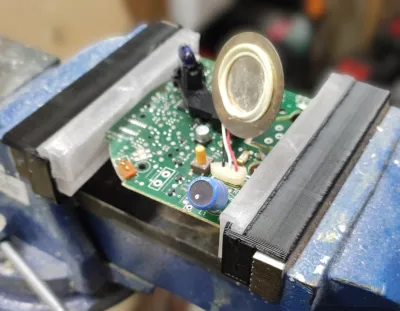

An Adapter for your vise/clamp to hold onto parts wich should not be pressed together by hard metal

→ print the Holder out of any hard material like pla, petg or …

→ print the insert out of tpu



  • print 2 of each (Holder and Insert)

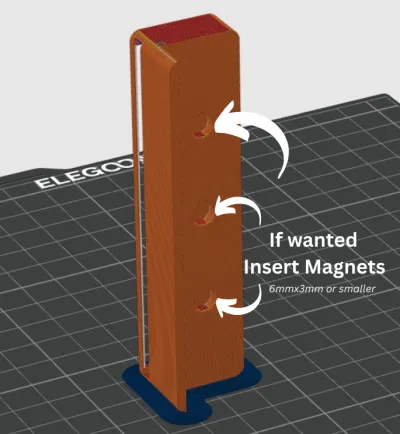

  • use 6x 6mmx3mm magnets (reverse polarity on the other side to let them snap together for storage)
  • Magnets: https://amzn.eu/d/88l2noK (others same size or smaller are fine too | or edit step file for your needs)
  • Glue the magnets

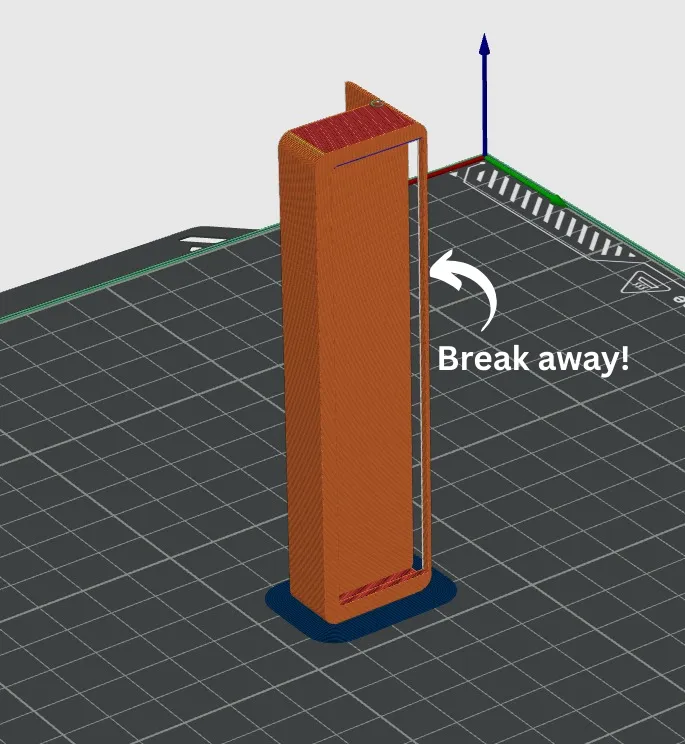

  • break away the little built in support (marked on the picture)

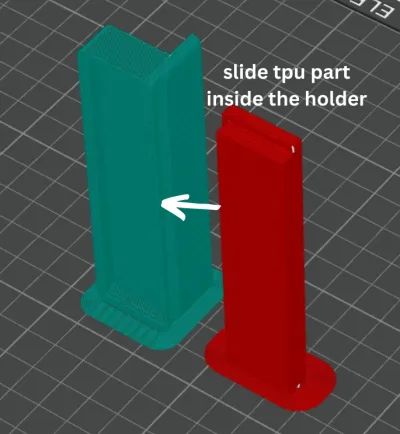

  • slide the tpu insert in the holder

if not the chase: orient the 3D model standing with the tip of the drop pointing to the ceiling (see picture 3)

Use the print profile or:

Adjust infill an top layer count based on your need of softness





Bill of materials

  • Name
    Quantity
    Notes
  • 1
    Magnet
    6
    6x 6mmx3mm or smaller ( https://amzn.eu/d/88l2noK)

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license
