Parametric Milwaukee Packout Low-Profile & Compact Low-Profile Case Labels

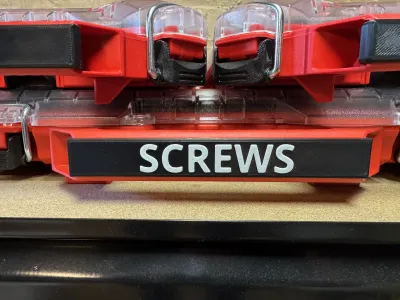

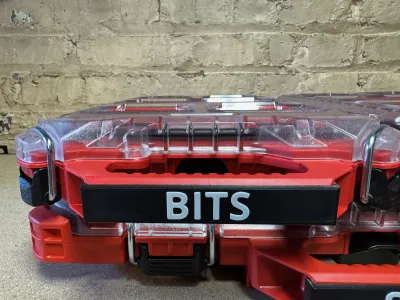

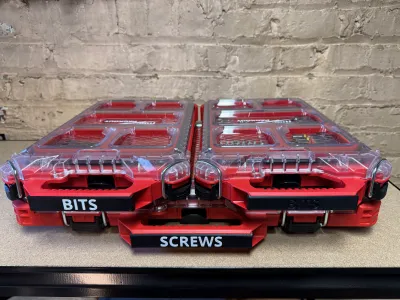

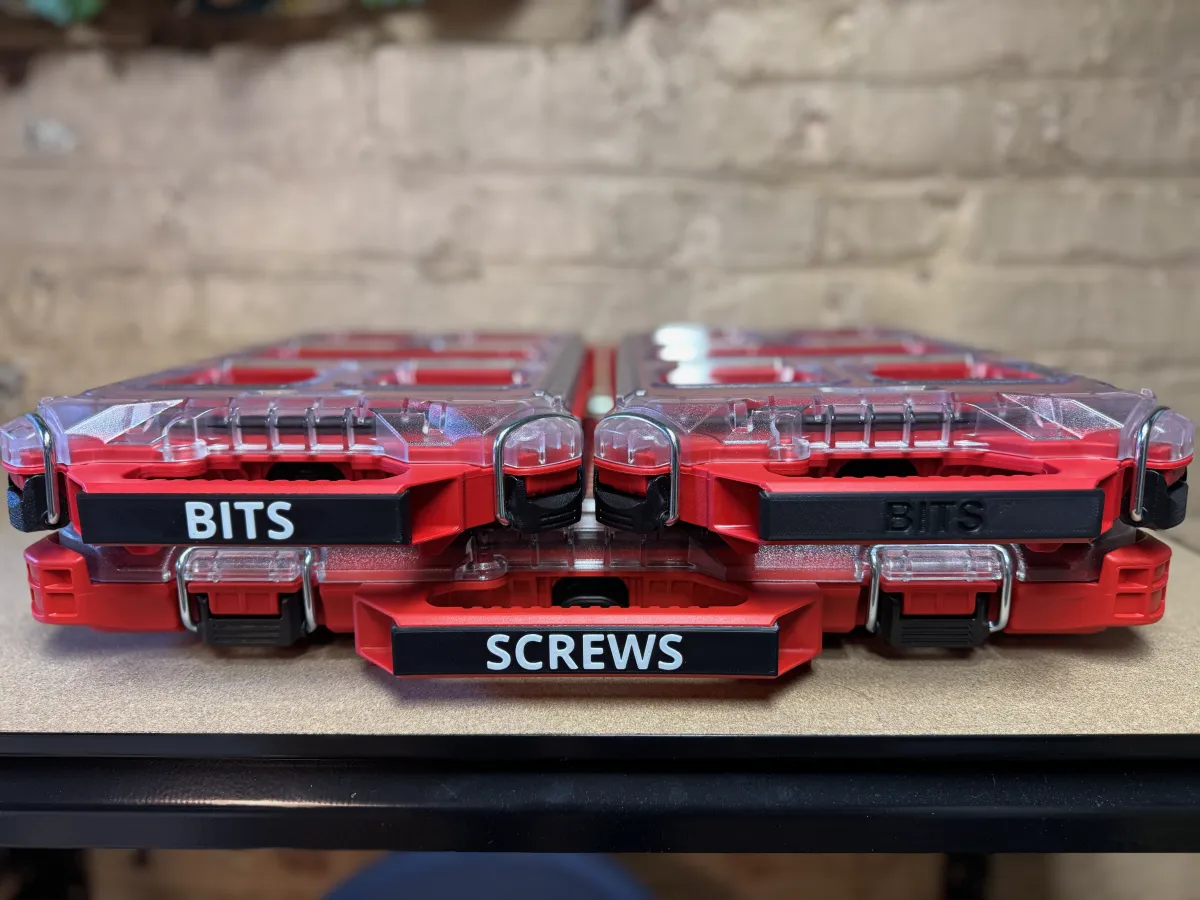

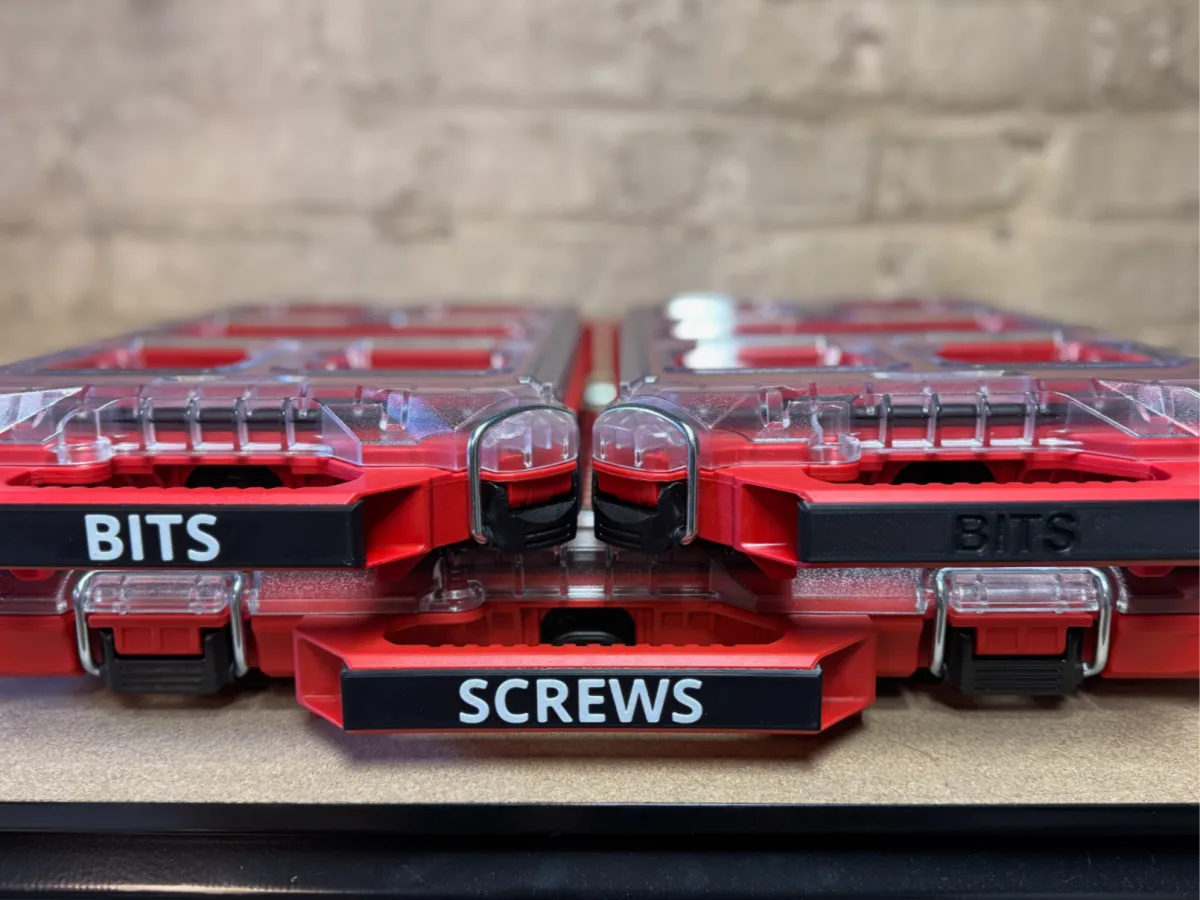

This parametric model allows you to create customized labels for Milwaukee Packout Low-Profile and Compact Low-Profile handles. You can easily adjust text, font, size, and fit to personalize your organizer cases. Labels can be engraved into the handle or printed on the surface for enhanced visibility.

Features:

✅ Fully Customizable – Modify text, font, size, thickness, and color to fit your style.

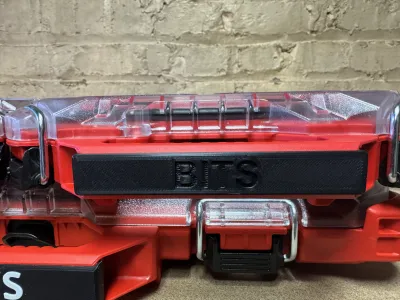

✅ Raised, Engraved, or Flush Text – Choose between a raised label, embedded engraving, or flush text. Engraved text can be a different color from the handle as well.
✅ Adjustable Handle Geometry – Fine-tune length, width, and height for a perfect fit.
✅ Custom Catch Settings – Adjust tightness for secure installation. Normal works the best for me
✅ Smooth, Rounded Edges – Enhanced design and comfort.

Compatible Milwaukee Packout Organizers:

🔹 Compact Low-Profile (5 Compartment, 48-22-8436)
🔹 Low-Profile (11 Compartment, 48-22-8431)

Customization Options:

• Case Type – Choose between compact low-profile and low-profile.
• Text & Font – Customize label text, font style, size, and thickness.
• Label Style – Select engraved (embedded), raised (printed), or flush text.
• Color Options – Adjust handle and label colors.
• Catch Fitment – Modify catch tightness
• Label Length Adjustments – Scale label length by percentage.

Printing Recommendations:

🖨️ Engraved Text Labels – Print face-down on the bed without supports for a clean, precise engraving.
🖨️ Raised Text Labels – Print face-up with tree supports to maintain text clarity.

🖨️ Flush Text Labels - Print face-down on the bed without supports. Arachne wall generator
🖨️ General Settings – Use 15% infill for durability.
⚠️ Handling Tip – Avoid bending the label when removing the print from the plate.

License & Credits:

📜 Licensed under Creative Commons - Attribution - Share Alike (CC BY-SA).
Originally inspired by Benjamen Johnson’s Low-Profile Packout Handle Label – details are available here.

Remix Changes:

• Added text engraving directly into the handle.
• Enhanced handle geometry with smoother edges.
• Updated to OpenSCAD 2024.12.11 for improved compatibility.
• Uses BOSL2
