Black and White Dragon_01
By Kimball Marston
© 2025-07 Kimball Marston and Mars-TonFoundries
Visit our Store for Bookmarks at:
Mars-TonFables.com

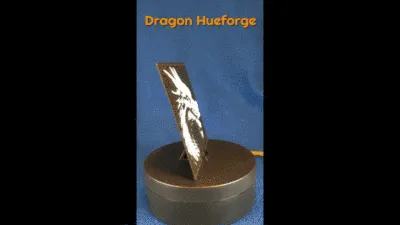

This is a Hueforge Filament Painting using only two colors. This makes it easy to print for those who don’t have an automatic filament changer. This can be done by adding a pause to the print at layer 9 or if your slicer has a change filament option you can use that.
Start with a solid black color filament and then at layer 9 (0.8mm) swap to a white colored filament. Preferably one with a high transmission distance rating.
Some common white filament with a high transmission distance are as follows:
    Bambu Lab PLA Basic White: TD=5
    Sunlu PLA Basic White: TD= 7.5
    Creality PLA Basic White: TD= 10.4
    Elegoo PLA Basic White: TD= 5.5
    ESun PLA Basic White: TD= 5
    Polymaker PLA PolyLite White: TD= 5
(These are just some reported TD readings. They can change per roll, brand, mixture, batch and a ton of other factors. But any white should do fine.)
I use Sunlu, Jayo, and TecBears Filaments (These are all produced by Sunlu.)
I also use Polymaker HT-PLA black for our bookmarks and other commercial Hueforge products. I would recommend but it’s not necessary.

The Base image is AI generated using my personal image generator. It is then edited and converted into an STL using Hueforge. The HueForge Settings and Filament Painting is done manually using the software.

Other Settings:

Nozzle: 0.4mm
Bed Type: Smooth High Temp
(You can use any Bed Type you want just be sure to change it.)
Layer Height: 0.08mm
First Layer: 0.16mm
Wall  Loop: 1
Top Layers: 0
Bottom Layers: 99
Sparse Infill Density: 100%
Sparse Infill Pattern: Rectilinear
Prime Tower Enabled:
    Width: 10mm
    Prime Volume: 10mm³
    Brim Width: 3mm
Brim Type: Mouse ear (Optional)
    Brim Width: 5mm
    Brim-Object gap: 0.1mm
    Brim ear max angle: 125
    Brim ear detection radius: 1mm
These are basic settings I used for all my Hueforge files.

This is the instructions from HueForge:

Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm

The Model is 100x100mm in size
You may print at higher layer heights below the Base Thickness of 0.56mm
The Max allowed Thickness is 1.76mm and the Actual Thickness is 1.76mm

Filaments Used:
    #000000 PLA+ Sunlu Black  Transmission Distance: 0.6
    #ffffff PLA+ Sunlu White  Transmission Distance: 5
This print uses 2 unique filaments

Swap Instructions:
    Start with Black
    At layer #9 (0.8mm) swap to White for the rest.

Please Comment and Like if you enjoy this type of Prints.
Commercial License will be forth coming so stay tuned.
