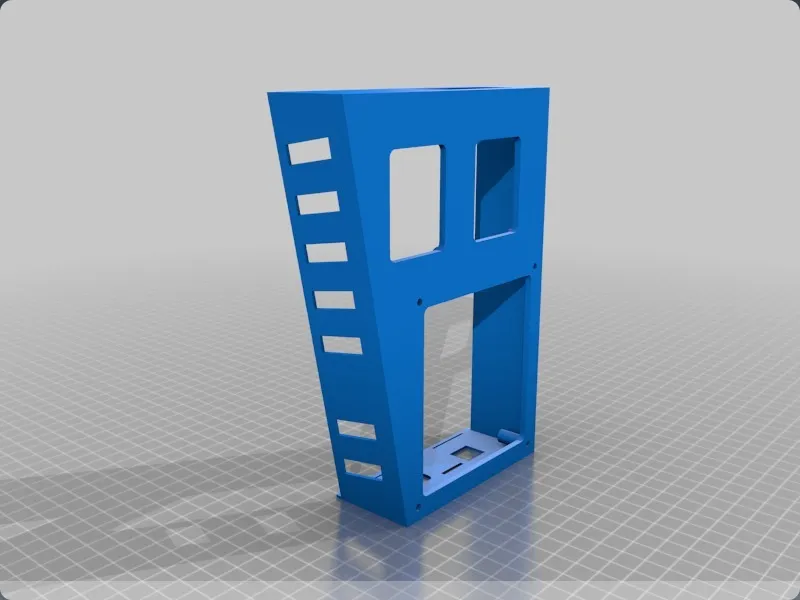

Hey there, so i decided to remix (rebuild) the Case for a couple reasons.

1. I only need one MOSFET, a dedicated (External) MOSFET for the Hotend is overkill imho.
2. I Wanted the Openings for the Cable routings to be bigger.
3. Several other minor Changes
   ... which leads to...
4. no .F3D file for the original available. (thats why i rebuild it instead of remixing)

The case in general is pretty nice, since i wanted to add or remove a couple things my Version is somewhat different.

PLEASE NOTE:

The original Z-Endstop is NOT compatible with this case or its original, the right of the 2 screws fixating the Endstop is blocked by the case, its nothing you can quick fix with for example a Lego block or similar. :)

If you rather want to put another hole into the Case so the original Endstop works, feel free to, yeah an F3D file is included. :)
(oh and yeah i aint no Fusion360 Wizard... so bare with me please.

Give the original Designer some Credit, all i did was adding onto his design.

Cheers

Update:

reuploaded all 3 files due to an issue i found out about after a friend printed the case.
my print off the original file works fine but the newer Version is a little more forgiving when it comes to tolerances.

Update 4 July 2017
Added a Dual Mosfet Version by Demand (Still think its unneccesary :) )

Additional Notes:

To Mount the Case and Mainboard to the frame you use the 4 M3 Bolts&Nuts that originally were holding the Mainboard in Place.

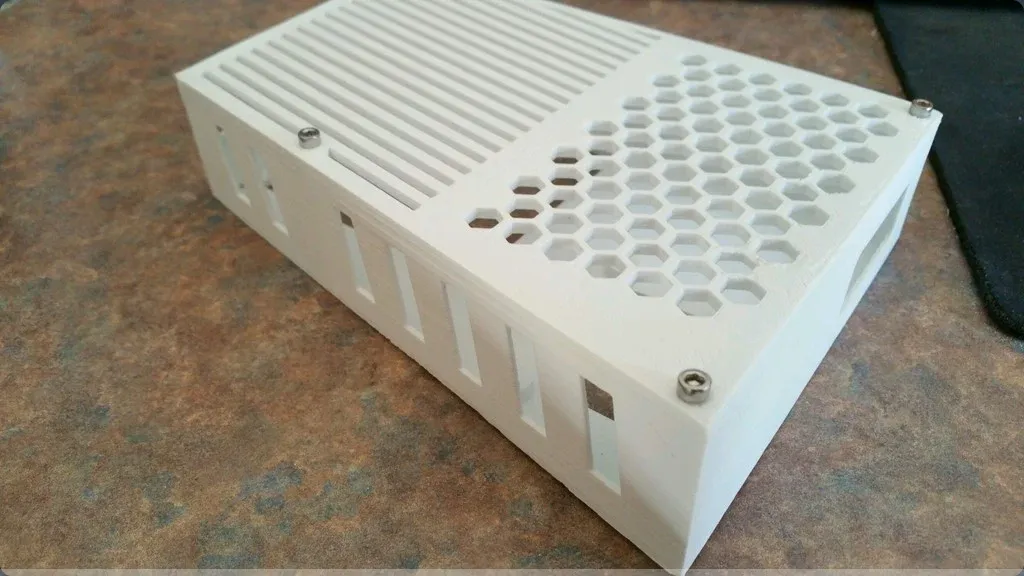

To screw the Cover onto the Case you heat and insert 3 M3 Nuts in the corresponding holes. (Couple seconds with an ordinary lighter holding it with a screw or something)

To screw the Mosfet in place you use 4 selftapping screws.
