direct extruder - mk7 gear - E3D v6 - 1.75 filament
Print Profile(0)

  • Earn points by adding print configurations

0

0

7

2

Released 2025-07-17
Details
Files(3)
Makes & Comments (0)

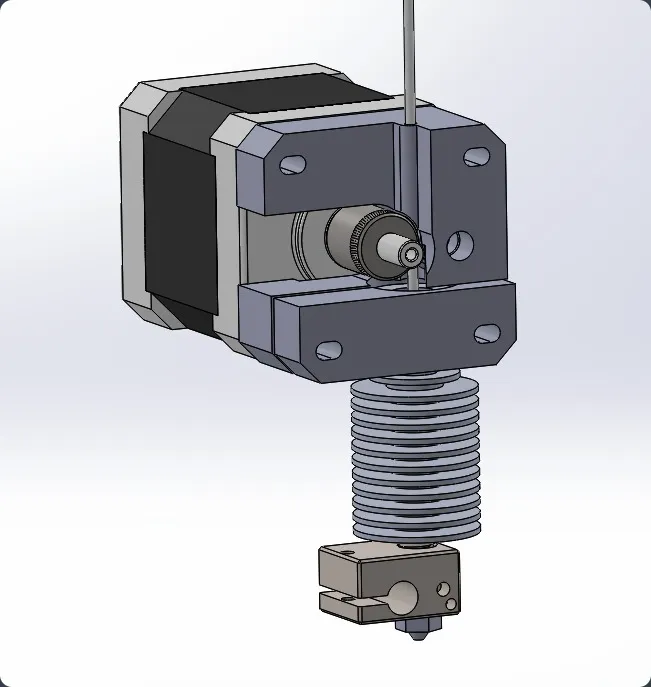

Very simple direct drive extruder using a mk7 hobbed gear, E3D v6 hotend, for 1.75mm filament.
Very compact and easy to install.
for filament compression adjust the screws in the oval holes.

Bearing used: 10x5x4

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
raziber
Reprint source:https://www.thingiverse.com/thing:2487575

This model is licensed under the following terms:

Credit must be given to the creator

Models(3)

  • direct_extruder_-_mk7_gear_-_E3D_v6_-_1.75_filament.rar

    5.67 MB

    2025-07-17

  • extruder_hotend_clamp.stl

    29.38 KB

    2025-07-17

  • extruder_main_part.stl

    170.10 KB

    2025-07-17
