THIS IS NOT A REPOSITORY OF OTHER PEOPLE'S WORK. All attachments designed myself.

Zip QuickMount(s)
The QuickMount is designed to stay on the bench through gravity alone, rather than needing to slide the part in from the side.
These use standard zip ties to attach a suction hose to the edge of the Festool workbench - These also work to attach any cylindrical shaped objects. Test one part to make sure that your zip ties fit. The contacting surface comes in multiple diameters; 20mm, 40mm, 80mm, 100mm and flat.
![]()

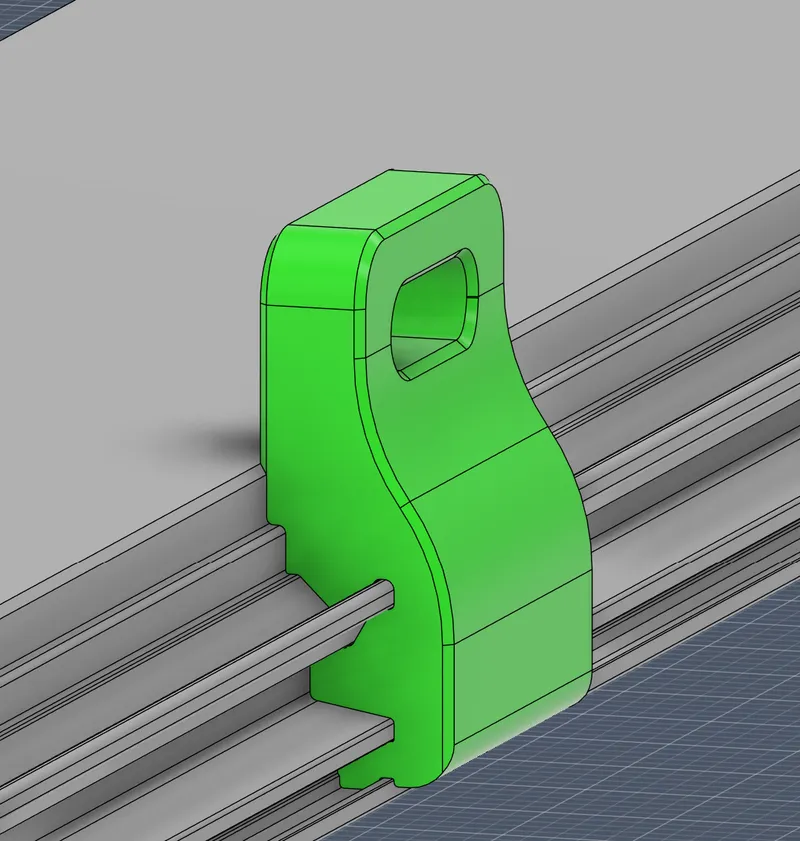

Bar Mount
Designed for 10mm velcro strap to attach a power bar to the workbench. I suggest printing two per power bar.
These can also be used for other bar-shaped objects, such as a magnetic tool bar.

Caliper Mount
Designed to fit almost all calipers by attaching using the metal part, rather than the plastic area.

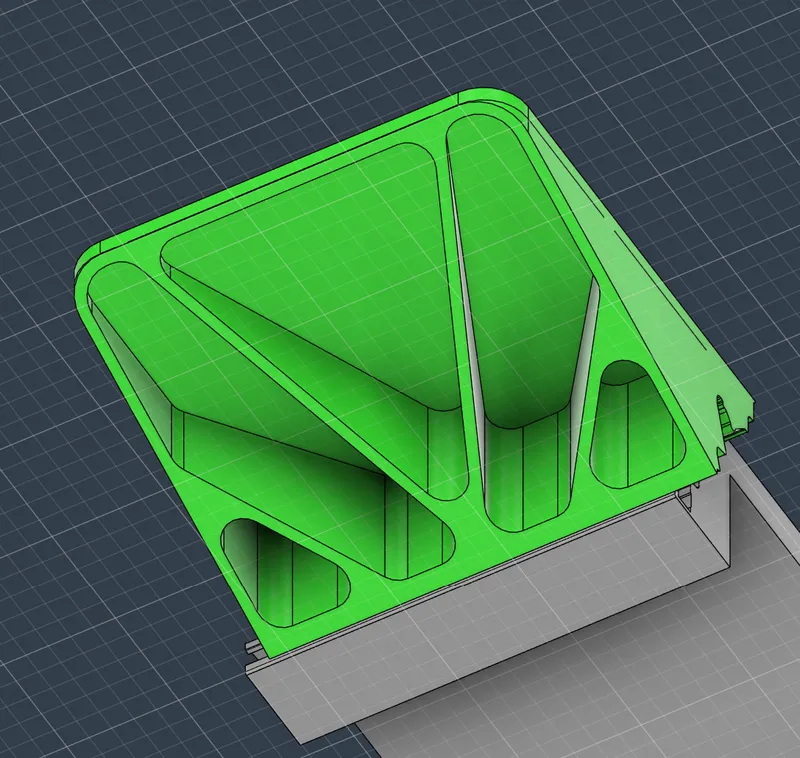

Deep Part Tray(s)
Coming in two sizes (50mm & 100mm), these have a lip to easily remove small parts such as nuts or M2.5 screws
![]()

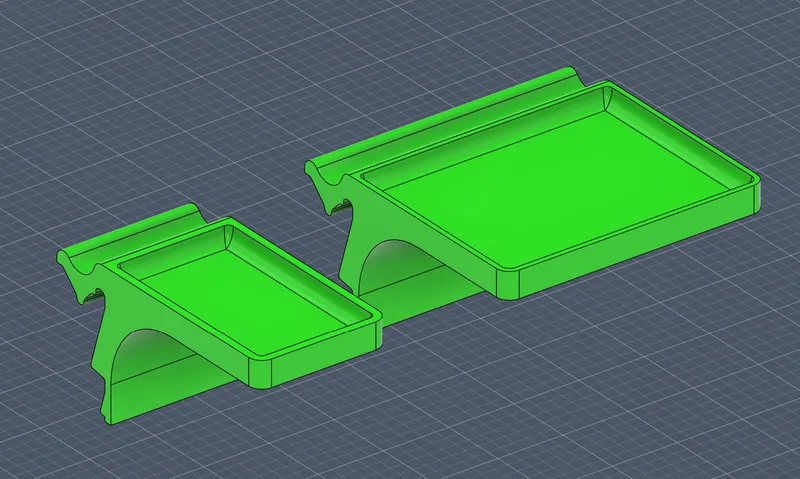

QuickMount Shallow Part Tray(s)
50*75mm, 100*75mm sizes
![]()
Nail Punch Slot
Although made for placing a nail punch, it can be used for all sorts of small items that happen to fit, such as a steel scribe, a craft knife, or even your favourite pen :-)

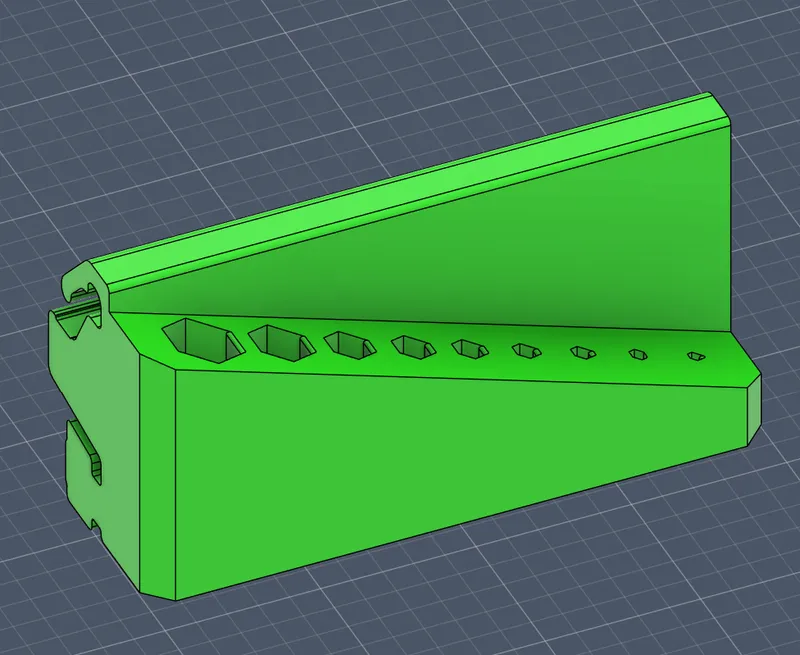

Allen Wrench Holder
Tolerences accounted for. Sizes in mm: 1, 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10
![]()

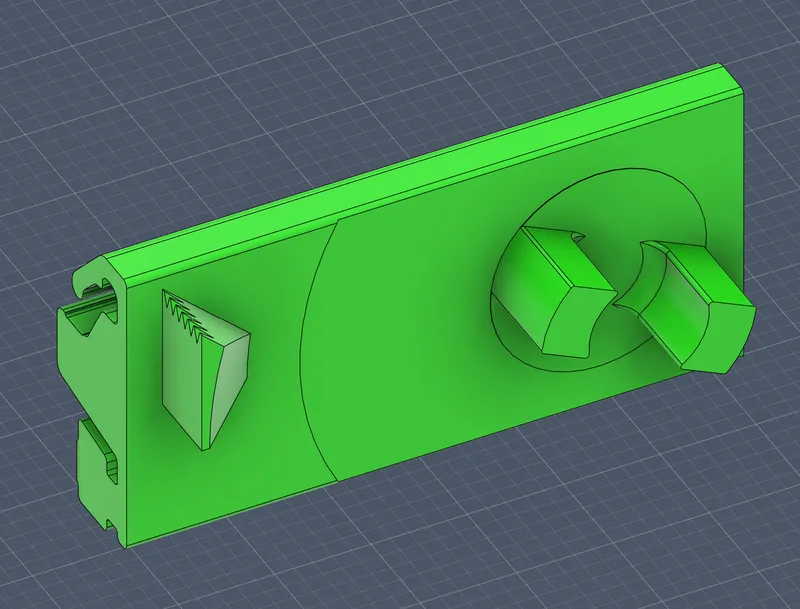

(Electrical) Tape Dispenser
Includes a built-in tape cutter
Internal diameter 35mm+, width 10mm-, tape diameter: 110mm-
![]()

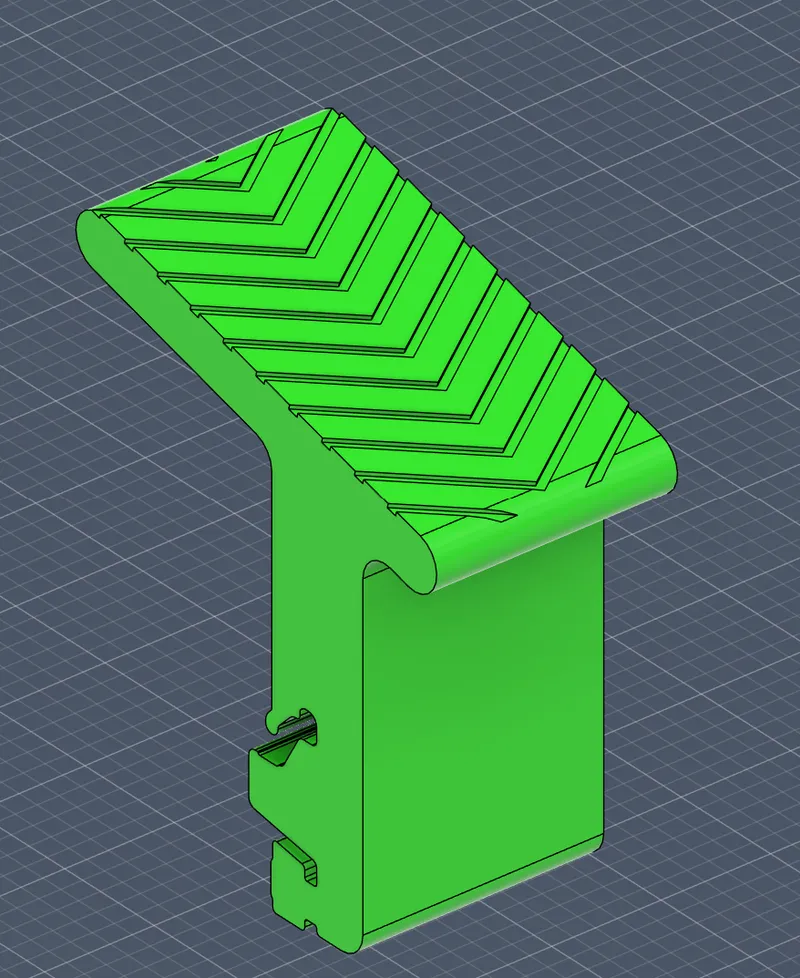

Arm Support
Made for those who work with small parts which need precision. Thick base to prevent wobble when printing with low wall counts. The channels increase friction significantly as compared to a flat surface
![]()

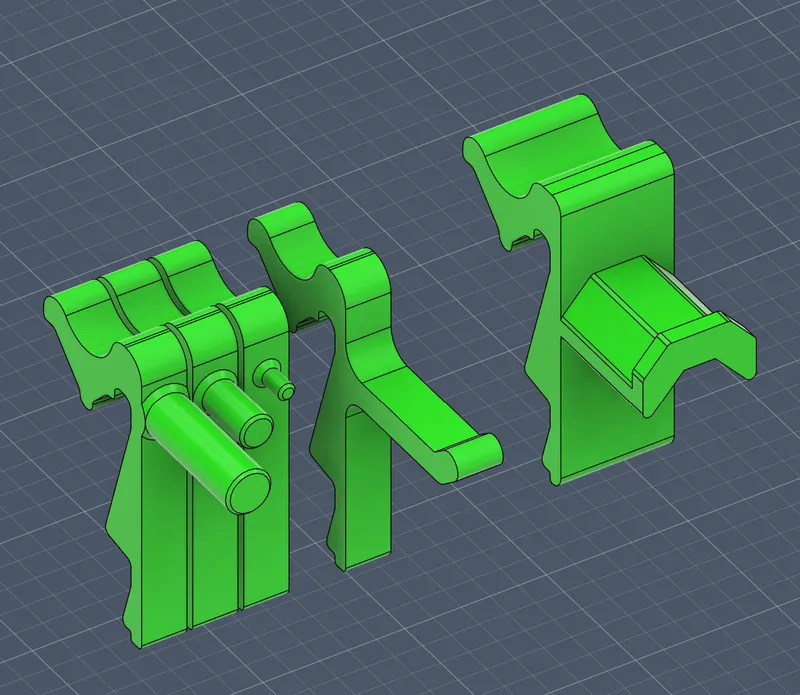

Peg QuickMount(s)
Weather for steel rules, side cutters, or rolls of tape, these parts use QuickMounts for swapping, and rearranging convinienve - especially since these don't take on heavy loads.
Pegs come in 3mm diameter, 6mm diameter, and 8mm diameter. The thinnest peg is shortened to prevent accidental snapping.
![]()

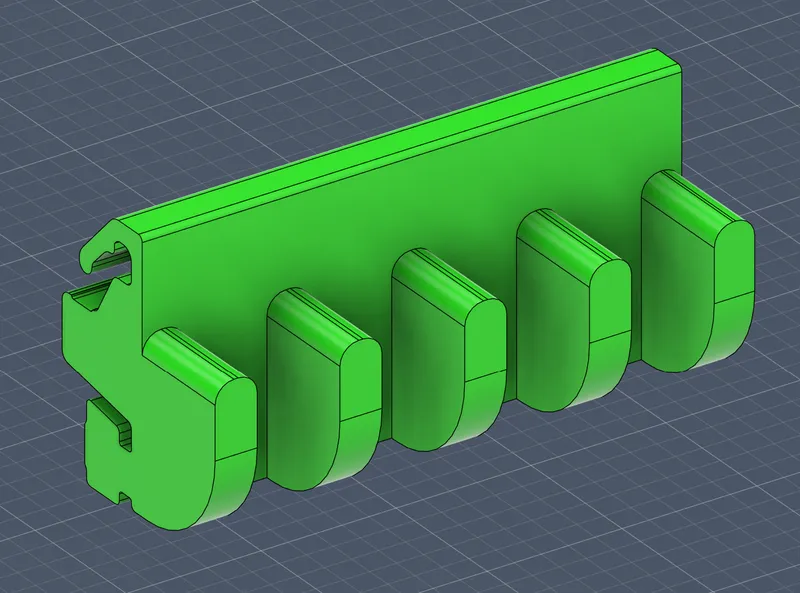

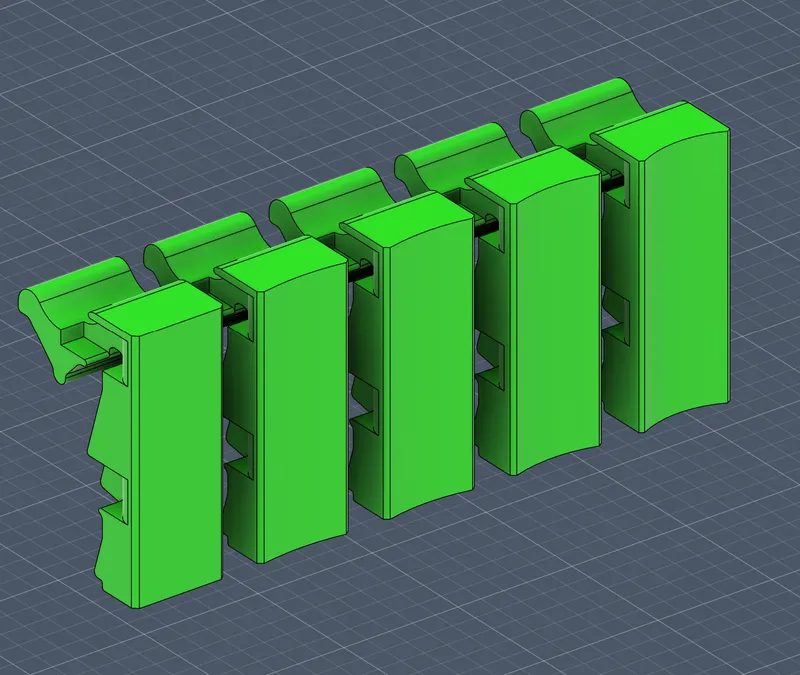

USB Cable Holder
For 5 USB cables. Cables are securely held by sliding in a bar to place.
![]()

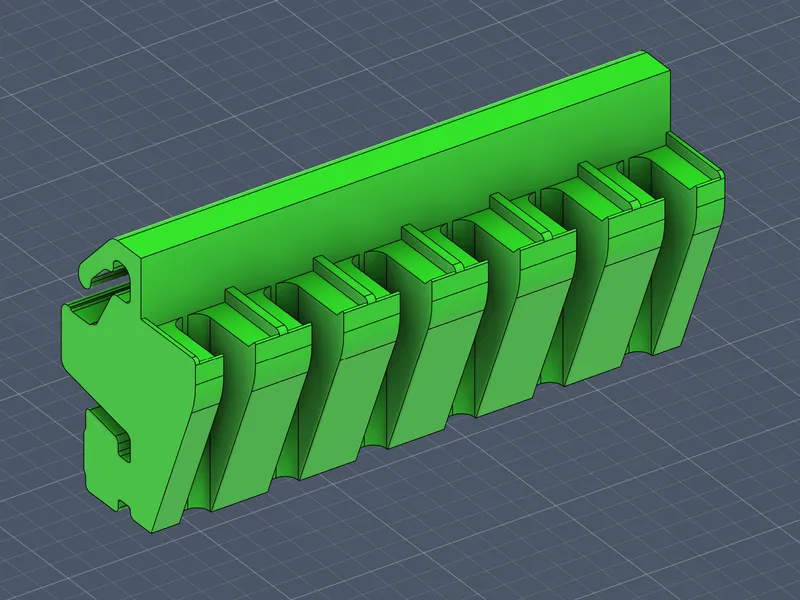

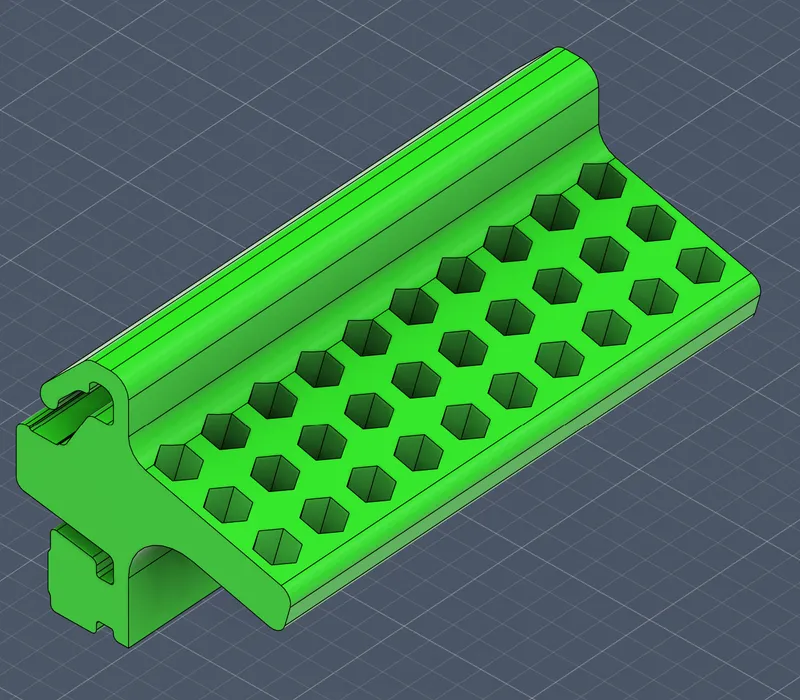

Hex Bit Storage
for 30x ¼ inch bits
![]()
Slot Mount
15mm gaps, 8mm width, 20mm depth. A solution in need of a problem
![]()

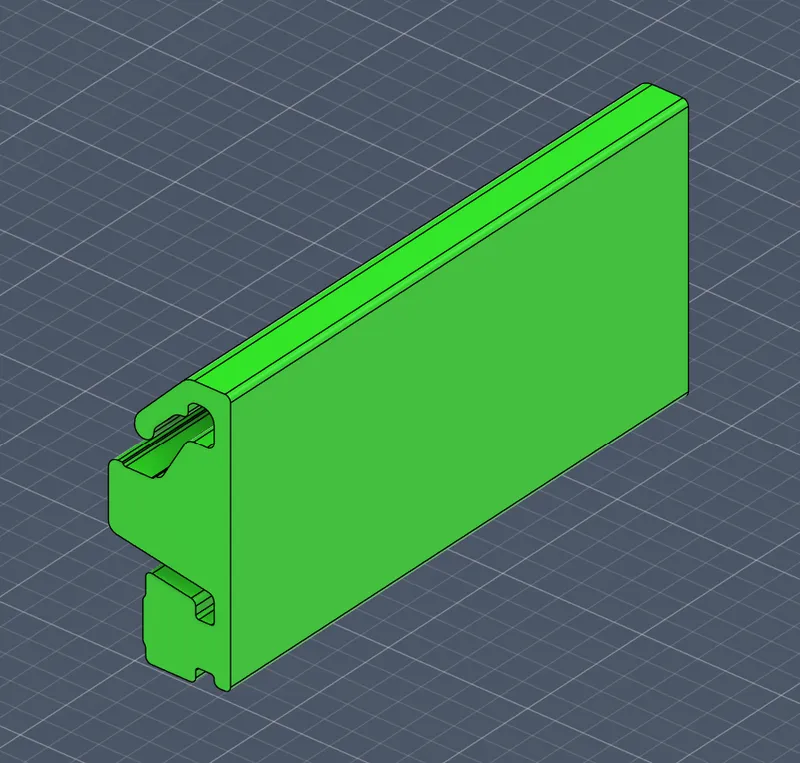

Blank Mount
Can be used for semi-permentantly glueing on whatever you wish, such as an array of magnets, gridfinity boxes, and mounts for other tools.
![]()

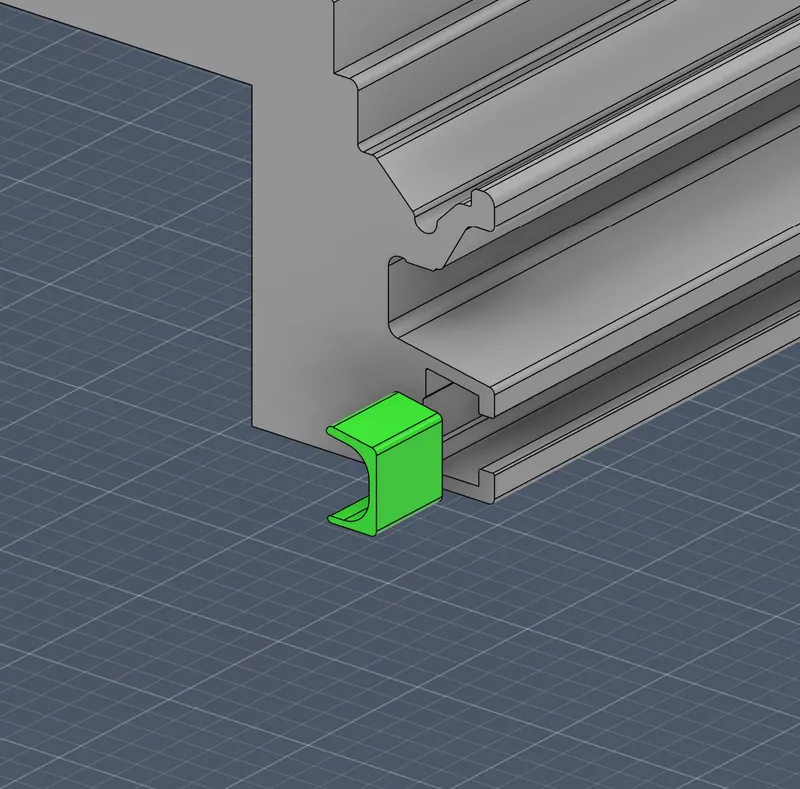

XS Cable Clip
~12*6mm channel for routing wires inside the frame
![]()

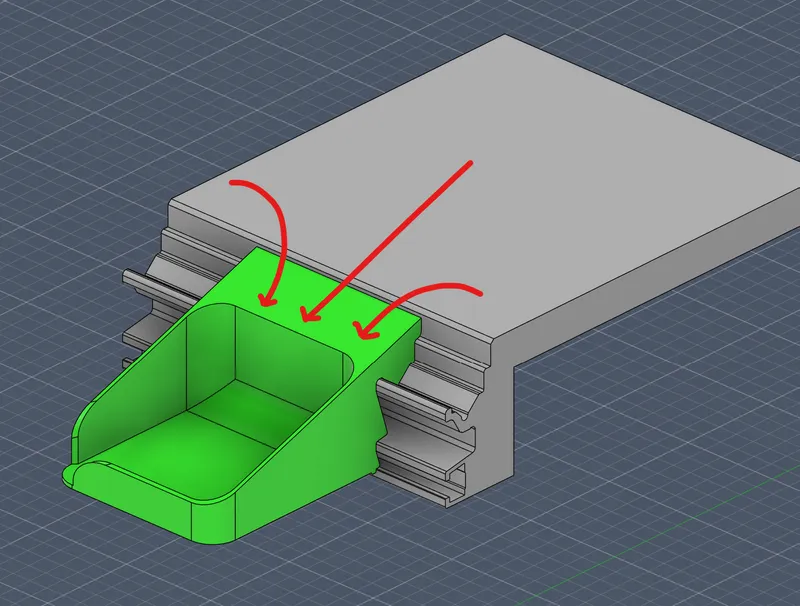

QuickMount Table Cleaner
For quickly sweeping parts, or waste into a tray. Cut off corner for easy dumping.
![]()
QuickMount Workbench Extender
200mm*200mm - lies flat with the workbench
![]()
Mini File Holder
for Six mini files. Diameter no bigger than 6mm.
![]()
Edge Limiter
Strong surface to press your project to, and prevent it from moving.
![]()
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
