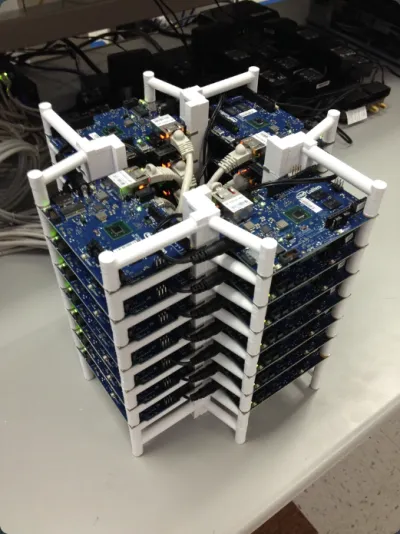

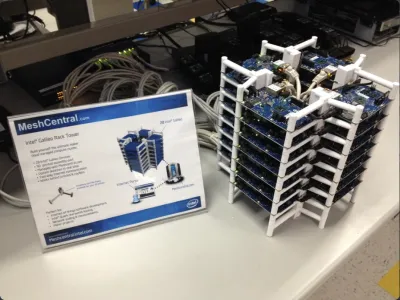

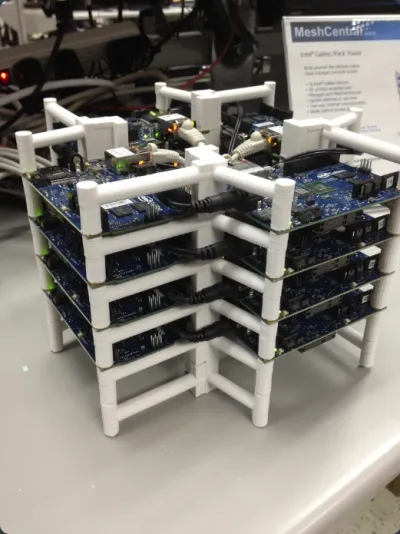

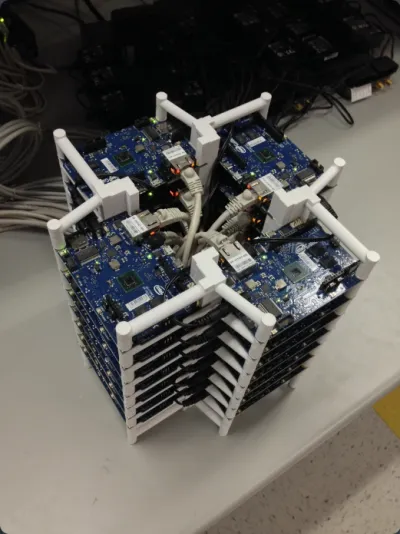

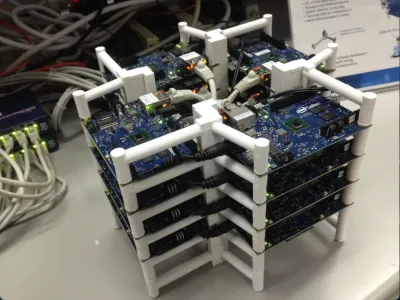

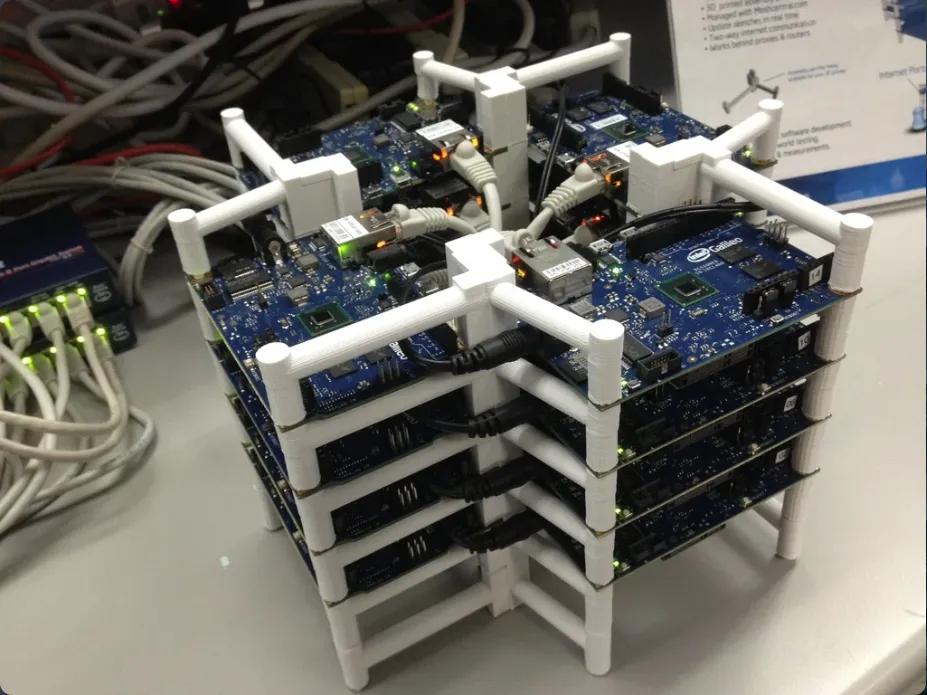

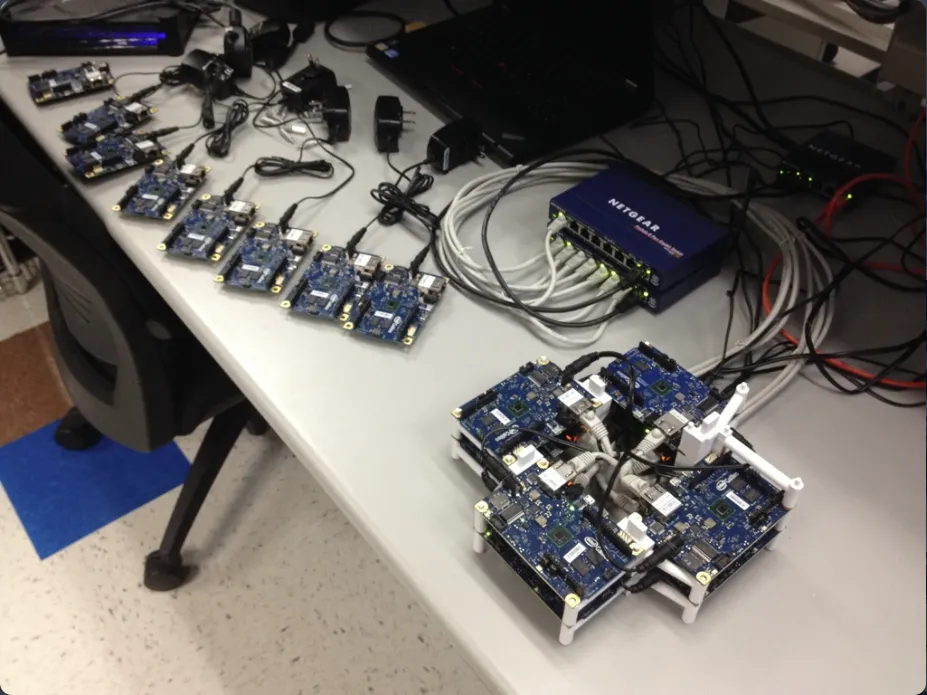

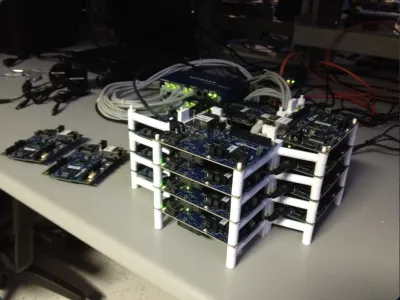

If you happen to have 4, 8, 12 or more Intel Galileo devices you can assemble them into a big tower. This design allows you to see all the boards and blinking lights while holding them tightly together. All of the network cables and power goes thru the center of the tower so you get a clean view of the boards and excellent cable management. You can then use Meshcentral.com to remotely manage all of the devices over the Internet and use Arduino Mesh management tools to push sketches easily. Included a part file will print 6 corner parts in one pass, another file with 4 top parts and the STL and Blender files. Video: https://www.youtube.com/watch?v=dQMKWrHOg4k. The original tower at 16 Intel Galileo devices, but we now added 3 more layers for 28. Also, I can confirm that this same part will work with the Galileo 2. The Galileo 2 is longer but the same width, so as long as you have all the same boards of the same type, you just get a different size tower.
Originality of the Model
The author declares that this work is their personally shared model
This model is licensed under the following terms:
No Copyright.
Models(5)
- Intel_Galileo_Corners.blend
680.08 KB
2025-06-14
- Intel_Galileo_Corners_6x.STL
1.05 MB
2025-06-14
- Intel_Galileo_Corners_6x.thing
354.87 KB
2025-06-14
- Intel_Galileo_Tops_4x.thing
104.85 KB
2025-06-14
- Intel_Galileo_Tops_4x.STL
312.58 KB
2025-06-14
