Summary

I needed a pair of simple push blocks to be used with a jointer. Couldn't find something similar to what I was looking for so did the next best thing.

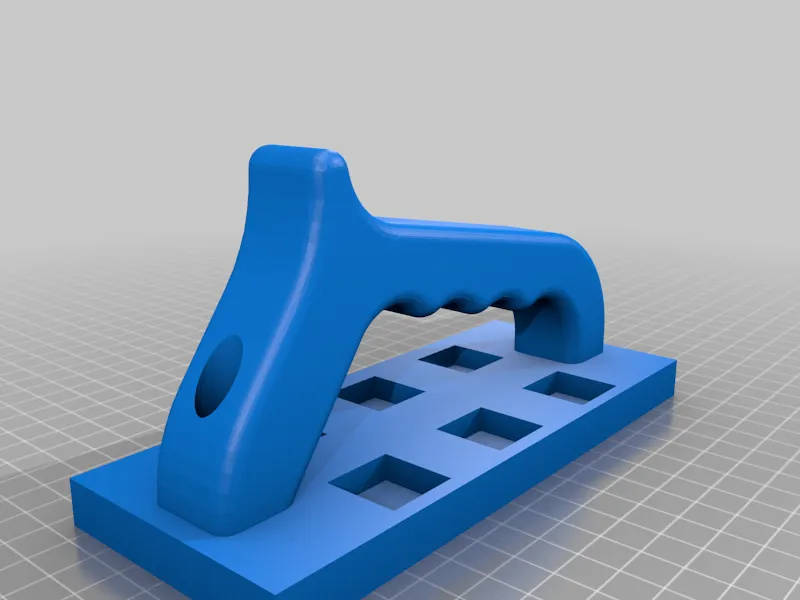

This design is a simple push block mostly to be used in woodworking. I borrowed the handle from design www.thingiverse.com/thing:2056511, and sunk it a couple of millimeters into the base.

The squares are there to save filament. Finished design is about 160 mm x 70 mm

I used support set to everywhere, and the handle came out pretty good, with only a minor cleanup

I used contact cement to attach scouring pads to the bottom for extra grip. Any other rubber or method of attachment would also work.

No hardware required for assembly. This prints as a single piece.

Print Settings

• Rafts:

  No

• Supports:

  Yes

• Infill:

  20

• Filament brand:

  Any

• Filament color:

  Your choice

• Filament material:

  PLA

• Notes:

  Infill was set to 40% with 2 mm lines
  Support set to 70 degree overlay angle using lines as a support pattern with a density of 15%
