BigTreeTech HDMI5 Mount for Elegoo Neptune 3 Pro/Plus/Max
Print Profile(0)

  • Earn points by adding print configurations

1

1

175

5

Released 2025-05-11
Details
Files(5)
Makes & Comments (0)

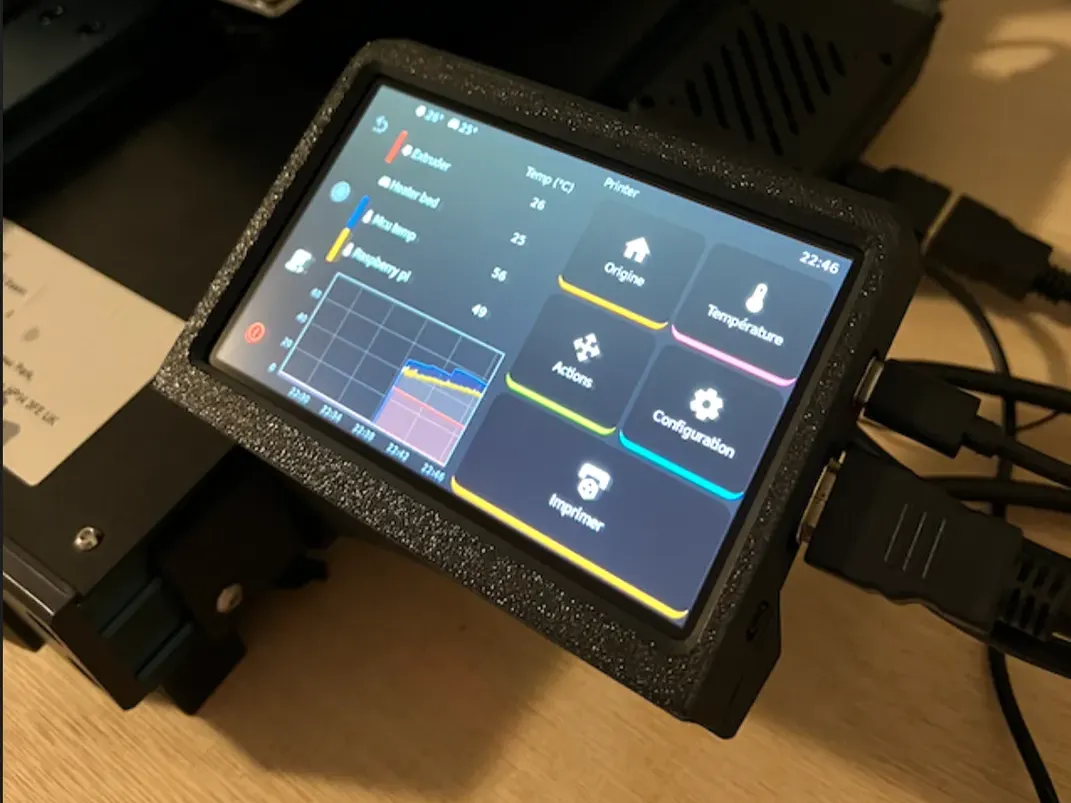

It's a mount for BTT HDMI5 screen.

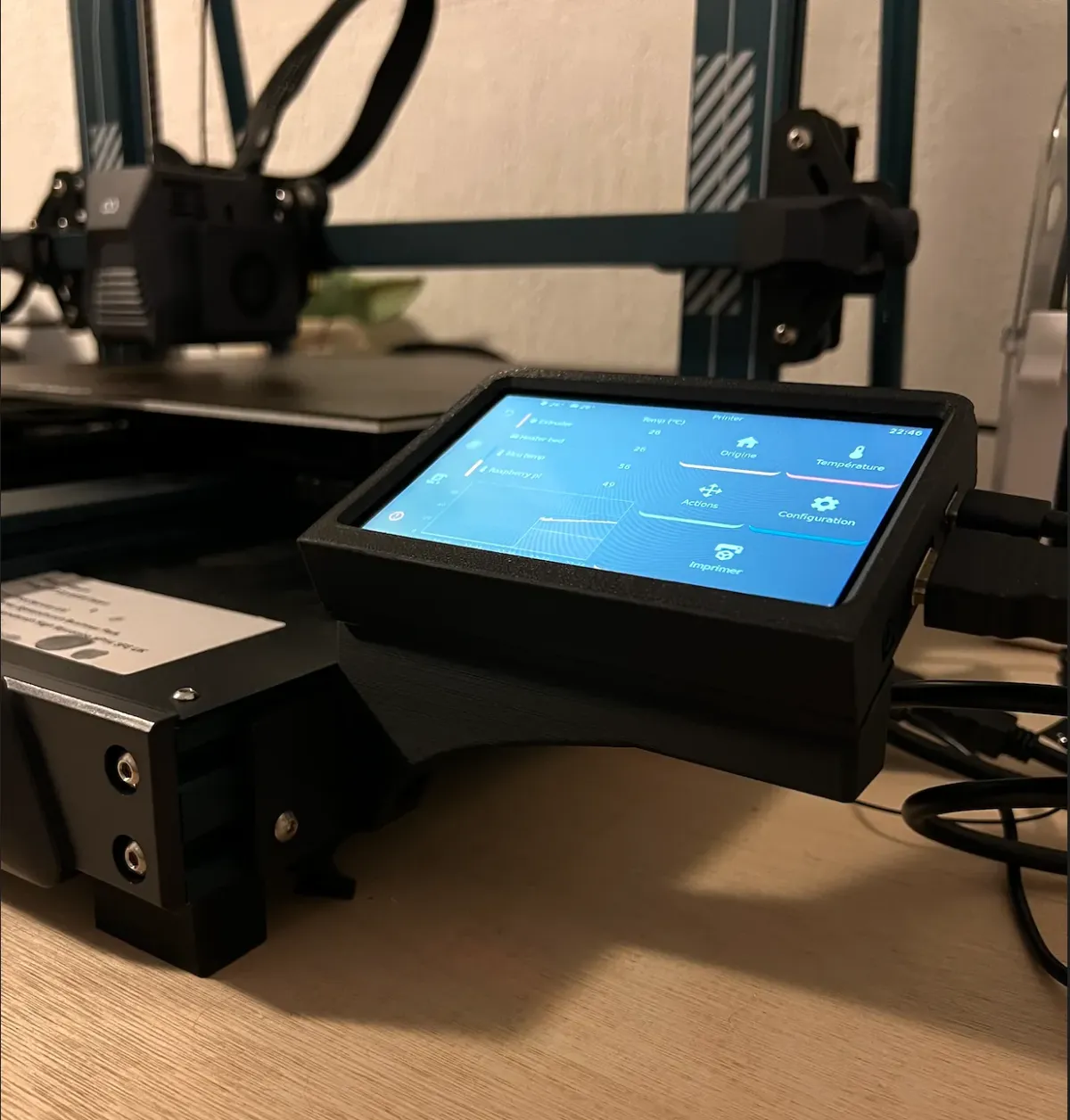

It is designed to be mounted on Elegoo Neptune 3 Pro/Plus/Max

It is designed to use M3 threaded inserts in the bracket with M3 screw to connect the screen case to the mount.



UPDATE: You can now choose to mount the screen in Portrait or Landscape Mode. The V3 Bottom part can be used for either orientations. Then you have to print the corresponding mount in the list.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    M3 heat inserts
    5
    5 for the landscape orientation or 4 for the portrait one
  • 2
    M3 screws
    5
    5 for the landscape orientation or 4 for the portrait one

Originality of the Model

The author declares that this work is their personally remixed model

Original creator:
M.Kayed
Adaptation source:https://www.printables.com/model/313533-bigtreetech-hdmi5-screen-mount-ender-3-pro-v2-s

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license

Models(5)

  • HDMI5_CASE_BOTTOM_V2.stlDesigner

    214.05 KB

    2025-05-11

  • HDMI5_CASE_BOTTOM_V3_BI_ORIENTATION.stlDesigner

    259.75 KB

    2025-05-11

  • HDMI5_Case_Top_V2.stlDesigner

    153.79 KB

    2025-05-11

  • HDMI5_MOUNT_V2_LANDSCAPE.stlDesigner

    241.39 KB

    2025-05-11

  • HDMI5_MOUNT_V2_PORTRAIT.stlDesigner

    242.76 KB

    2025-05-11
