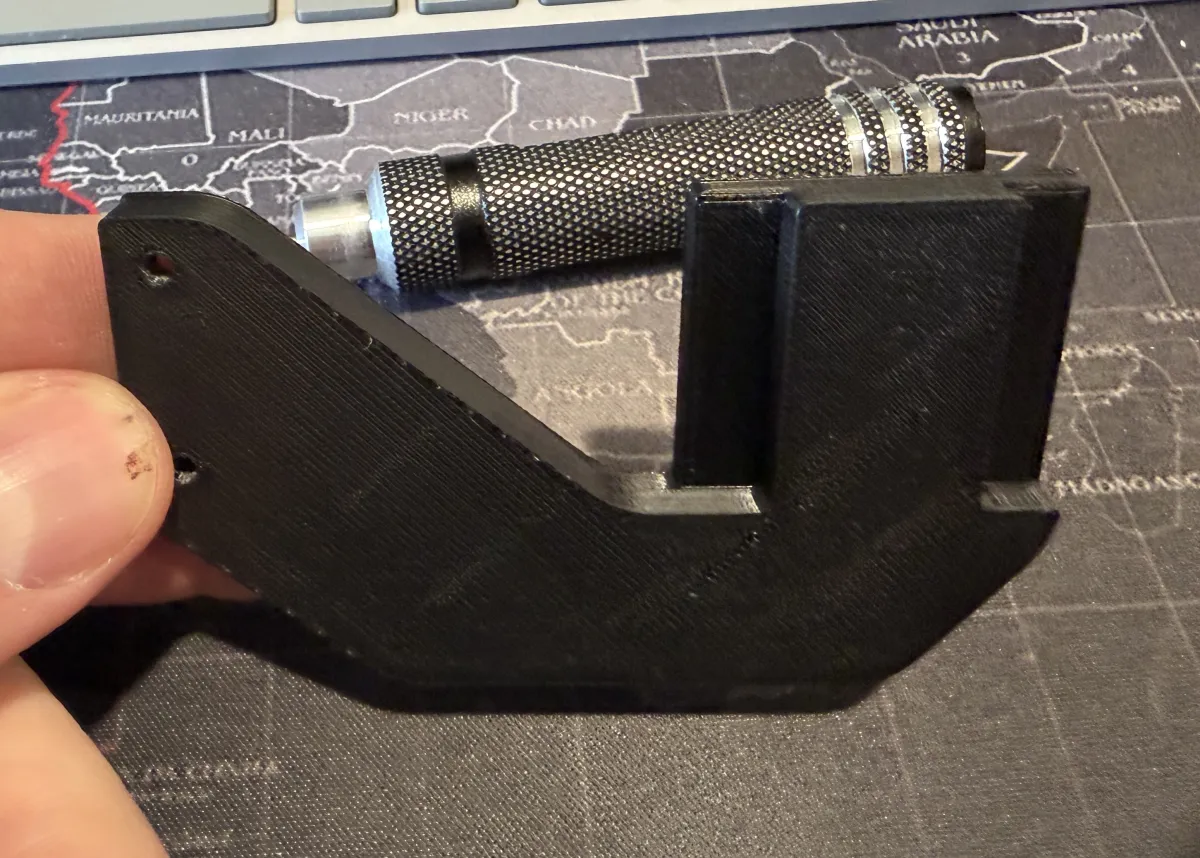

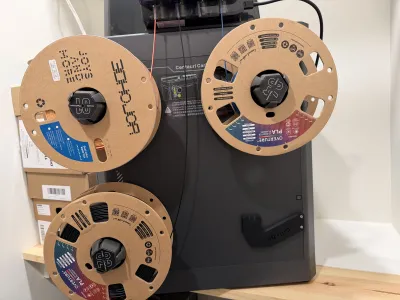

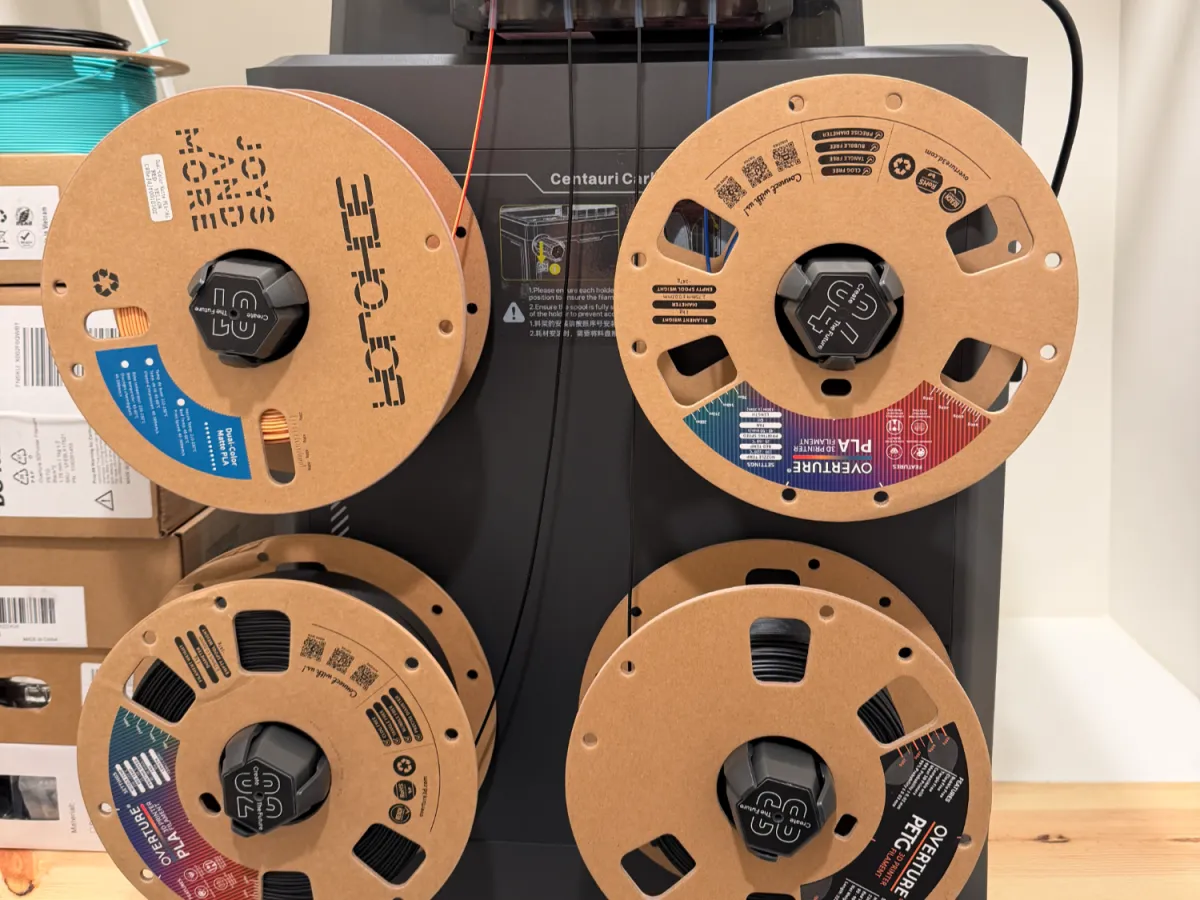

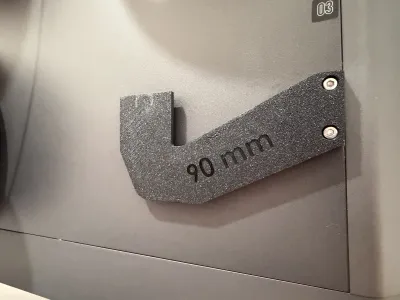

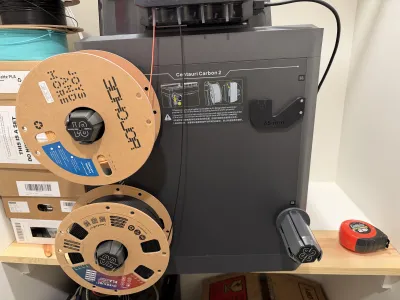

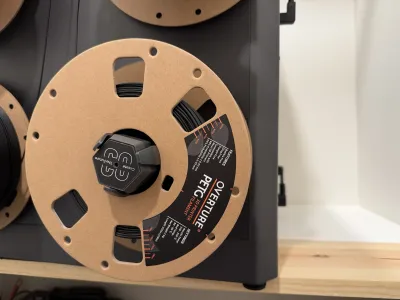

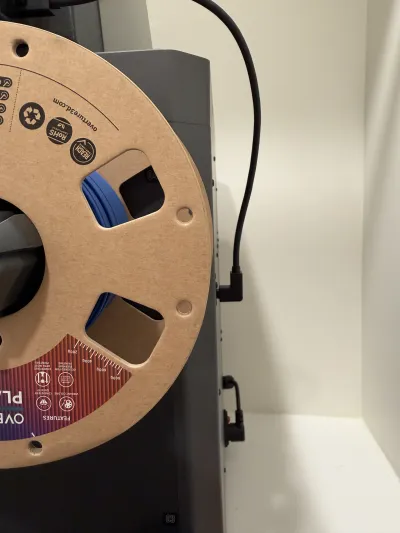

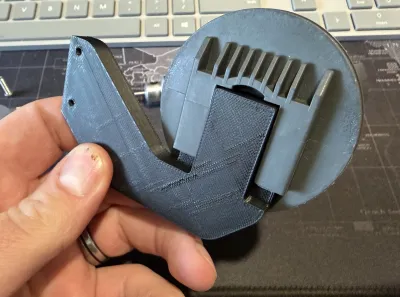

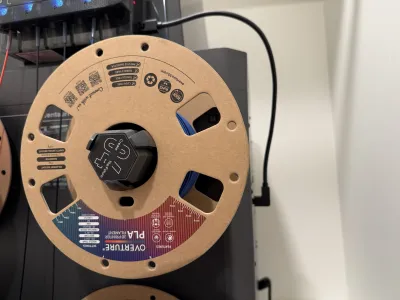

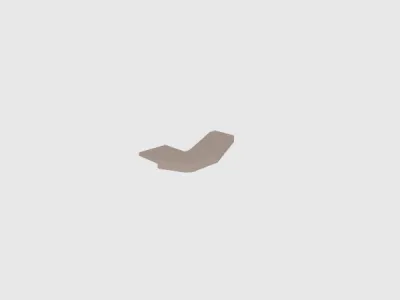

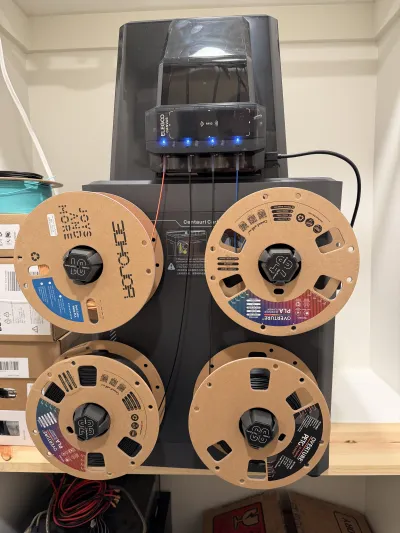

What This Is - A CANVAS (AMS) relocation bracket for spools 3 & 4 for the Elegoo Centauri Carbon 2. Spool 4 is the top right location and moved inward by 65 mm (2.5 inches) and a filament roll is roughly flush with the rear of the printer. Spool 3 is bottom right location and moved inward by 90 mm (3.5 inches) and a filament roll is roughly flush with the flat of the panel and prior to the chamfered corner of the printer. Both locations use existing hardware from the included and discarded mounts.

Why It Is Needed  - The Elegoo design of the multi-color system extends the rolls of filament beyond the rear of the printer and no longer fits on my shelf. It also increases the printer footprint significantly over the original Centauri Carbon.

Inspiration - This is my own original SolidWorks design as the printer went on sale Jan 26th.

Print Settings
Print with the letters down, and nearly any print settings will work here. I used the defaults from Elegoo Slicer plus the below changes.

• 3 bottom & 4 top layers since these provide the structure when oriented and installed.
• No support and no raft/brims. (Little cleanup for the recessed shoulder screw head.)
• Infill was Cubic at 50%

Other Notes - Give a like if you enjoy it!
