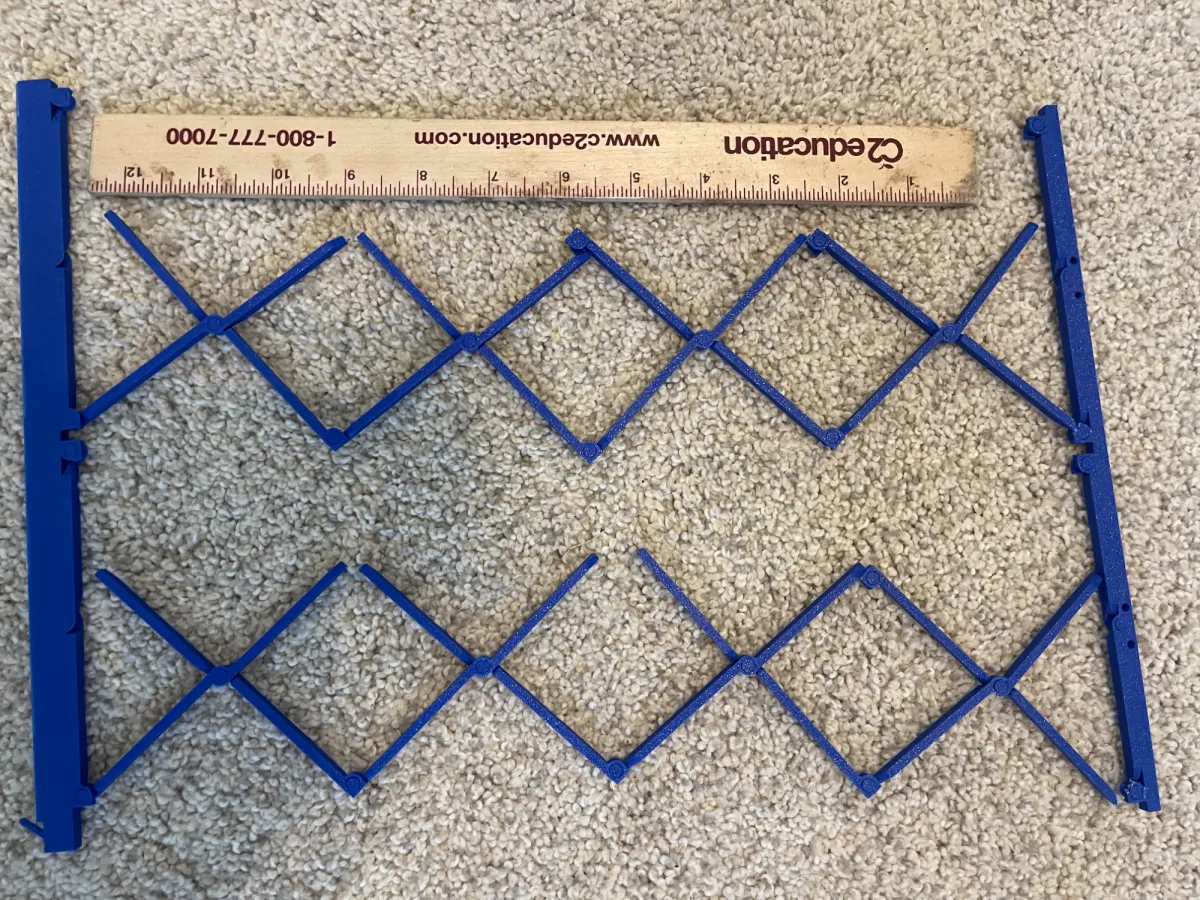

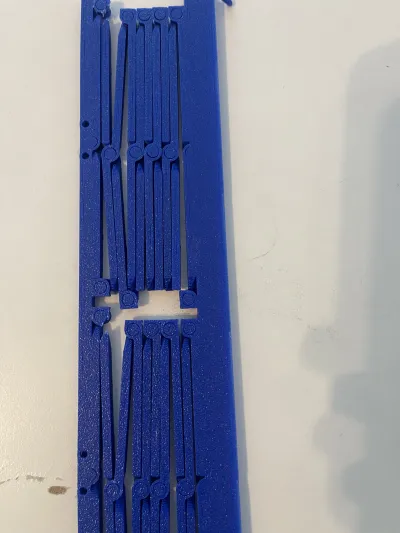

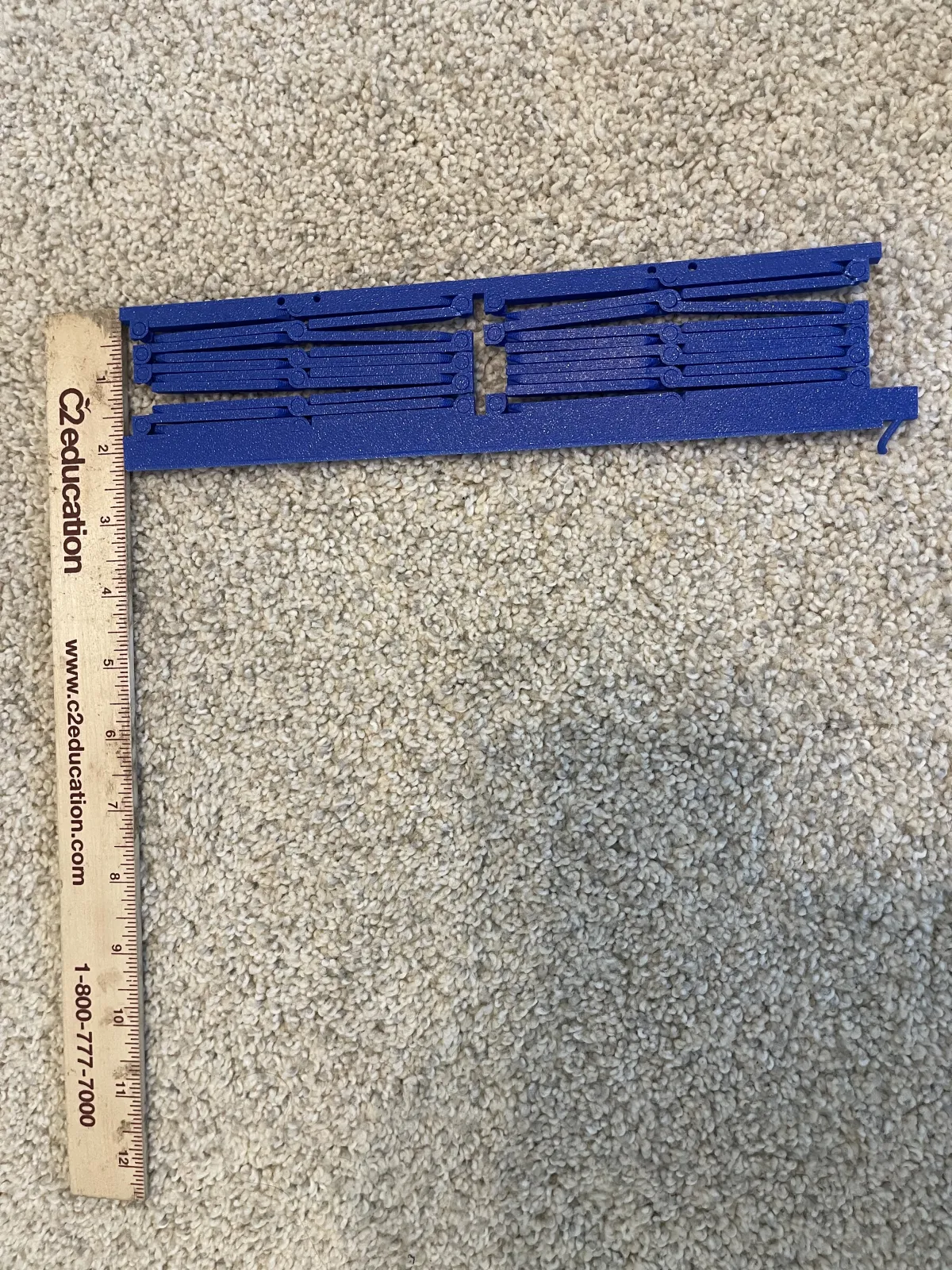

This model is what I'm pretty sure is the only bed scraper that can clear the build plate in less than 5 seconds. It uses scissor links to expand from less than 2 inches to over 12 inches. The model comes with a chain that helps with making the mechanism expand. For assembly you will need 6mm x 3mm neodymiunm magents (or anything else that sticks). For installation take the holes underneath the mechanismand put the 2 brackets (stuff thats not attached to the main mechanism) and put them in there (it uses a pin-and-hole). Nex there will be circular slots, those slots are where the neodymium magnets go. Be careful and make sure nothing interferes with the printing process. This accesory can be used for other printers that are 256 x 256 x 256mm, but it is optimized for the CC and CC2. REMEMBER TO GET YOUR MAGENTS, THIS PRODUCT NEEDS 6MM x 3MM NEODYMIUM (not ceramic) MAGNETS OR STRONG HEAT-RESISTENT GLUE (Medium strength Epoxy works too, Cyanacrolate can weaken in the printer). THIS MODEL WILL NOT BE USED FOR COMMERCIAL PURPOSES OR TO GAIN A PROFIT, CONSUMER ONLY, protected under the Standard Digital File License. Most of my other non-event models can be used, check them out by clicking on my profile.



UPDATES: I made a new an improved model which works much better, prints stronger (Doesn't break at the hinges anymore), and doesn't spaggetti as often, for the 2 people who downloaded this, I reccomend using the updated model, though the first one works fine (in the model picture the first model is used not the second).

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    6mm x 3mm Neodymium Magnets
    4
    You need a pack of at least 4, though most come in larger packs. Neodymium is reccomended, ceramic likely isin't strong enough.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
