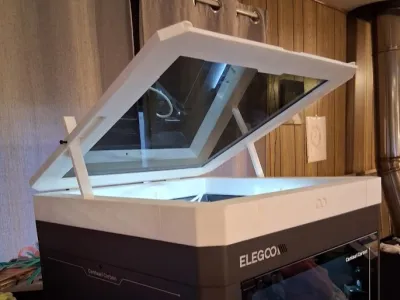

After making the Centauri Carbon cabinet stand I found during testing that the vented risers just did not work to my liking. I decided to design my own. since I was always taking the glass off I thought of lifting it like a car hood, this is the results.
  The lever lock system evolved to have repelling magnets to aid in opening them, this makes opening a one handed task while 2 n52 magnets help keep the glass still. To allow for better lighting, 4 led mounting sections and a wire track were added. 2 styles of led covers were design, One is for led strip lights and the other for WS2812b round led pcb.
  I made 2 versions, one with heat press threaded inserts and one without.

  The 3mf files are set to print from the cc but the stl files are there too. You can print all the parts with a single spool of petg/asa/abs of your choice.
DO NOT PRINT IN PLA! Printing matte pla with 65c bead and the lid closed got chamber temps to 40.2c during testing.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    m3x5mm 5mm od brass heat inserts
    12
    For standard version
  • 2
    m3x16mm cap head screws
    4
    use m3x25mm for non insert version for hinge mounting
  • 3
    m3x20mm screw
    2
    used for lever locks, screw into the locking lever to make threads before assembly.
  • 4
    m3 washers
    2
    Lever locks
  • 5
    m3x10mm screw
    8
    led mounting
  • 6
    6mmx3mm n53 magnets
    4

Originality of the Model

The author declares that this work is their personally original model
