Elegoo H1 HT Dryer Stacking Stand with Sliding Drawer

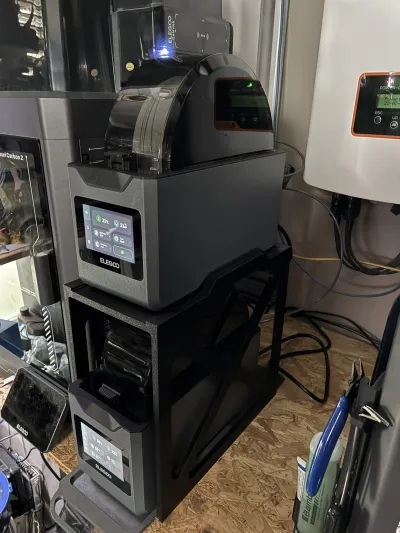

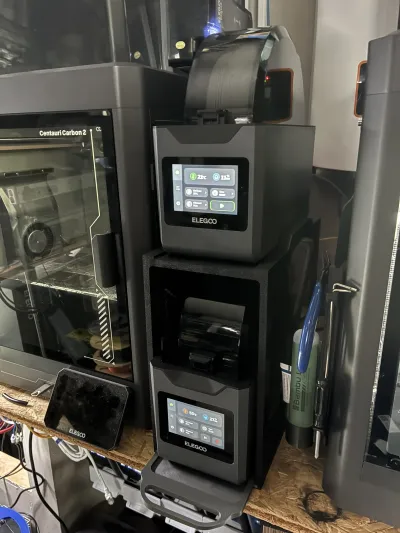

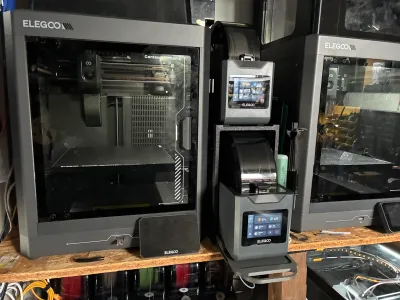

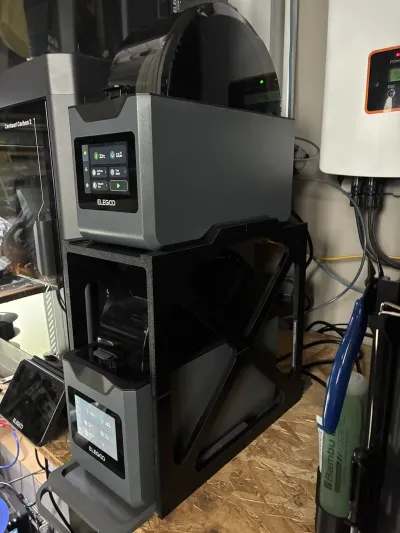

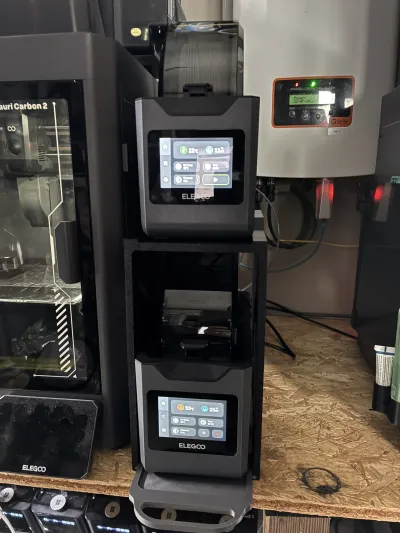

Optimize your workspace by stacking two Elegoo H1 HT filament dryers with this stand specifically designed for the job.

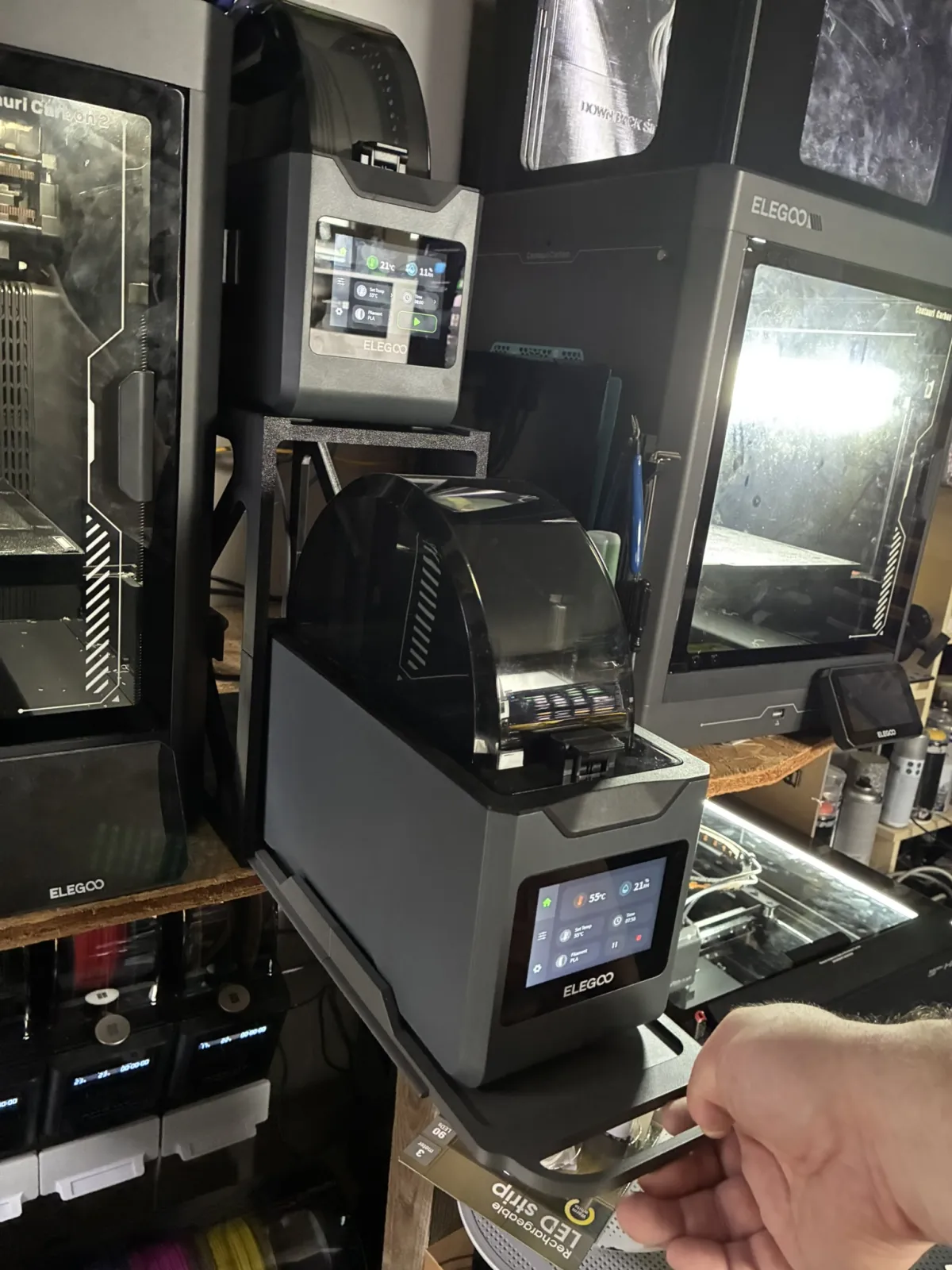

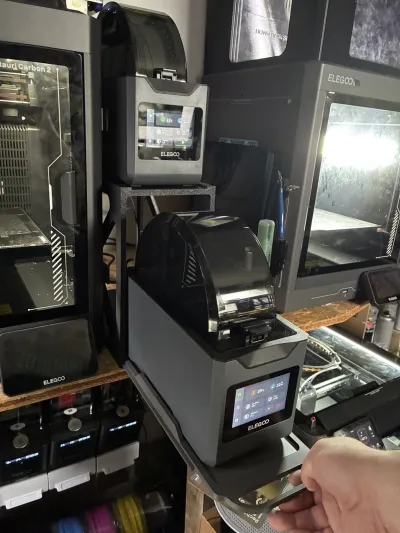

The lower dryer sits on a sliding drawer, allowing you to pull it forward so you can easily open the lid and load or remove a spool without having to move the entire setup.

⚠️ Important

To reduce filament usage and printing time, the drawer has been designed to be as lightweight as possible while remaining strong enough for normal use.

When pulling the drawer out to access the lower dryer, hold the stand with your leg (or one hand) to prevent the entire assembly from tipping forward. This will also help avoid putting excessive stress on the drawer.

Features

Stack 2 Elegoo H1 HT filament dryers
Saves valuable desk space
Sliding drawer for easy access to the lower dryer
No screws, inserts, magnets, or any other additional hardware required
Simple press-fit assembly

Printing

The model is split into 6 parts, making it easy to print on most printers with a 250 × 250 mm build plate.

The joints have been designed with very tight tolerances to ensure a precise fit. The parts should fit together nicely on their own, but for maximum rigidity, I recommend applying a small amount of cyanoacrylate (super glue) during assembly.

Large Printer Version

If you own a large-format printer, you'll also find the uncut files, allowing you to print the larger parts as single pieces.

Recommended Product

If you don't already own an Elegoo H1 HT Filament Dryer, you can get one here:

👉 Buy the Elegoo H1 HT Dryer: https://tidd.ly/4hqhN1E

Affiliate link – by purchasing through this link, you help support my work at no additional cost to you. Thank you for your support! ❤️

Happy printing!
