Gadget Modding Contest

  • AYN THOR

  • Grip

  • Gaming

AYN THOR Travel Grip V1
Print Profile(0)

  • Earn points by adding print configurations

0

0

4

0

Released 2026-07-20
Details
Files(2)
Makes & Comments (0)

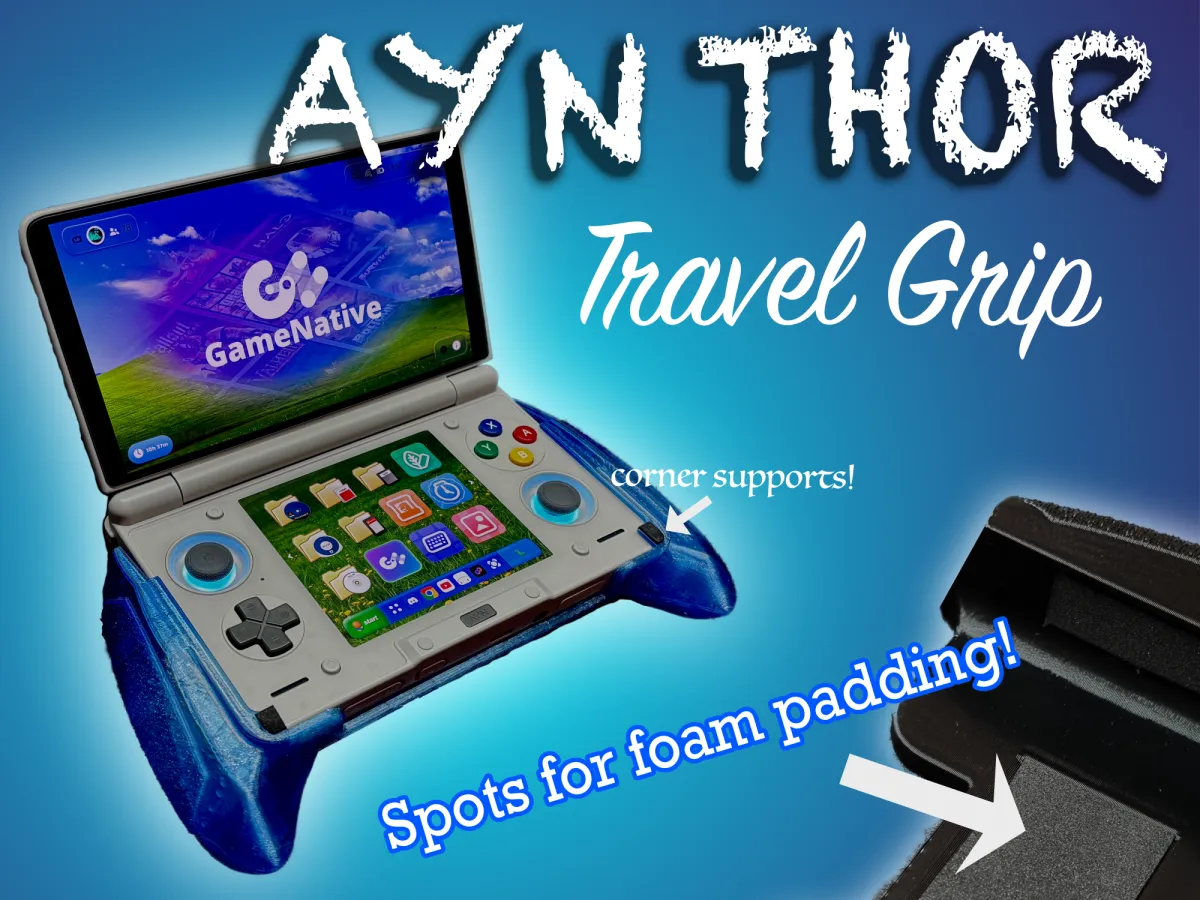

AYN THOR Travel Grip!

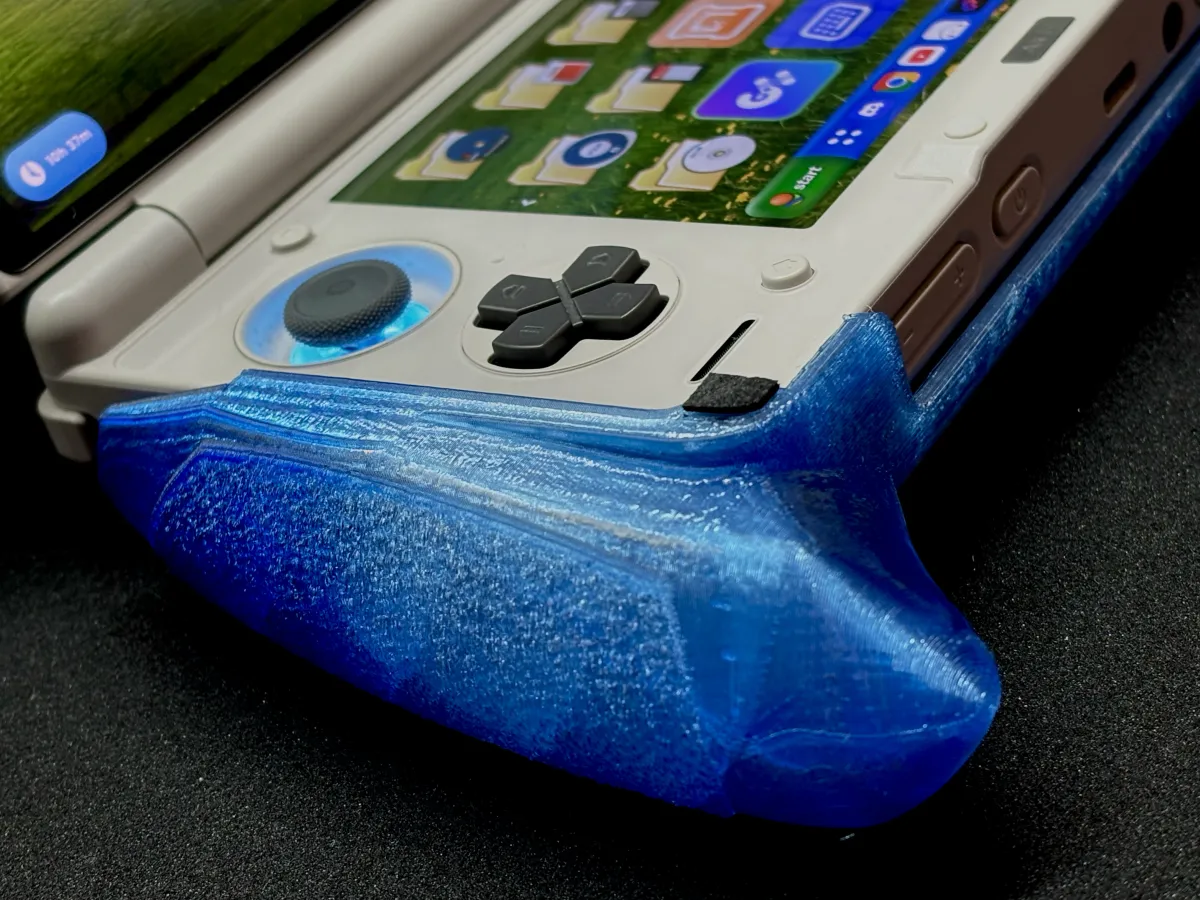

I recommend targeting the raised sections on the grip with the fuzzy skin painting tool. This will add your grip texture and allow you to customize it to your personal liking.



Here are my personal settings
Fuzzy skin: Painted Only
Generator mode: Displacement
Noise Type: Classic
point distance: .55mm

skin thickness: .35mm

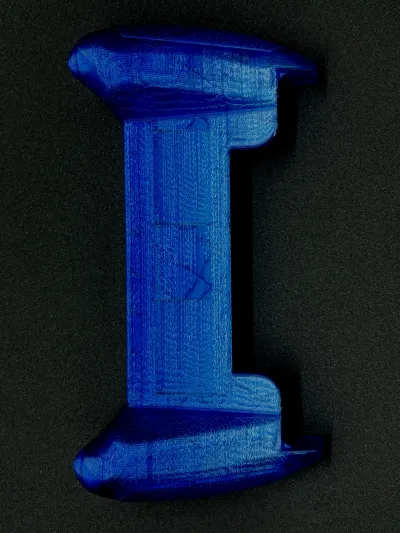

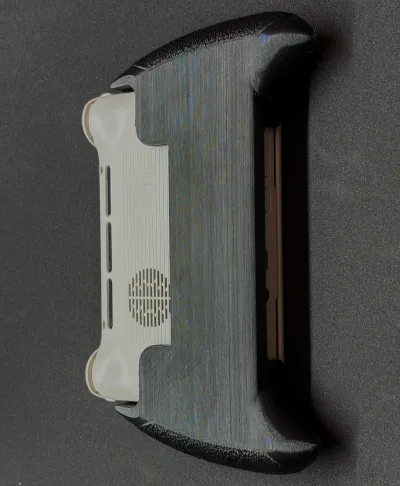

There are two sizes Thick and Slim. The slim model is flat for easier pocketing. The thick model has some extra grip on the bottom but is still easily pocket-able!



Print from the flat angled trigger portion up. use tree supports from the build plate only. Have fun!

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    1mm Foam padding
    1

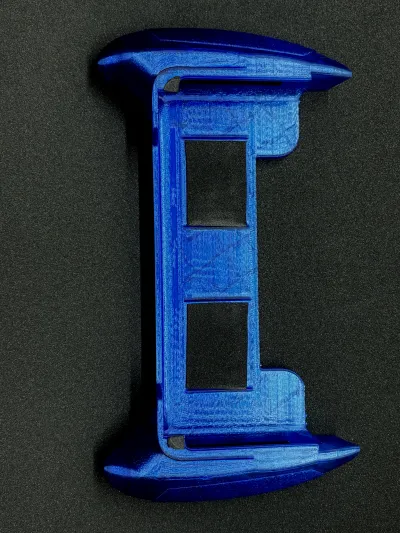

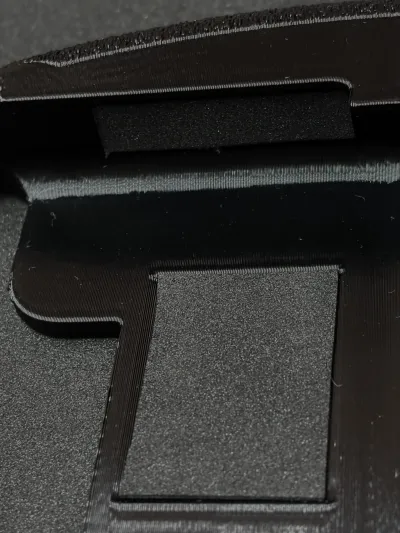

    I use a large roll of foam padding and cut off whats needed. I typically use a 3 inch by 2 inch piece and slice into the cutouts on the model.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license

Models(2)

  • model file image
    Final 2.2 Thicker Back angled.stlDesigner

    5.17 MB

    2026-07-19

  • model file image
    Final slim angled.stlDesigner

    4.00 MB

    2026-07-19
