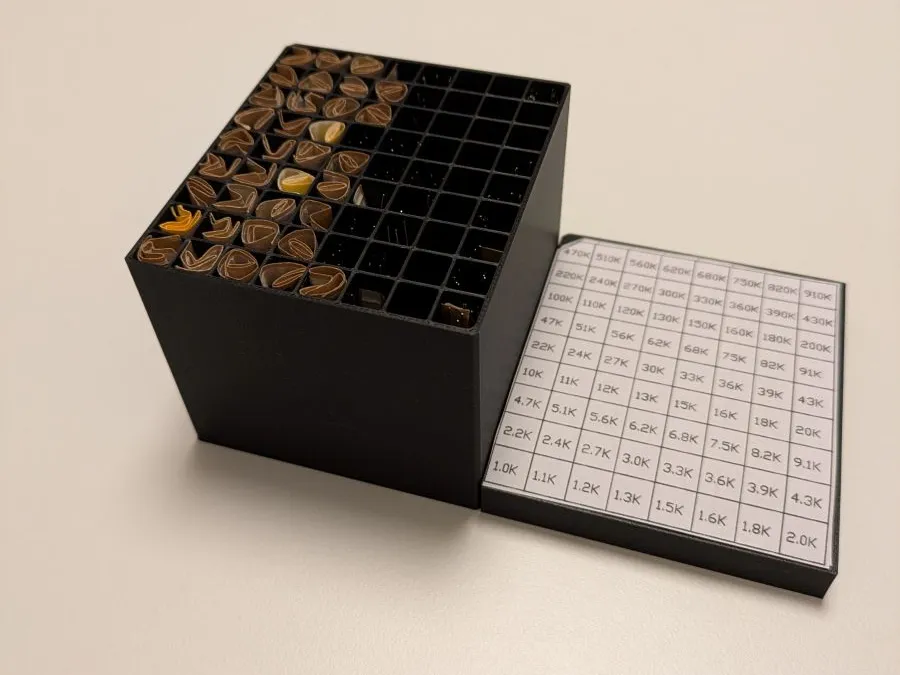

The box is designed to contain the ¼ watt resistors (diameter 2.4 mm - length 60 mm).

It is intended for the E24 series of resistors.

Each of the pocket contains 10 resistors.

As there are 72 pockets in the box the suggested use is the following:

- box #1 = 0.01R to 0.091R - 0.1R to 0.91R - 1R to 9.1R

- box #2 = 10R to 91R - 100R to 910R - 1K to 9.1K

- box #3 = 10K to 91K - 100K to 910K - 1M to 9.1M

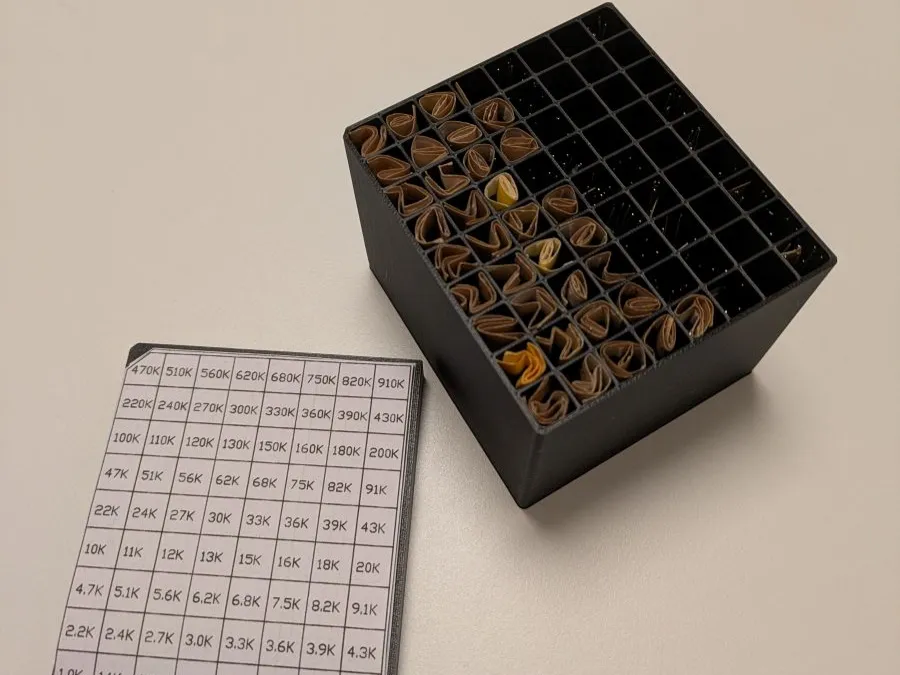

On the cover you can apply a label with the values scheme (attached example PDF)

A chamfer on the box and the cove give the correct orientation
