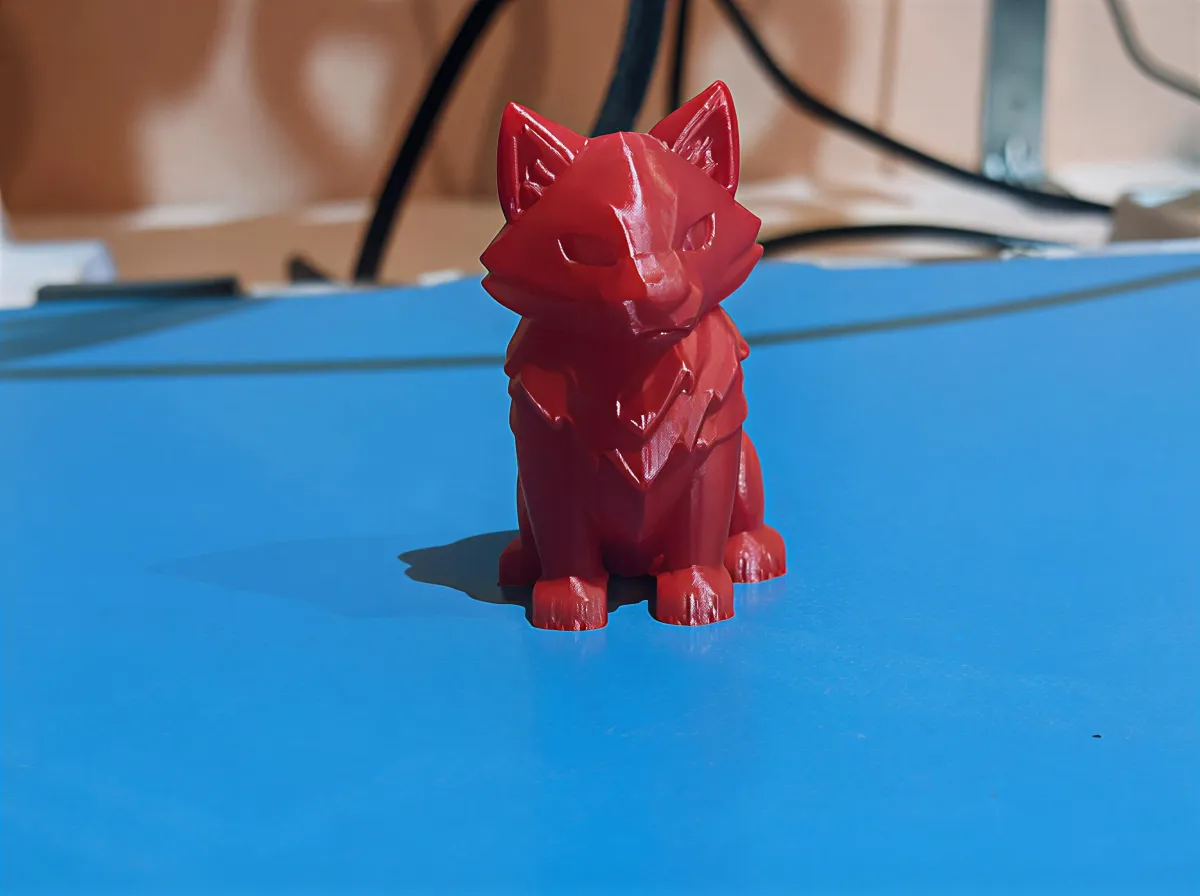

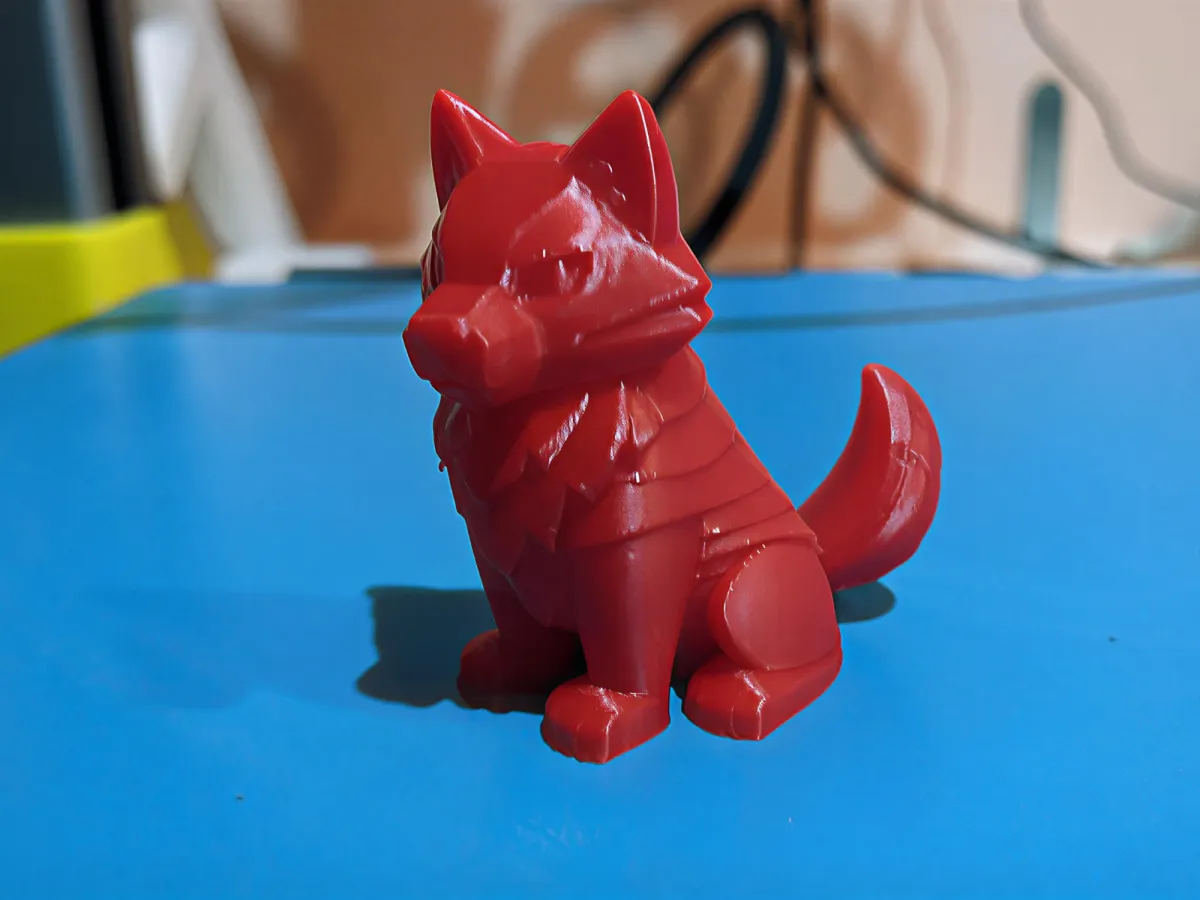

A compact sitting wolf figure designed specifically for testing FDM printer capabilities. At 5 cm tall, it prints fast enough for regular calibration checks while providing meaningful feedback on your printer's performance.

The model combines a recognizable shape with practical test features. The geometry challenges common printer weaknesses—overhangs, layer consistency, surface finish—while staying printable without supports on most machines.

What it tests:

• Aggressive overhang angles (tail approaching 90°, snout around 80°, body segments)
• Layer adhesion and Z-axis accuracy through the segmented body and neck
• Surface finish on curves and angled surfaces
• Fine detail capture (facial features, fur texture)
• Overall dimensional accuracy
• First layer adhesion with the flat paw base

Print specs:

• 50mm tall
• Uses approximately 9 grams of filament
• Print time: 30-40 minutes (depending on settings and printer)
• Single piece, no assembly
• Prints without supports
• Works with 0.4mm nozzles and typical layer heights

Recommended use: Try it when testing new filament, after making printer adjustments, or when dialing in a new material profile. PLA gives the cleanest results for detail evaluation. PETG is useful for checking stringing and cooling performance. The model works across most standard FDM setups.

Good as a functional test piece that doesn't look like a test piece when you're done.
