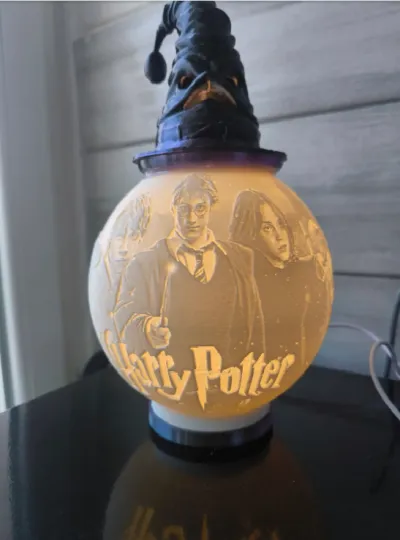

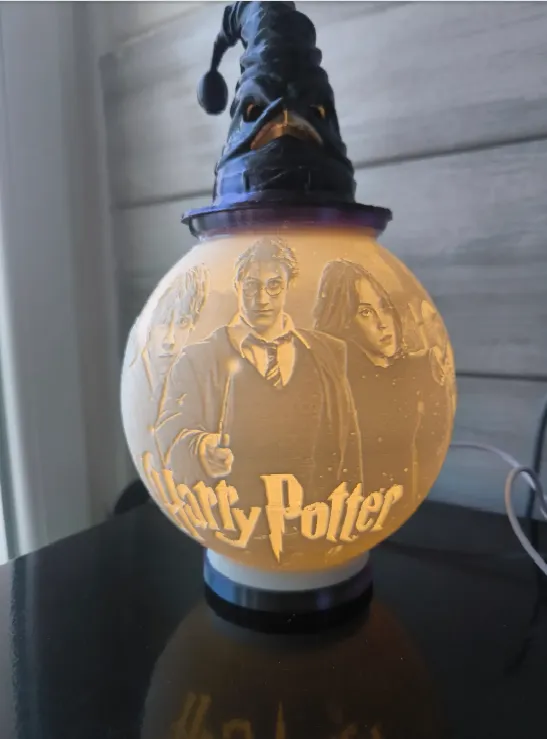

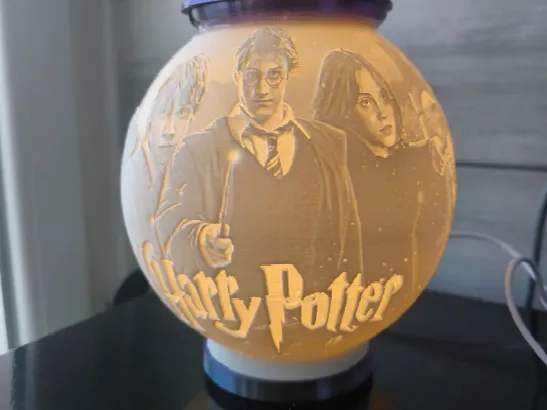

Lithophane Harry Potter lamp made from  the  Lithophanemaker.com sphere tool .https://lithophanemaker.com/Lithophane%20Sphere.html



Print settings i used :

I used white PLA Nebula
- 0.4mm nozzle
- 0.12mm layer height
- 100% infill
- I only printed the hat with supports.

Speed : its imported to not print this too fast (around 40mm/s )

-printing temperature: 202 degree

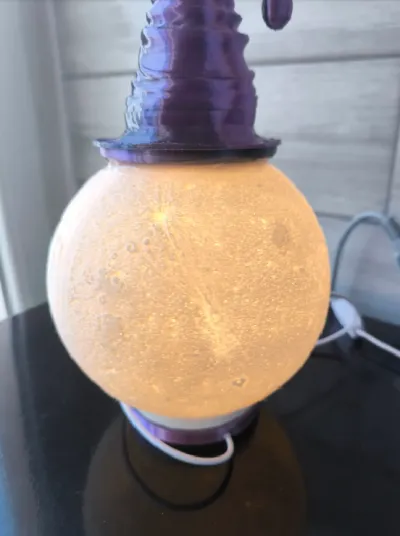

Next is the lamp composed of a hat part and a base led kit 001. These models are not created by me, but I will attach links to these models from the authors here.



base led kit 001 : https://www.printables.com/model/865798-base-for-led-kit-tealight-36mm-other

hat : https://makerworld.com/en/models/843138?from=search#profileId-789741



The hat, spacer and base models must be set to scale so that the model is the same as in the picture and fits into the litophane lamp.
hat: X:95mm , Y:95mm , Z:100mm
spacer: X:90mm , Y:90mm , Z:16mm
base: X:84.31mm , Y:84.31mm , Z:17.39mm

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(2)

  • model file image
    harry-potter-litophane-ball.stlDesigner

    220.20 MB

    2026-01-14

  • model file image
    spacer on hat.stlDesigner

    590.71 KB

    2026-01-14
