High-Airflow Desiccant Pod (Secure Twist-Lock)

A lightweight, high-performance desiccant container designed to live inside your filament spool centers or dry boxes. This pod focuses on maximum air exposure and a "no-spill" secure closure.

Key Features:

• 360° Ventilation: Integrated 1.5mm hexagonal mesh on the top and bottom allows for total airflow through the beads.
• Secure-Twist Lid: Robust thread design ensures the lid stays locked tight, preventing desiccant spills in your storage bins.
• PETG Optimized: Geometry is designed to print reliably in PETG, making it safe for heat-recharging in a dehydrator or oven.
• Bead-Safe Mesh: Sized specifically to contain standard silica gel beads while maximizing passive dehumidifying.
• Fast & Efficient: Minimized material usage for a quick print that doesn’t sacrifice structural strength.

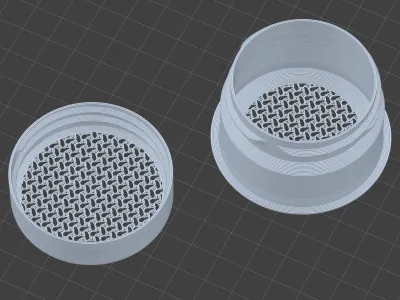

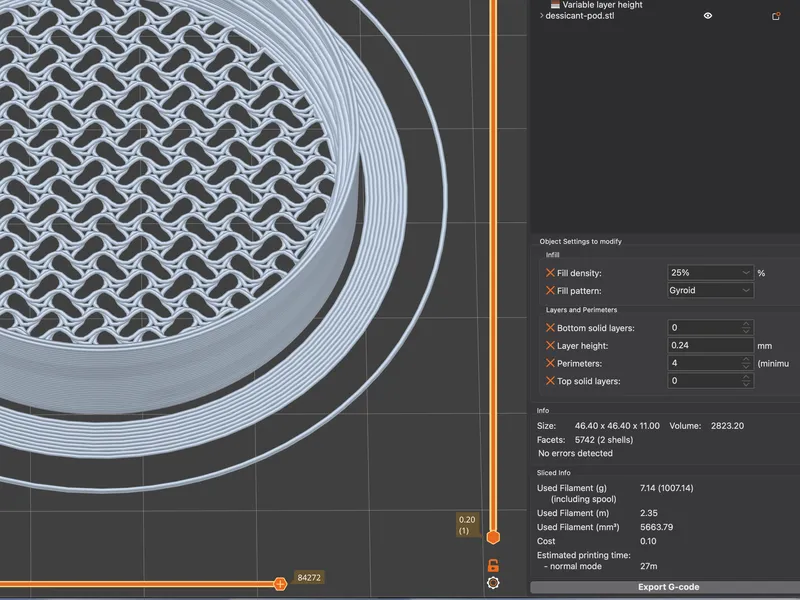

👉 The top/bottom pattern is created in the slicer. I've used Gyroid to avoid PETG issues, but there are plenty of other good options!

Top/bottom layers: 0
Infill: ~25%
(the holes just need to be small enough so the silica gel doesn't spill out)

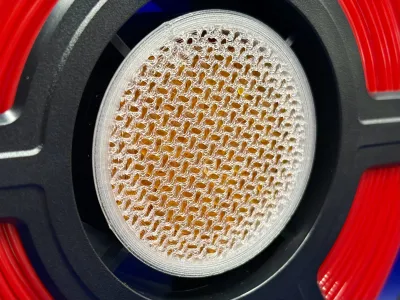

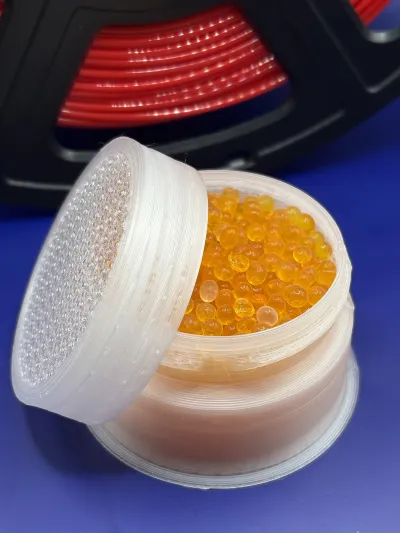

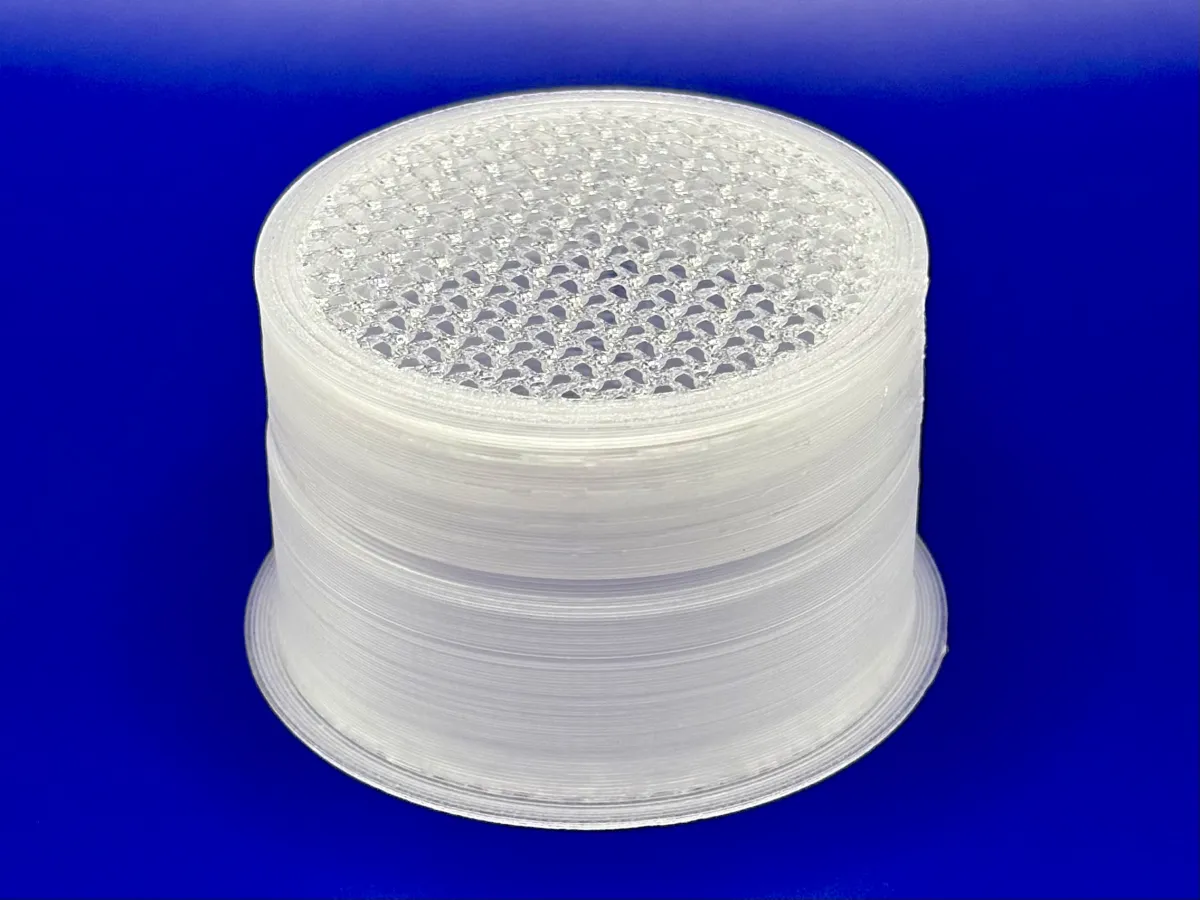

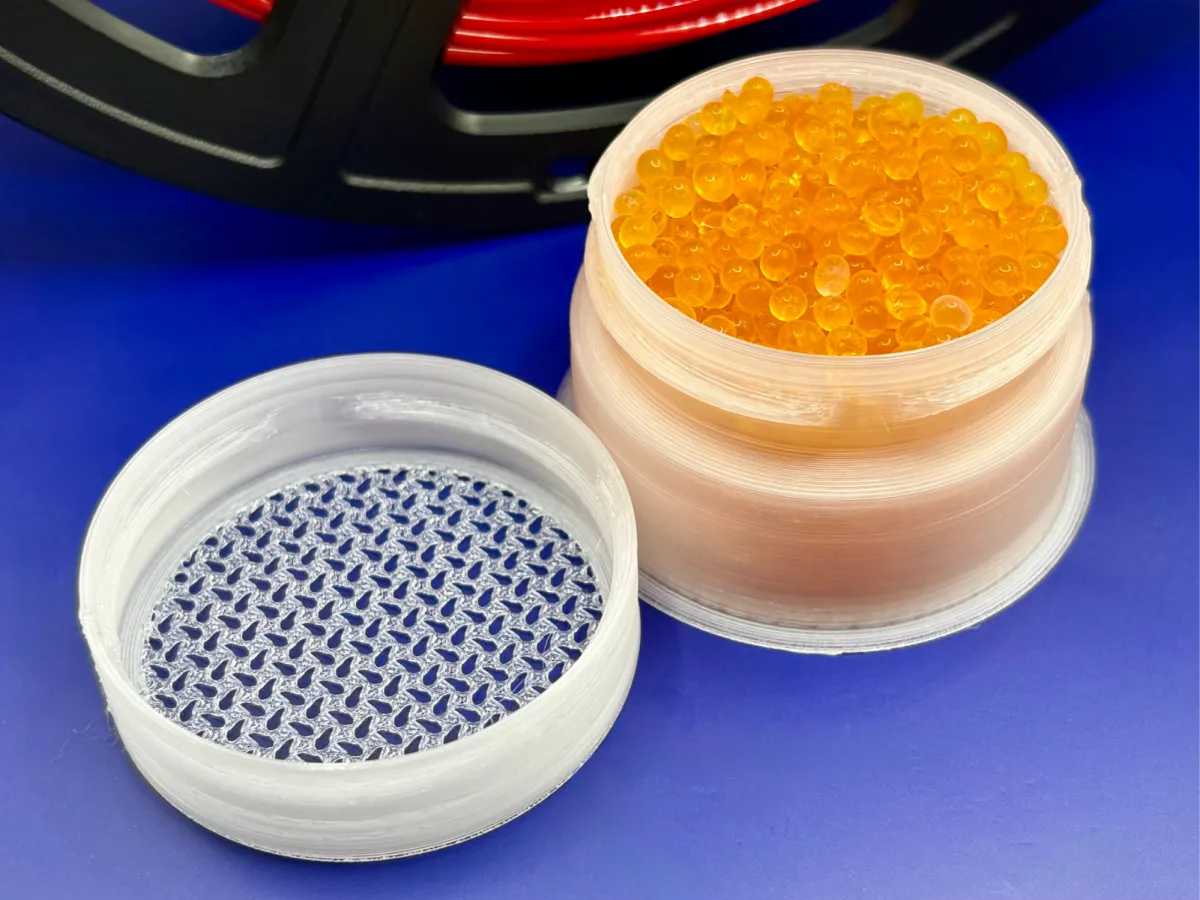

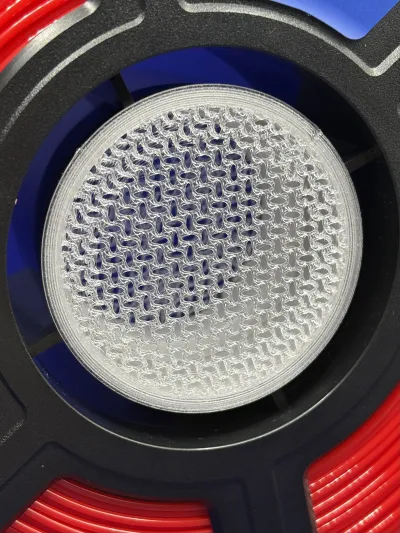

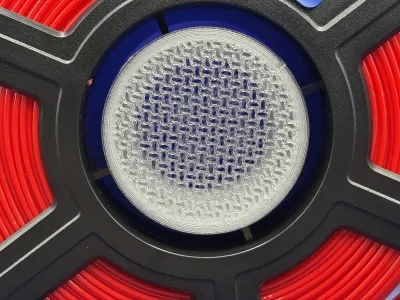

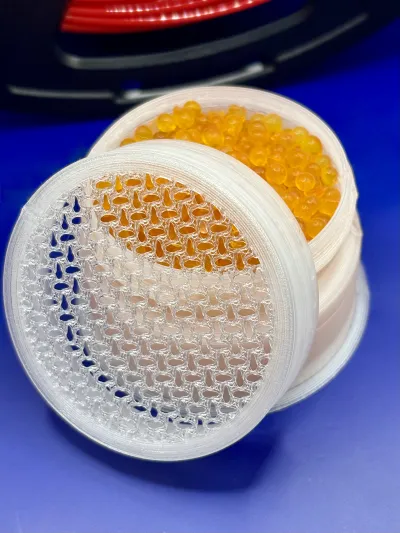

Notes about model in the photos

Print Specifications

• This Print: PETG • 0.40mm nozzle • 240°C Nozzle • 85°C Bed
• .3mf is Optimized for Ender 3 V2 with BLTouch bed leveling
• Uses off-print purge line to prevent nozzle blobs
• Exported from PrusaSlicer
• ⚠ Adjust temperatures +/-5C if experiencing adhesion or stringing issues
• Recommended: Test on a small print first before large jobs
