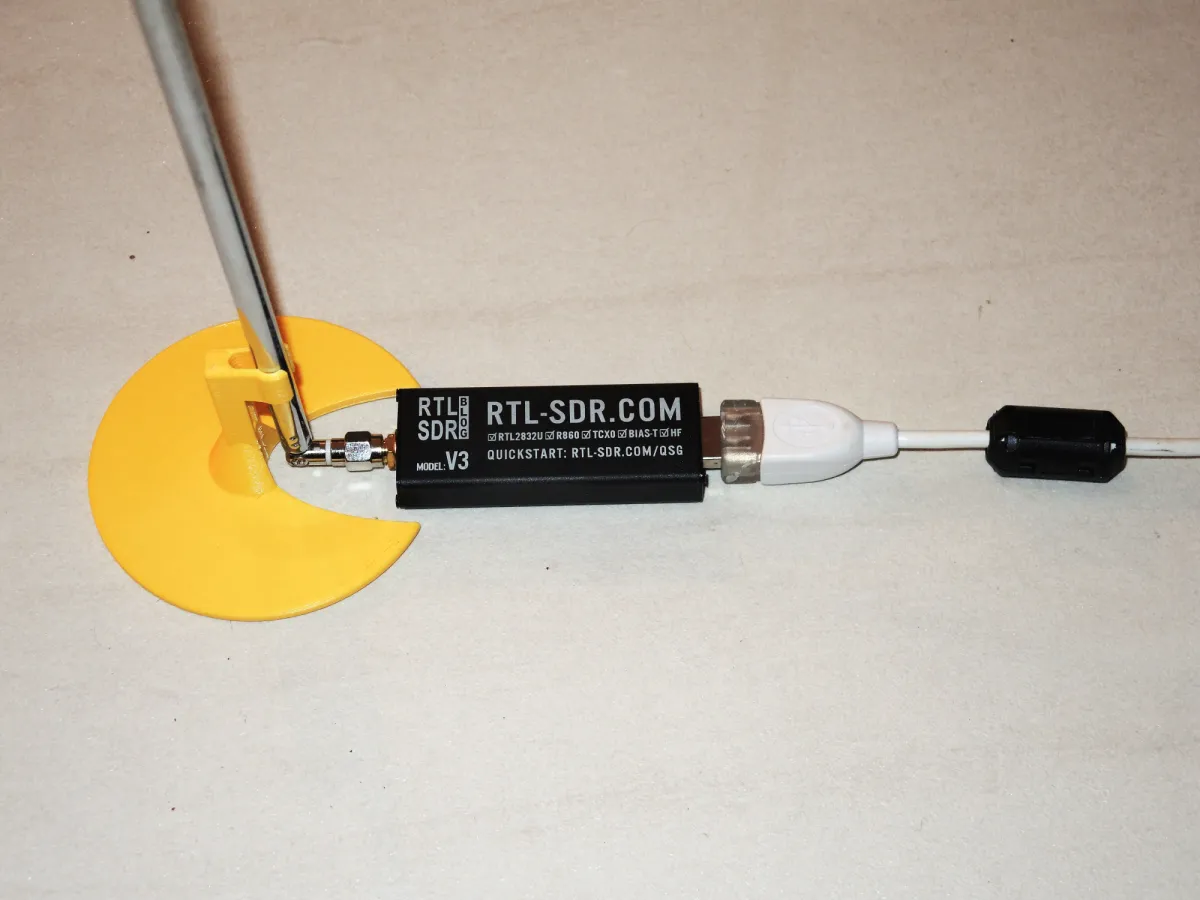

Telescopic antennas attached to RTL-SDR dongles tend to tip over. This mount holds them straight. The supplied .stl files match antenna diameters of 6 to 8 mm. Mounts with other diameters are easily obtained by modifying the supplied OpenSCAD file, see instructions below.
This is an alternative to or even an improvement over my previous designs
https://www.thingiverse.com/thing:6183925
https://www.thingiverse.com/thing:6057513

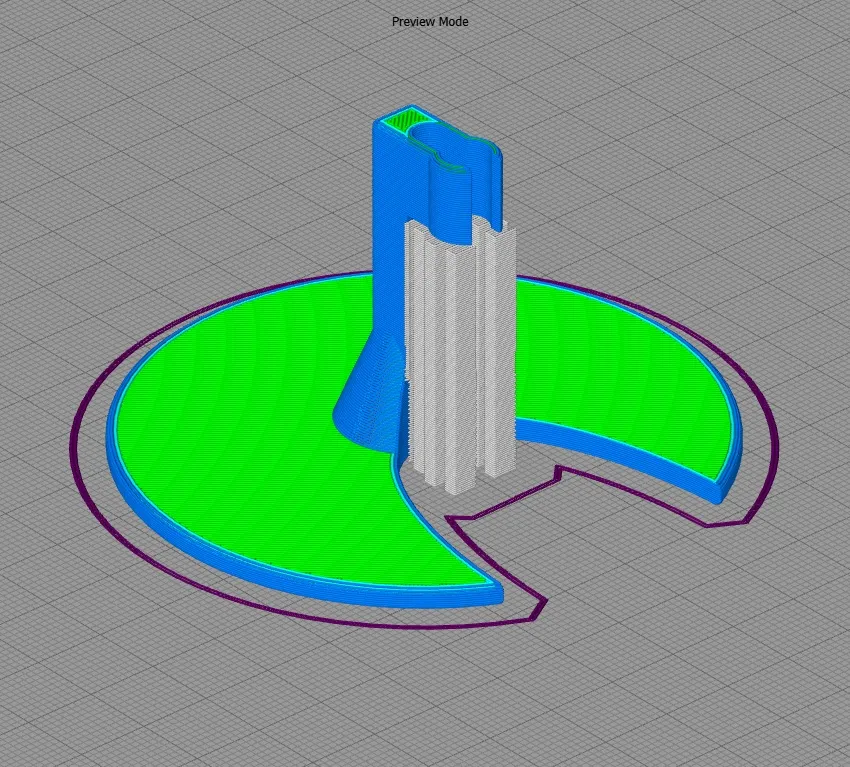

Printing requires support.
As always I include the OpenSCAD source file for you to adapt and/or improve:
- Download and install OpenSCAD from https://www.openscad.org
- Launch OpenSCAD and open the enclosed OpenSCAD source file (/File/Open).
- Amend the parameters at the top of the file or even amend the code.
- Save your changes (/File/Save).
- Render the design (/Design/Render).
- Export the rendered design e.g. as a .stl file (/File/Export/Export as STL).
- Slice and print.
See my other designs at
https://www.thingiverse.com/thinger13/designs
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
