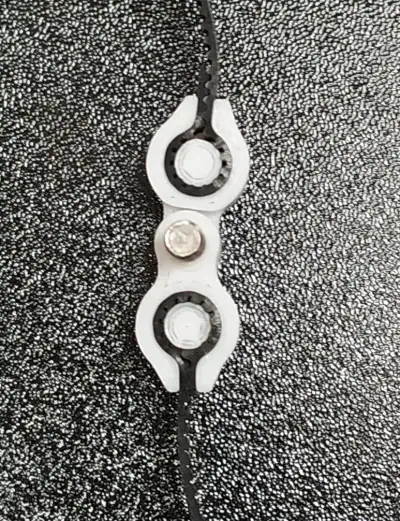

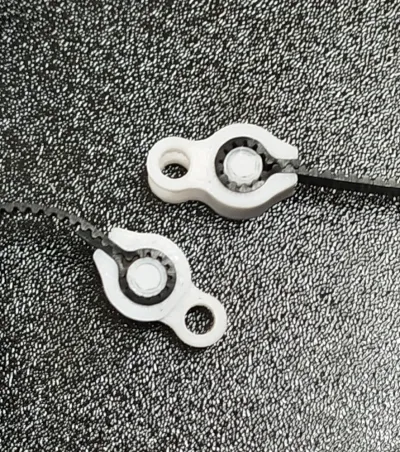

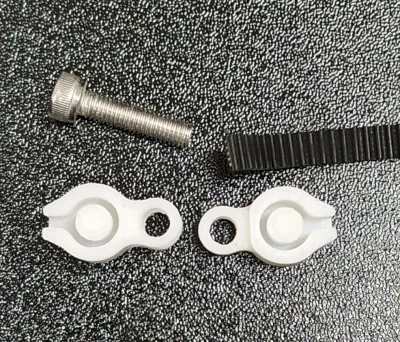

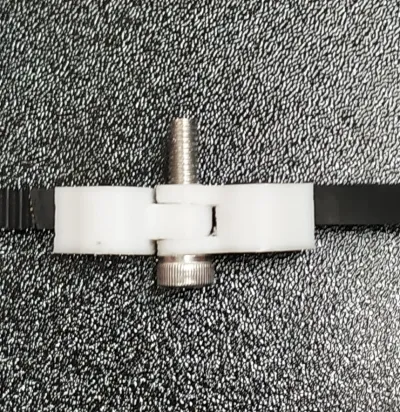

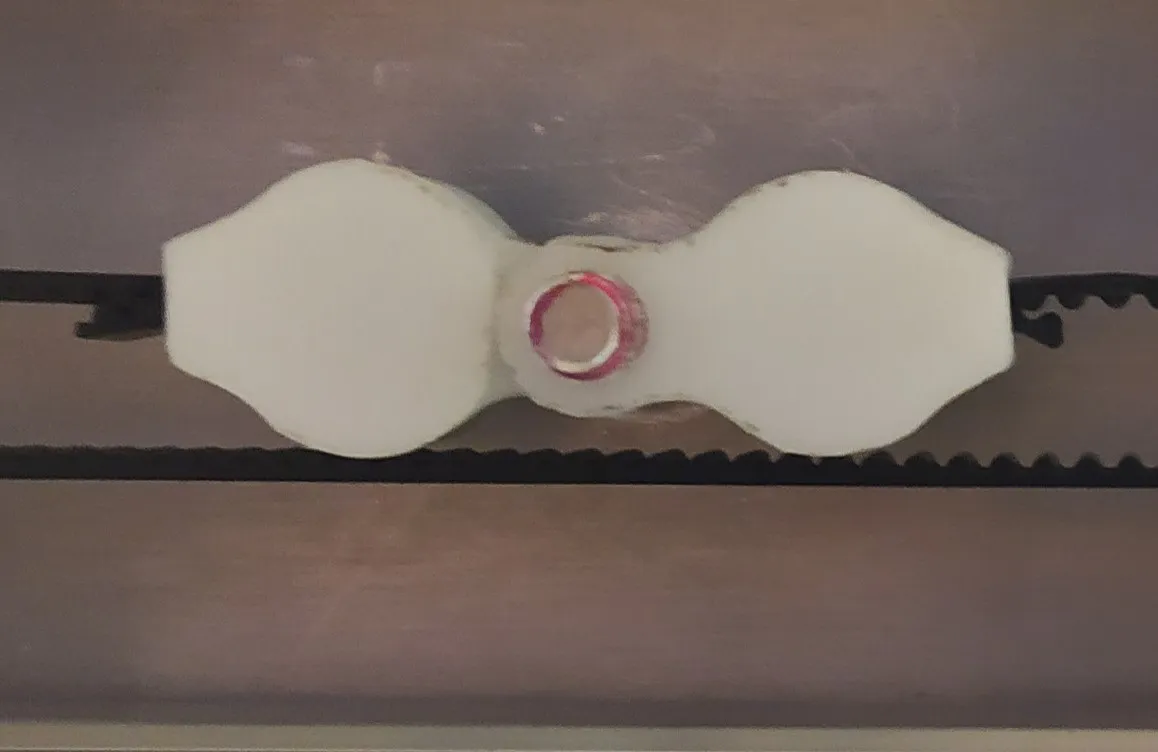

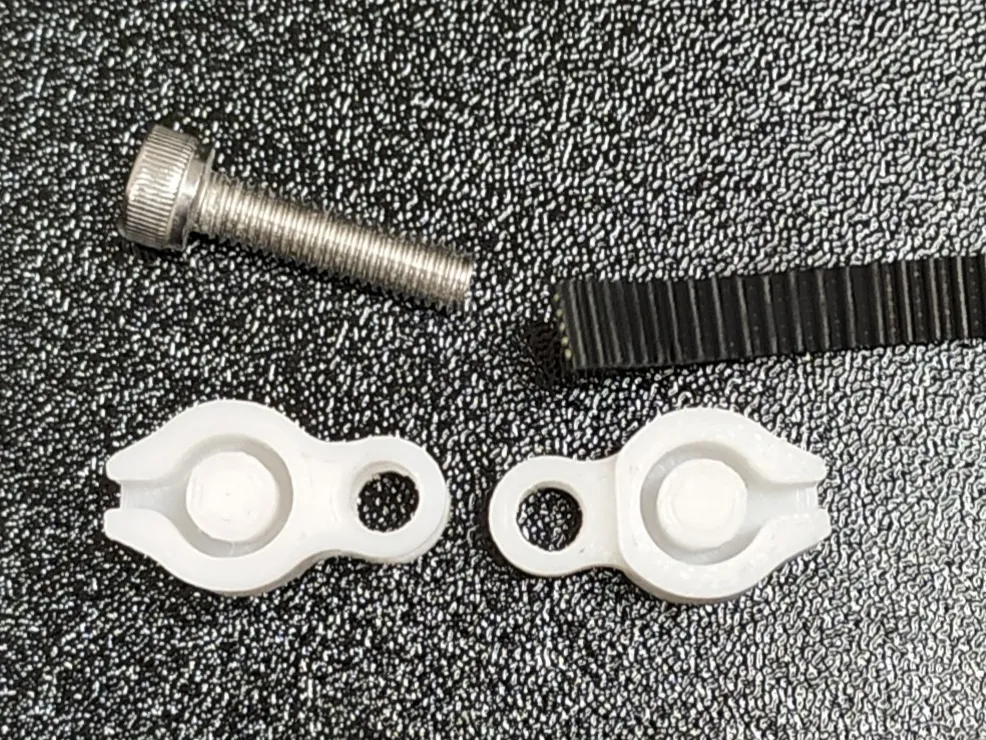

This design is a system of flexible attach for GT2 Belt. I use it to fix the belt to the heated bed of my printer. It adapts to a M5 screw in the center. I designed a flexible attach because the rigid one i used previously led to artifacts when the movement direction of the bed was reversed.
Two versions of the model are provided, "Belt attach flexible" is a tight fitting and requires some adjusting but yield a strong and tight fitting part while "Belt attach flexible large tolerances" has looser tolerances.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(3)

  • model file image
    Belt_attach_flexible.STLDesigner

    108.77 KB

    2025-12-09

  • model file image
    Belt_attach_flexible_large_tolerances.3mfDesigner

    2.50 MB

    2025-12-09

  • model file image
    Belt_attach_flexible_large_tolerances.STLDesigner

    101.64 KB

    2025-12-09
