Gate Latch
Print Profile(1)
  • Gate Latch - All Parts

    1-disc

    PLA

    Designer

1

2

30

4

Released 2025-10-21
Details
Files(3)
Makes & Comments (0)

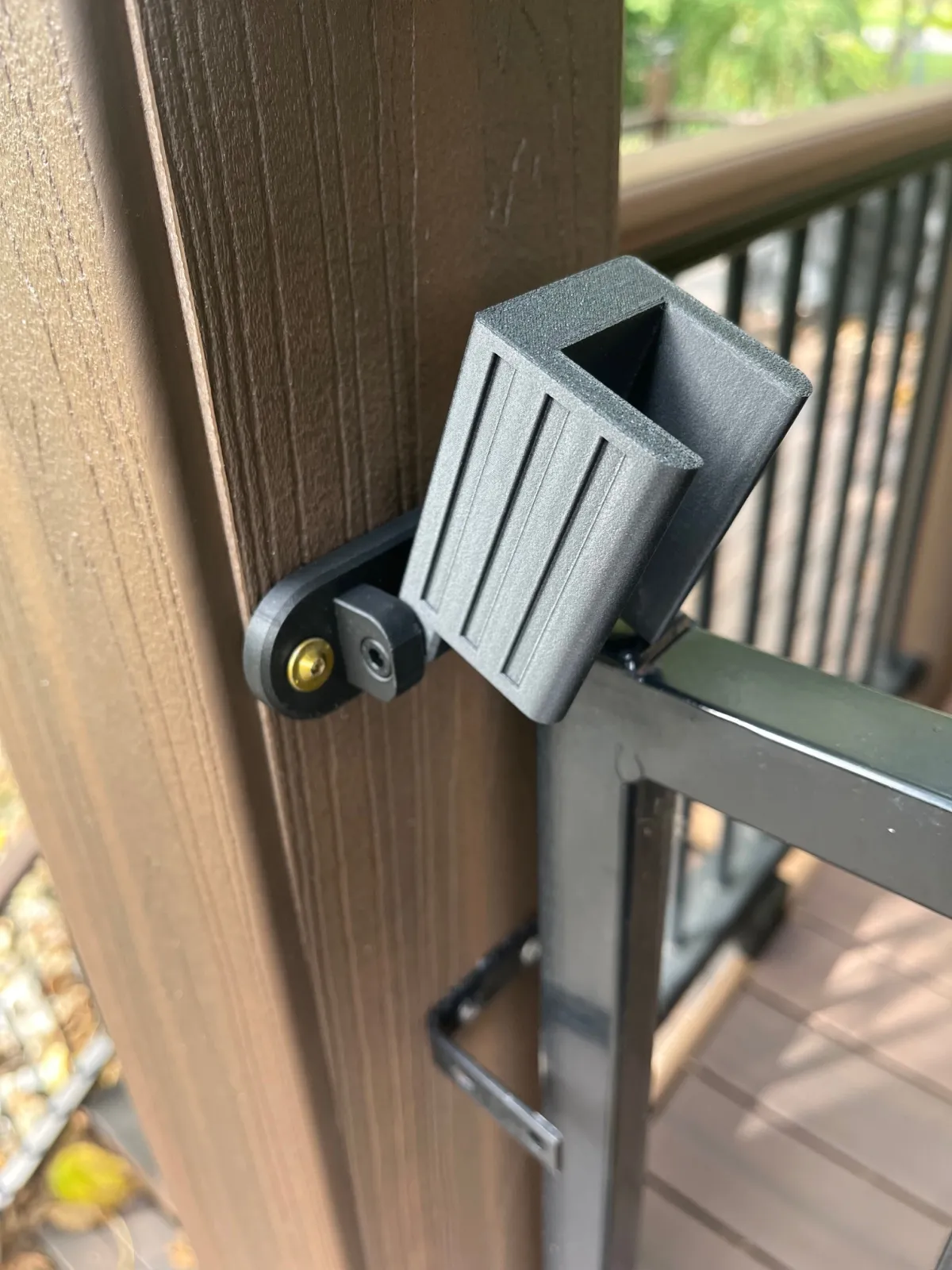

This gate latch is designed for gates without a pre-existing latch. It consists of a wall-mounted pivot bracket and a top mounted locking arm that rests on the gate, effectively preventing movement at the point of installation.



The cutout of the latch is exactly 1in x 1in x 2.5in, anything larger may not fit.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    Screws
    2
    2 X M5*20 (Other screws make work, these are just the ones I used)

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(3)

  • model file image
    Mount.stlDesigner

    76.45 KB

    2025-10-21

  • model file image
    Latch.stlDesigner

    44.42 KB

    2025-10-21

  • model file image
    Gate Latch - All Parts.3mfDesigner

    51.49 KB

    2025-10-26
