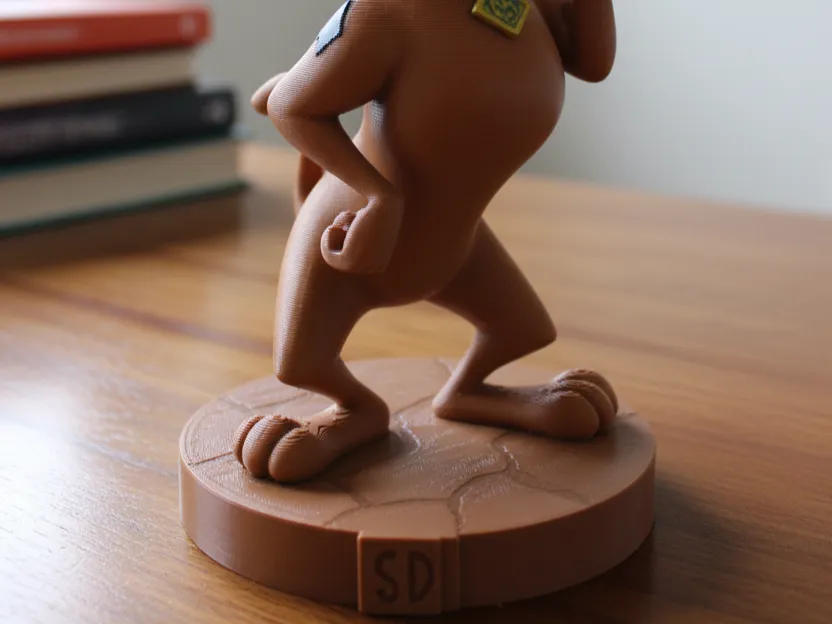

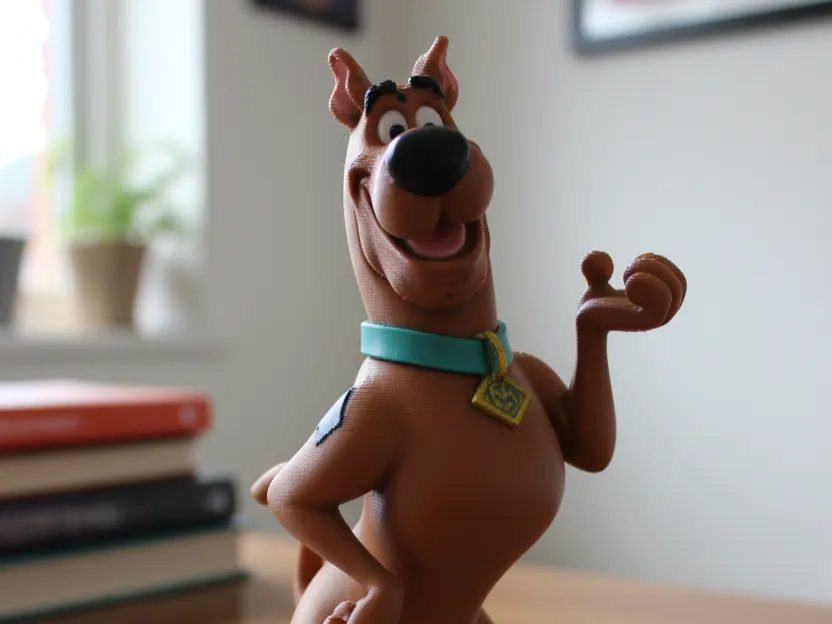

This is a cool, 3D-printed figure of Scooby-Doo, captured in a classic pose with one paw on his hip and the other raised in a friendly wave.



Of course! Here is the detailed 3D printing technical sheet for the Scooby-Doo figure in English.



3D Printing Technical Sheet: Scooby-Doo Figure



  • 3D Model: Classic Pose Scooby-Doo V1.2
  • Designer: Anonymous (file found on "Mystery Machine 3D Models" forum)
  • Dimensions: 150 mm (height) x 80 mm (width) x 85 mm (depth)
  • Object Weight: Approx. 95 grams



Detailed Printing Parameters



  • Slicing Software: PrusaSlicer v2.7.1
  • Printer: Creality Ender 3 S1 Pro (optimized configuration)
  • Filament:
    • Type: PLA (Polylactic Acid)
    • Brand: Generic
    • Color: "Toasted Marshmallow" brown
    • Diameter: 1.75 mm
  • Printing Configuration:
    • Layer Height: 0.16 mm ("High Detail" quality)
    • Infill Density: 15%
    • Infill Pattern: Honeycomb (for a good balance of strength and weight)
    • Number of Perimeters/Wall Lines: 3
    • Support Strategy: "Tree Supports" only in necessary areas (the raised hand, neck, and base of the ears).
    • Bed Adhesion: 5 mm Brim for greater stability during printing.
  • Temperatures:
    • Extruder (Nozzle) Temperature: 215°C
    • Heated Bed Temperature: 60°C
  • Printing Speed:
    • General Speed: 50 mm/s
    • Initial Layer Speed: 20 mm/s (for good adhesion)
    • Support Speed: 40 mm/s
  • Estimated Print Time: 6 hours, 42 minutes
  • Post-processing: Support removal, light sanding on the base, and application of a thin layer of clear matte sealant to protect the filament and give it a more professional finish.





Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator
