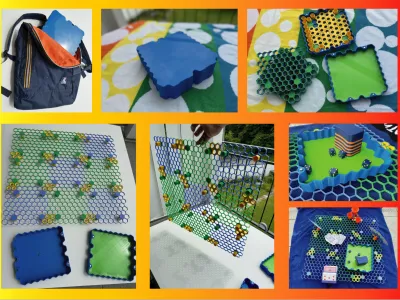

cforms portable modular magnetic Playground for indoor and outdoor use

The magnets built into the base plate are used to hold the magnetic feet at the bottom and as a magnetic surface at the top for optional accessories such as a card holder.

It consists of the following components, which require the following number of round magnets with a thickness of 3 mm and a diameter of 5 to max. 8 mm:

Honeycomb ground plate: 4x magnets
25mm feet: 1x magnet
Case (Bottom and Lid): 12x magnets
Dot: 1x magnet

The Playground is modular and can be assembled variably in length and width according to requirements, each of them has a usable playing area of 20 x 20 cm + 2 cm overhang, so that the following combinations have this size:

1 x 2 = 20 x 42 cm
1 x 3 = 20 x 62 cm
1 x 4 = 20 x 82 cm

2 x 2 = 40 x 42 cm
2 x 3 = 40 x 62 cm
2 x 4 = 40 x 82 cm

3 x 3 = 60 x 62 cm

The Playground Case fits 9x base plates for a play area of approx. 62 cm x 60 cm, for which these parts are required:

9x ground plate
12x 4-way-connector
16x 25mm feet
1 x Case Bottom and Lid

This requires 64 magnets 8 x 3 or smaller (cost of 100 pieces approx. €12)

During the printing of the parts with magnets, a pause is built into the profile at which the magnets (pay attention to the orientation!!!) are to be positioned in the printed part.

Optionally, you can print an inlay in TPU so that the lid of the case serves as a cube base.

The add-ons can you find here:

https://makerworld.com/en/models/500404#profileId-415361

Lets PLAY
designed by cforms
