45 Degree Extrusion Support
Print Profile(1)
  • 45 Degree Extrusion Support, 2 versions

    2-disc

    ASA

    Designer

1

1

50

10

Released 2025-08-26
Details
Files(3)
Makes & Comments (0)

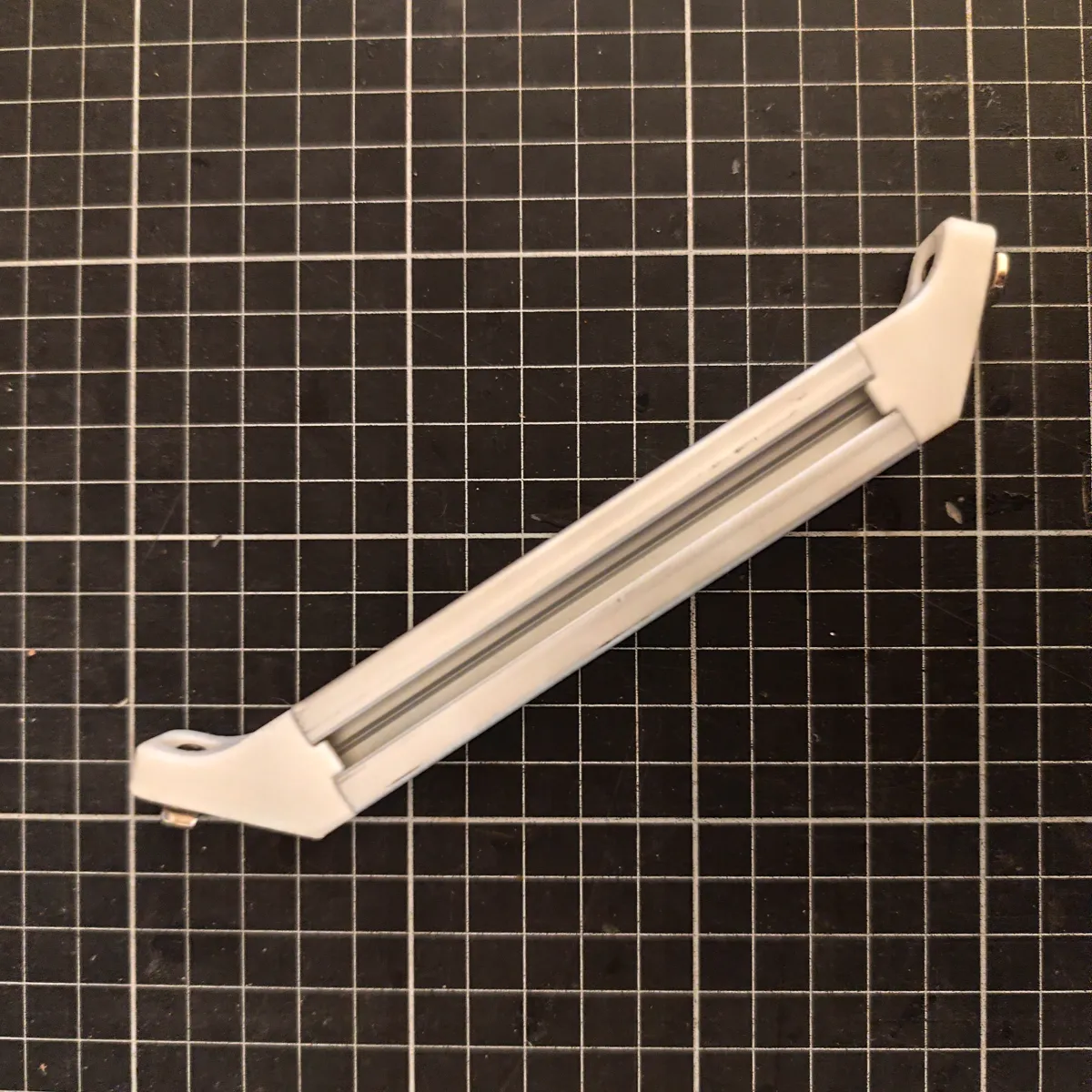

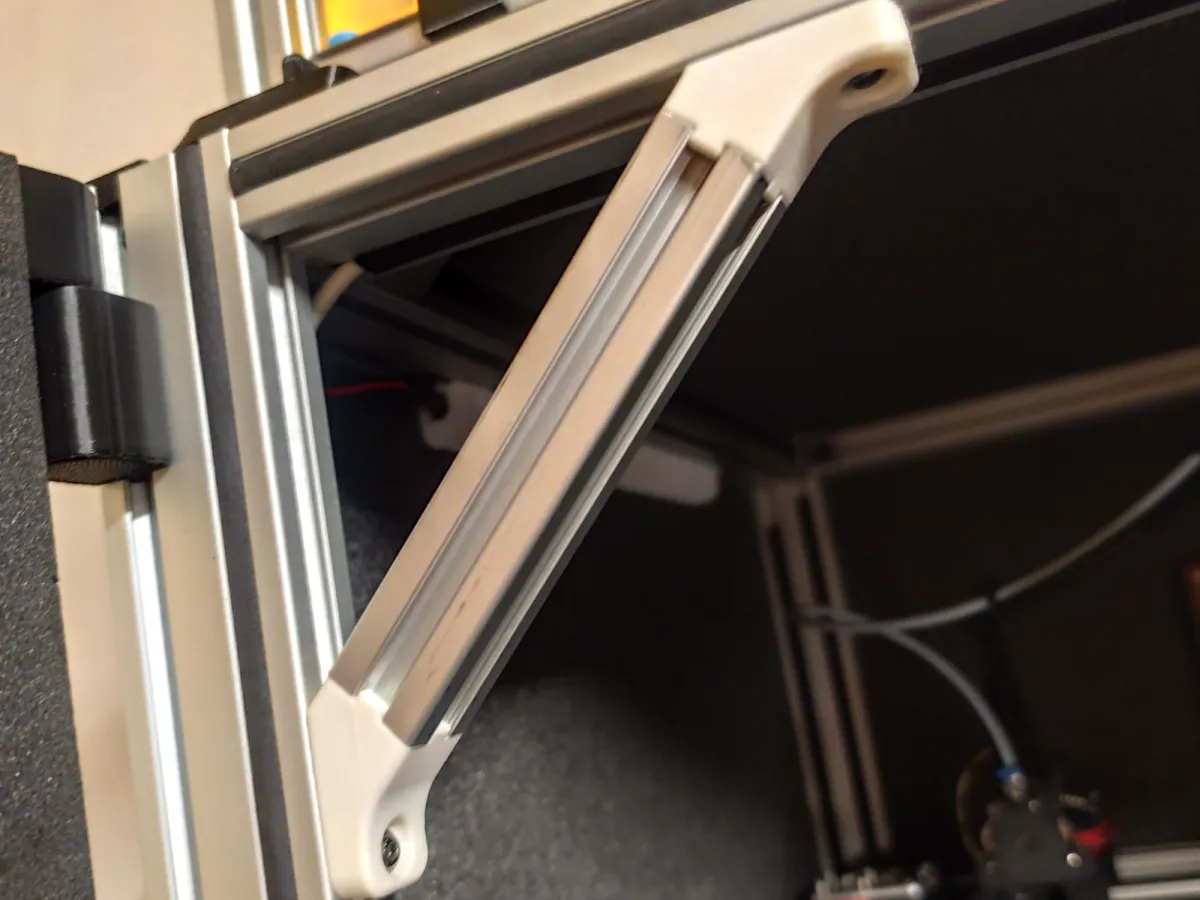

I created a corner support which uses 2020 W6 extrusion (in any length). 2 versions added, an M5-M5 and an M5-M6 (bosch extrusion) version.

You need to tap the extrusion ends and use 2 M5 or M6 screws according to the extrusion type. Also you will need 2 M5x8mm screw for mounting.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license
