>> 模型介绍 | Model Introduction >>>>>>>>
| > 灵感来源 Source of Inspiration​​

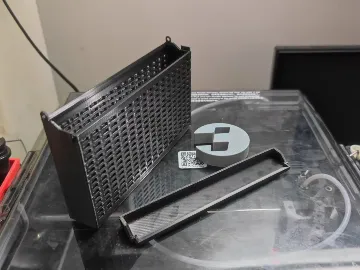

虽然分子筛干燥剂除湿效果非常好，但是单单靠CFS底部的两个干燥剂存放盒的剂量只能将湿度降到20°左右，毕竟所处在南方，只好再为CFS做个额外干燥剂放置盒子。现在的湿度稳稳的保持在了5°，盒子可存放最小2.5mm的颗粒，两个效果更佳，可放置在CFS线材后边的长矩形空隙处。
While molecular sieve desiccants deliver excellent dehumidification performance, the quantity of desiccant in the two storage boxes at the bottom of the CFS alone can only reduce the humidity to around 20% (relative humidity). After all, located in southern China (a region with high humidity), an additional desiccant storage box for the CFS had to be created. Now, the humidity is stably maintained at 5% (relative humidity). This box can hold particles as small as 2.5mm, and using two boxes yields even better results—they can be placed in the long rectangular gap behind the CFS filaments.
| > 见仁见智 Multifaceted Perspectives​​
是否适用于其他场景，请根据模型规格自行判断。
Suitability for additional applications should be self-assessed based on the model specifications.
| > 模型规格 Model Specifications​
详细规格请参阅下载页的打印配置说明。
For detailed specifications, refer to the print configuration description on the download page.

>> 切片设置 | ​​Slice Settings​ >>>>>>>>
| > 仅供参考，按需调整 For reference only; Customize as needed​
| 耗材 Filament：PETG
| 层高 Layer Height
  > 层高 Layer height：0.2mm
  > 首层层高 First layer height：0.2mm
| 墙壁和表面 Walls and surfaces
  > 墙顺序 Walls printing order：外墙/内墙 Outer/Inner
| 墙 Walls
  > 墙层数 Wall loops：2
| 填充 Infill
  > 稀疏填充密度 Sparse infill density：15%
  > 稀疏填充图案 Sparse infill pattern：网格 Grid
| 支撑 Support
  > 开启支撑 Enable support：不需要 Not Required
| 轮廓圈 Skirt
  > 轮廓圈类型 Skirt type：组合 Combined
  > 轮廓圈数 Skirt loops：1
| 裙边 Brim
  > 裙边类型 Brim type：仅外侧 Outer brim only
  > 裙边宽度 Brim width：5mm
  > 裙边与模型的间隙 Brim-object gap：0.05mm

>> 组装说明 | Assembly Instructions >>>>>>>>
即打即用，简单组装。
Print-Ready / Effortless-Assembly​

>> 其他说明 | Additional Notes >>>>>>>>
1. 模型使用 Blender 4.4.3制作。
The model was created using Blender 4.4.3.
2. 可根据协议 CC BY-NC-SA 4.0 自行修改为所需样式使用。
You are free to modify it as needed to suit your desired style under the terms of the CC BY-NC-SA 4.0 license.
3. 无论如何，遇见是缘分，适用是幸会。百因必有果，结果就是遇到我，欢迎点赞加收藏，感谢关注和助力。
​​Regardless, our meeting is serendipity; its value to you, a fortunate encounter. Every cause yields effect—your joy starts with meeting me! Likes and favorites are appreciated; thanks for follows and boosting.
4.本篇英文翻译出自于DeepSeek。
This English translation is powered by DeepSeek.
