| I've created a new version of the 3D model with added features and enhanced security! Check it out! |

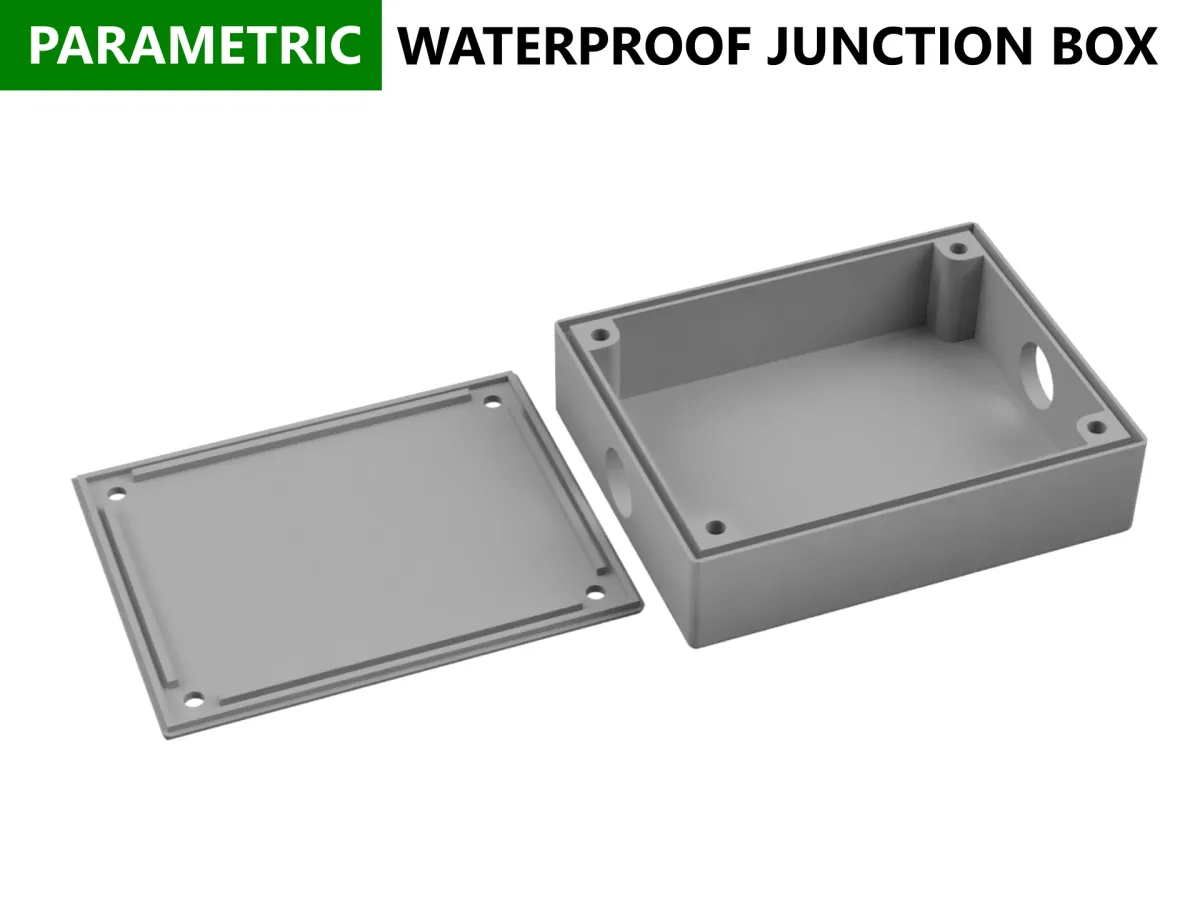

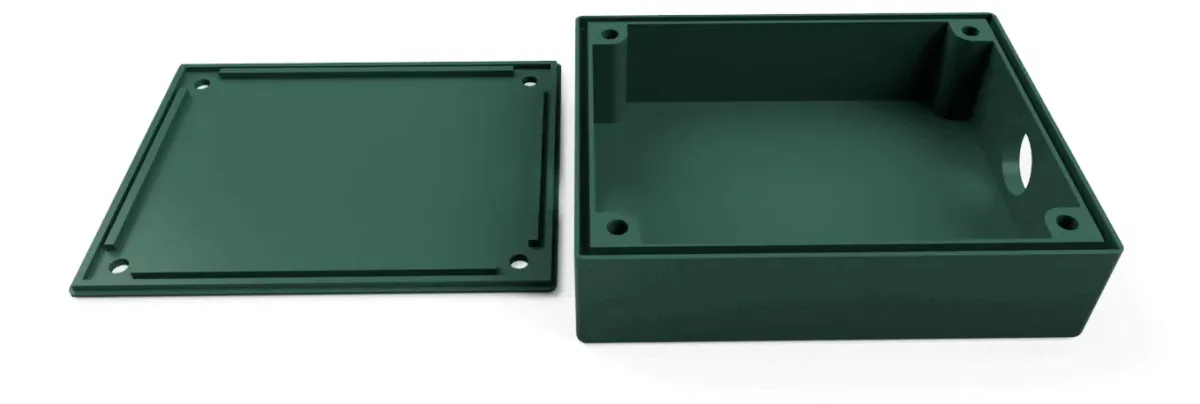

Craft custom waterproof * junction boxes to your exact specifications with this versatile Fusion 360 parametric model.
Customize every dimension:
- Height
- Width
- Depth
- Screw size
- Side hole size
- Dimensional parameters of the gasket
- and more (every field is documented)!
Download now and start creating the perfect junction boxes for your needs!
* Clearly, this box does not have any safety certification. If you want to improve its water resistance, I recommend brushing resin on the box or filling it with electrical insulating gel. Also, I recommend using a high-temperature resistant filament.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Remixes must be shared under the same license
Models(1)
Parametric Waterproof Junction Box v29.f3dDesigner
296.71 KB
2025-08-14
