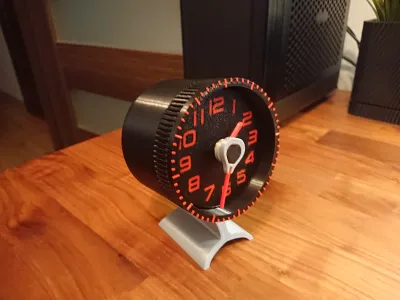

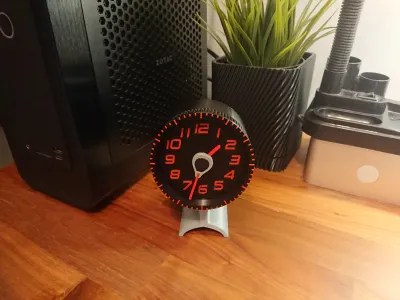

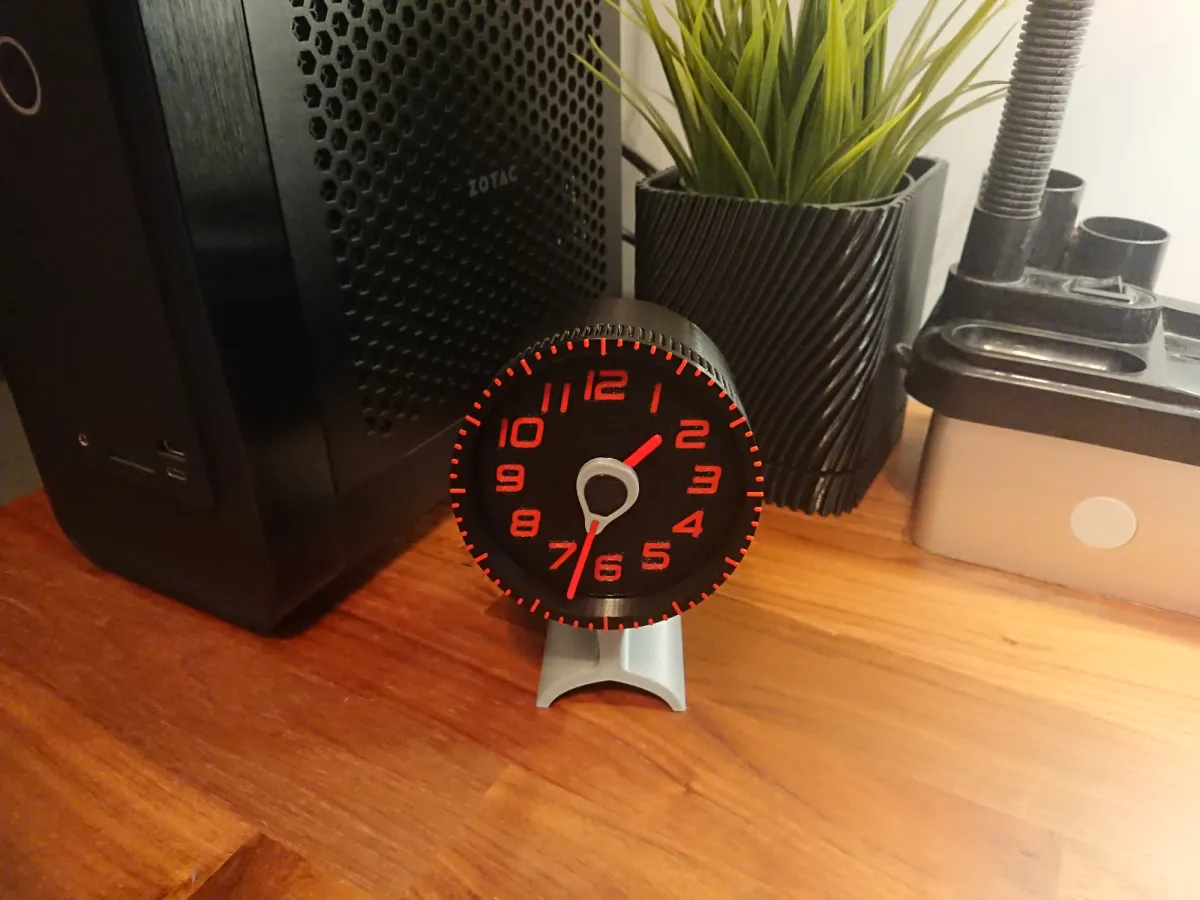

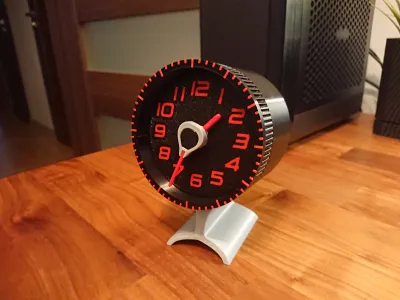

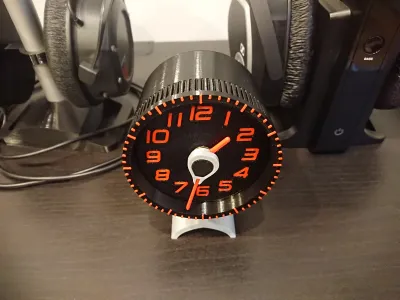

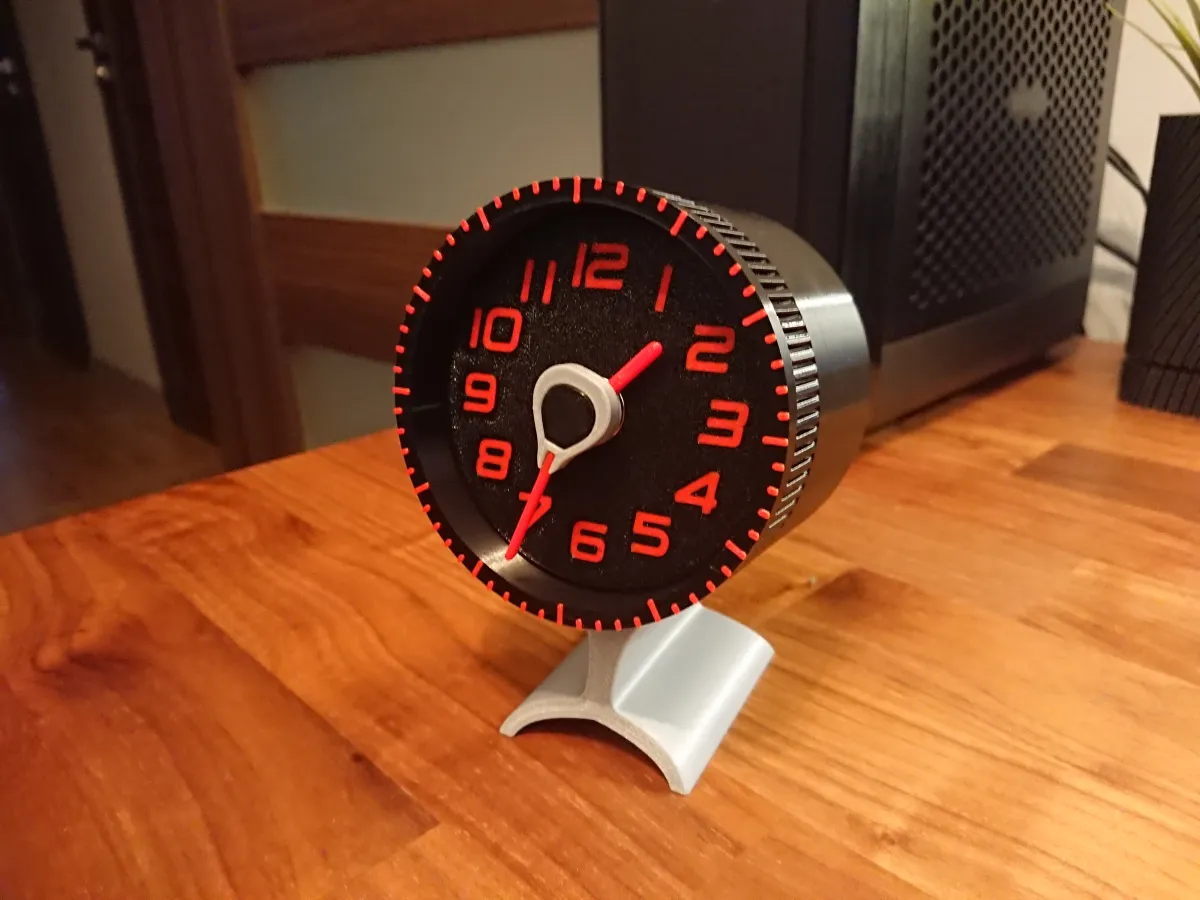

Turbo Gauge Clock - Great and funcional desk decoration.

I was making different clock and at some point I realized that with some changes it will look like custom turbo gauge for your car!Also other plan was to make a nice model without expensive parts. This way I created the clock you are seing here, using not creative kit parts but cheap 5168-S mechanism. How cheap? I found mechanism only, with not hands, for little bit over 1 EURO! Probably from Aliexpress you will get it half price :)

About the model:

9cm in diameter, 9cm long and around 12.5cm high.

It will require AMS/ACE/CFS for multicolor dial print.

Compatible with cheap and widely available 5168-S Quartz mechanism. NOT COMPATIBLE with Bambu Lab Clock Creative Kit.

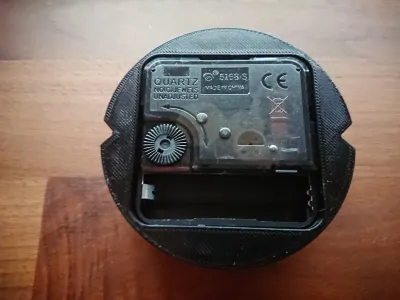

Size of 5168-S mechanism used - 55.8x55.8 mm. Thread 7.6mm (probably M8), hour hand mounting point diameter 5.9mm, minute hand mounting point diameter - 3.7mm. Check last two photos. Some deviations probably allowed. Print clock hands in single color to test it if not sure.

IMPORTANT! - Dial will require painting. Without it all you will see is flat, single color surface! Dial is prepared as multiface part - choose coloring tool from your slicer, switch to "fill" and then zoom over front/back face of the dial and you will see separated areas to color.

How to build this model:

1. Put clock mechanism into dial part. Don’t use rubber washer as all dimensions were prepared without it in mind.

2. Add battery and insert dial inside main body of the model.

3. Insert stand into hole in main body.

4. Add hour arm showing any full hour you found the easiest way to center it (I used „3”).

5. Add minute to show perfectly „00” minutes.

6. Adjust the clock to current time.

7. Close the case with back part.

If you like the model and you want to give it thumbs up, please also consider downloading it. It cost you just one additional click and it’s very important to me. Also check my other models, maybe you will find something interesting :) Thank you!

Happy printing!
