Metric Screw and Nut Gauge Card with Protractor
Print Profile(1)
Elegoo Centauri Carbon - 0.2mm layer, 2 walls, 15% infill'%20fill='%23B3B3B3'/%3e%3crect%20id='Rectangle%201051'%20x='8'%20y='2'%20width='12'%20height='0.5'%20transform='rotate(90%208%202)'%20fill='%23D9D9D9'/%3e%3crect%20id='Rectangle%201052'%20x='11'%20y='2'%20width='12'%20height='0.5'%20transform='rotate(90%2011%202)'%20fill='%23B3B3B3'/%3e%3cpath%20id='Rectangle%201048'%20d='M2%202H14V14H11L10.5%2014.5H8H5.5L5%2014H2V2Z'%20stroke='%23828282'%20stroke-linejoin='round'/%3e%3c/g%3e%3c/g%3e%3c/svg%3e)
1-disc
PLA
Designer5(2)
406
124
Released 2025-08-05

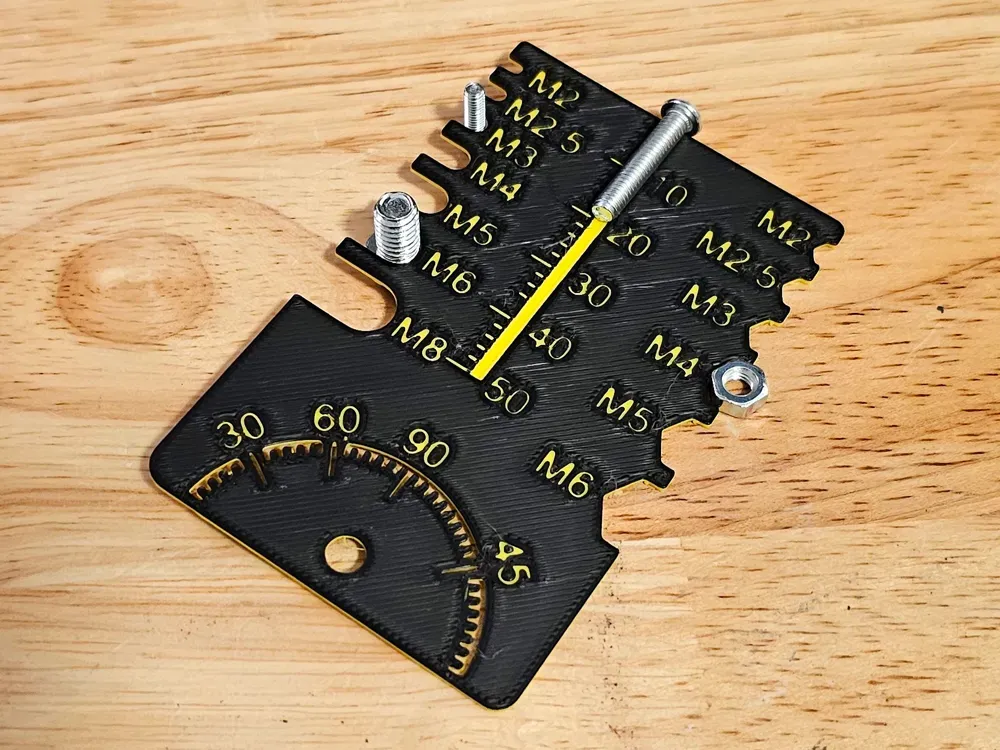

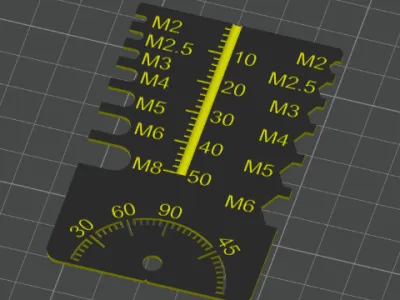

This credit card sized tool allows for measuring of metric screws and nuts, and includes a built in protractor. Additionally, the four corners are marked for filet radiuses between 1 and 4mm.
Print the top 0.4mm in a second color if you would like contrasting labels.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Remixes must be shared under the same license
