Since changing from Arduino to ESP32, I found a very painful problem......

The pin labels of ESP32 series development boards are printed at the bottom!!! Who can stand this!!!

After I pressed him on the breadboard, I didn't know which was which............

Good good, I'll make one for you directly, anyway I want to use ~

after doing it well, I found it was pretty good to look at. I can also take it to my Xiong Haizi as an educational model ~ ~ ~ ~

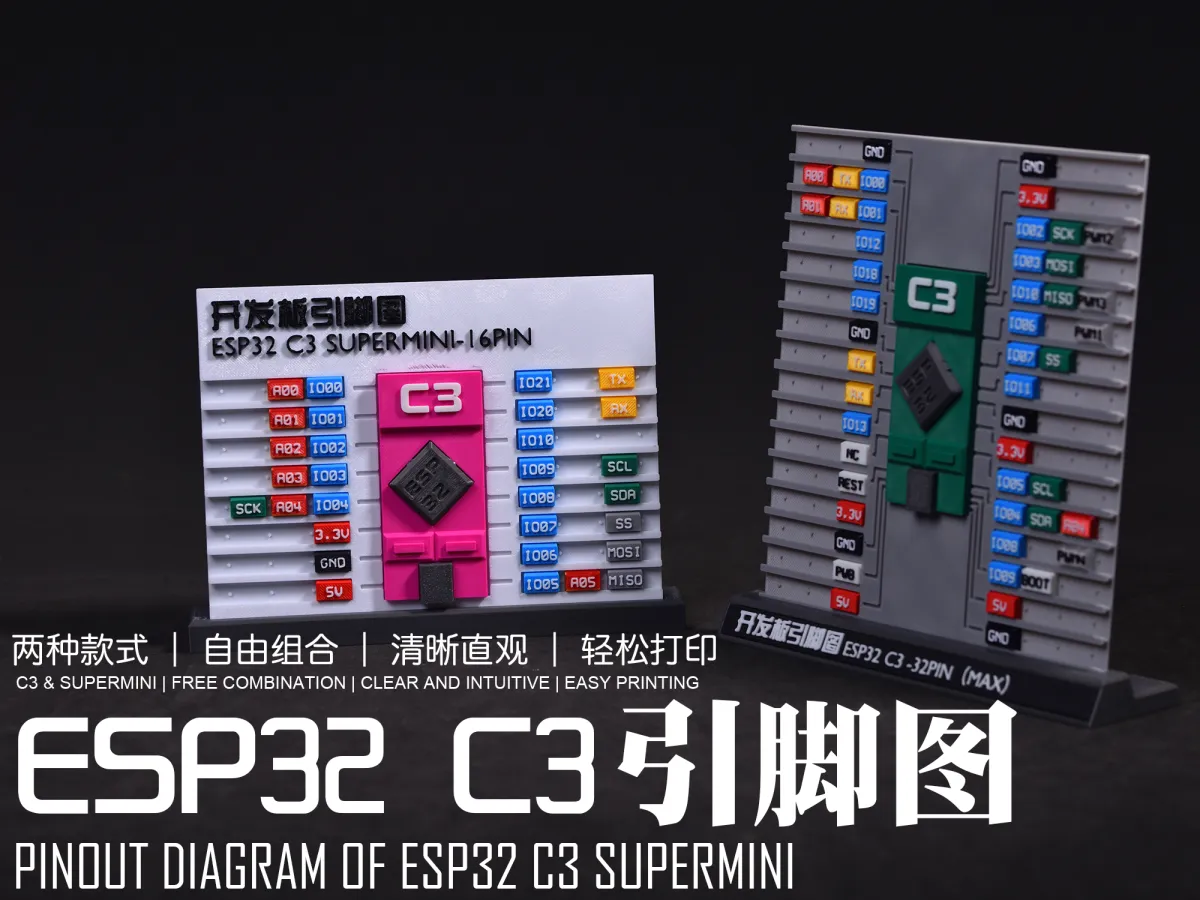

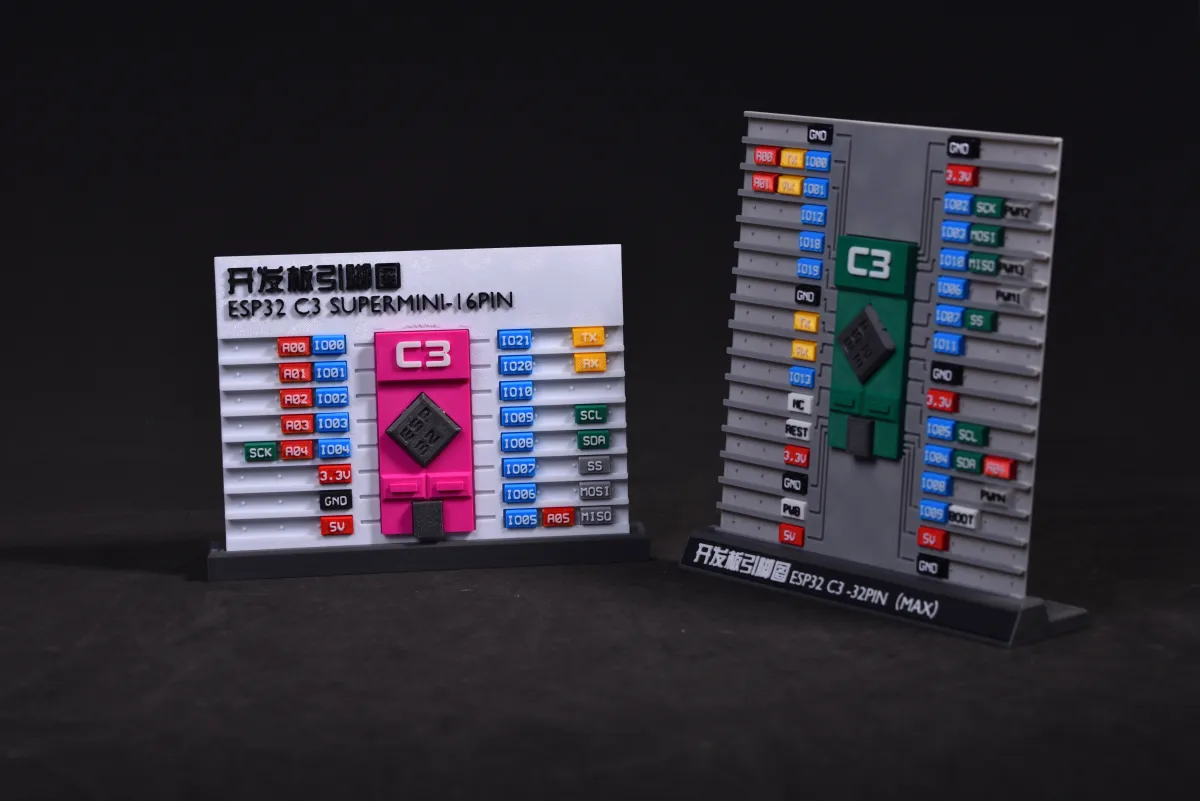

  • Two types of backplane (see printing configuration for details):

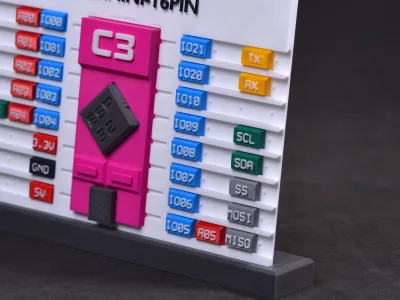

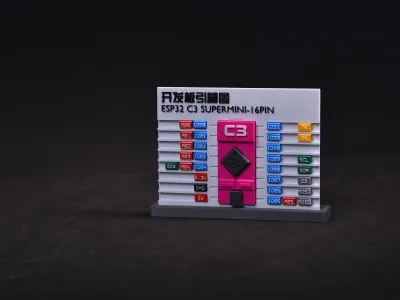

    • C3 SUPERMINI backplane matches ESP32 development board with 16pin and below

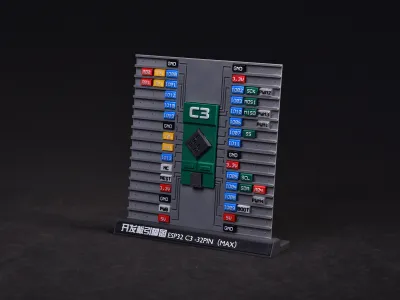

    • C3 baseboard matches ESP32 development board with 32pin/30PIN and below (in theory, SUPERMINI can also be used, but there are too many spare places to look good)
  • slide design for accurate representation of multiplex pins
  • each pin label free combination, can match most different specifications of C3 supermini
  • add a base, which can be placed upright (or without a base, stick it on the wall with seamless glue)
