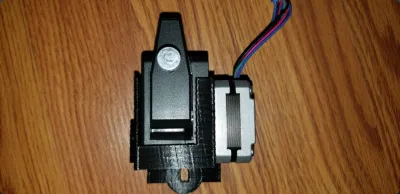

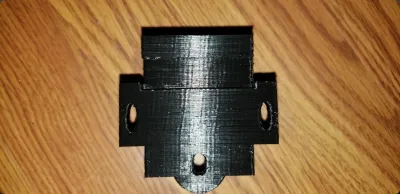

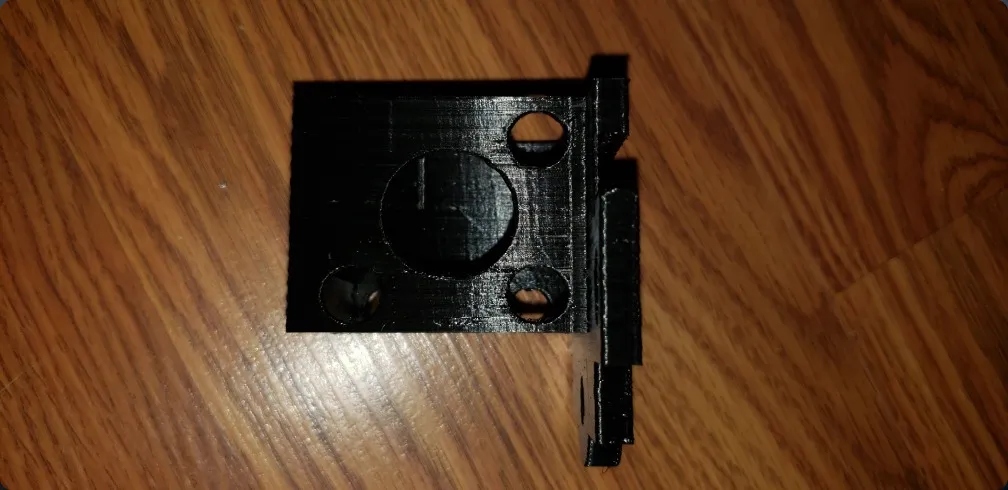

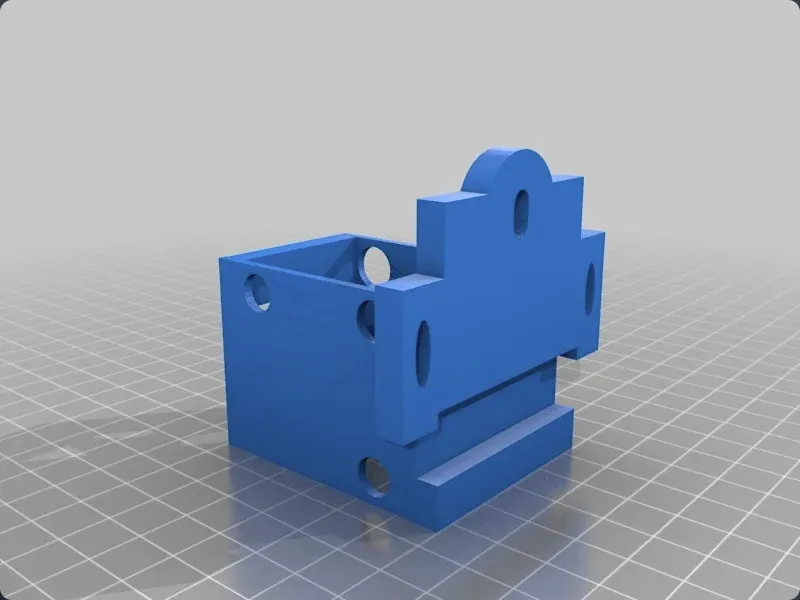

This is a direct drive extruder mount for the Tronxy X5SA. It should fit all bondtech BMG extruders and clones. You can just print and mount, very easy. I used a pancake motor for it but a regular nema 17 should work as well. The holes for the motor screws are large intentionally so that after you mount it you can adjust the angle of nozzle in relation to the bed so that you can get the absolute perfect angle. I also uploaded the 3d design file so that you can remix it as you like.
Originality of the Model
The author declares that this work is their personally shared model
This model is licensed under the following terms:
Credit must be given to the creator
Models(3)
- New_Version.3mf
447.58 KB
2025-07-17
- Tronxy_X5SA_BondTech_Direct_Drive_Mount-NV.gcode
2.95 MB
2025-07-17
- Tronxy_X5SA_BondTech_Direct_Drive_Mount-NV.stl
3.95 MB
2025-07-17
